Replacement coil balance

Question

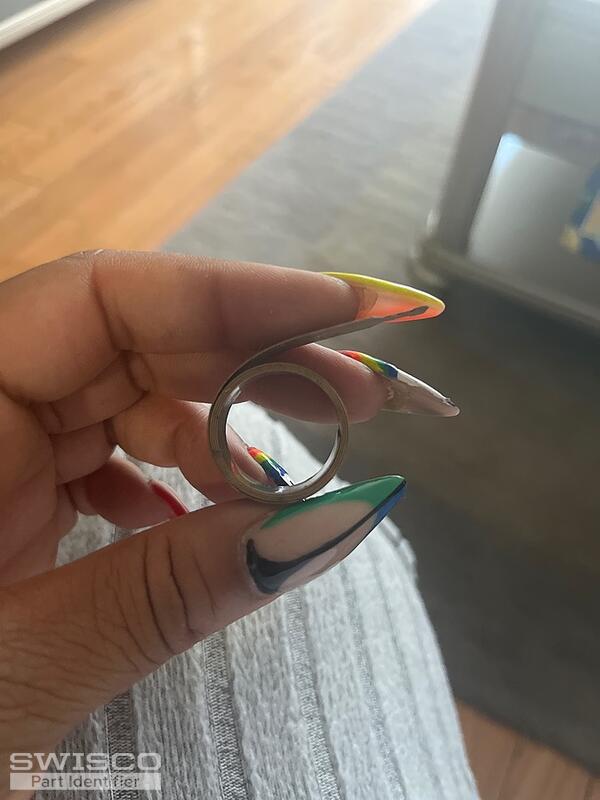

Hi there, looking to replace these parts but I'm feeling unsure of the items I've chosen. Here are some specs:
Shoe: 1/ 1/4 wide and 9/16 thick
Coil: has a #6 on it with a T shaped end
Housing: Is this part needed? If so, what part number?

thank you greatly!!

Casey · Accepted Answer

Hello,

We don't carry your exact pivot shoe, but since the coil springs appear to have the same "T" end as our Series 160, you may be able to convert the window to use our 15-191. If your assembly uses one coil on each side, see the 15-150S support.

As for the pivot bar, I can't be sure of what would work based on a damaged part, but the 26-360 would be a good place to start. This part is compatible with the 15-191 cam, but the placement of the installation holes would be the determining factor. As long as at least one hole matches yours, you should be good to go. Thanks for posting!
