Looking for same type of sliding door lock with key to lock.

A home owner from Rosedale says:
HI Swisco,
I am looking for the Guardian sliding door lock with key to lock and unlock. The picture shown here doesn't has a key to lock from outside. It would be better if you could help me to get a key cylinder only which is fit on this lock or I am happy to buy the whole set that has a key to lock.
This is a write up on the door.
Guardian
Geneva, NY
ANSI Z97,I-2009
16 CFR 1201 II
SAFETY TEMPERED
SGCC 2259 I/8UA
SAN/CGSB-12.1.M

Thank you
Thumbnail of the uploaded file named IMG_2863.jpg
Thumbnail of the uploaded file named IMG_2864.jpg
Thumbnail of the uploaded file named IMG_2865.jpg
Thumbnail of the uploaded file named IMG_2878.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hey there! You could theoretically get our 82-310 to fit in your outside handle, but note that your outside handle only has one position for a lock, which is centered. The thumb lever on your inside handle appears to have a lower position, which isn't compatible with a centered key lock. Does that make sense? In other words, the thumb lever and key lock have to be in the same position.

You may want to consider a new 82-044 outside handle and 82-315 key lock. Then you can mount the key lock wherever it needs to be for your door. We even have a video that shows you how this works. Let me know what you think!

Profile picture of Tom
Tom from SWISCO responded:

These parts are not sold together as a complete unit. These pieces are sold separate and you would have to install them on your door and pre-existing handle.

I apologize if this may cause any inconvenience.

A home owner from Rosedale says:
Thank you for suggestions. From video I have to do some extra work which is fine but I don't have those tools. So, I want to place order 82-044 and 82-315 that comes with together. I mean handle with lock thus I don't have to make hole and cut the piece.
A home owner from Rosedale says:
Hi Tom,

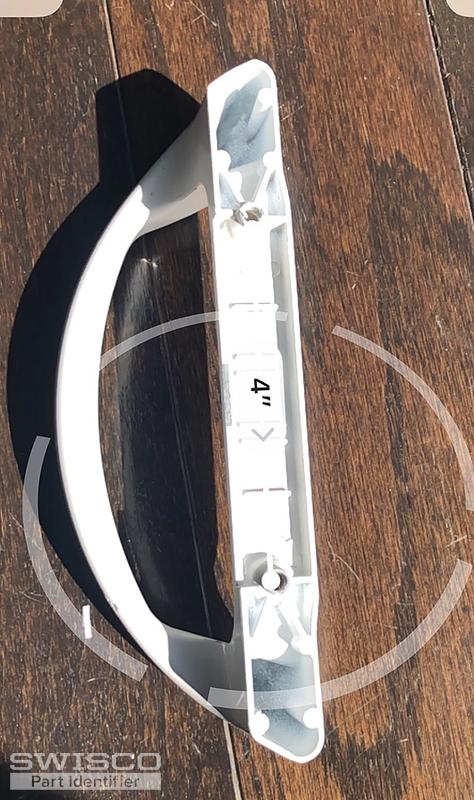

I measure inside handle which is 4" where screw goes but the measurements from outside handle 82-044 is 3-15/16". Does 84-044 handle going to fit inside handle before I place order?
Please refer to picture.

Thank you,
Raju

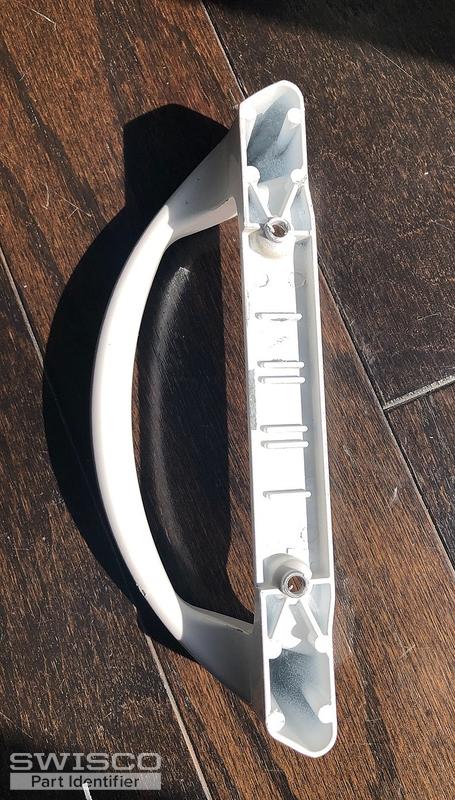

Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named C59EC198-CB6A-497D-B983-26CD150CB4BC.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hi Raju. Are you measuring from the center of each mounting hole? I am pretty confident this is still 3-15/16". Just let me know.

A home owner from Rosedale says:
Hi Bob,

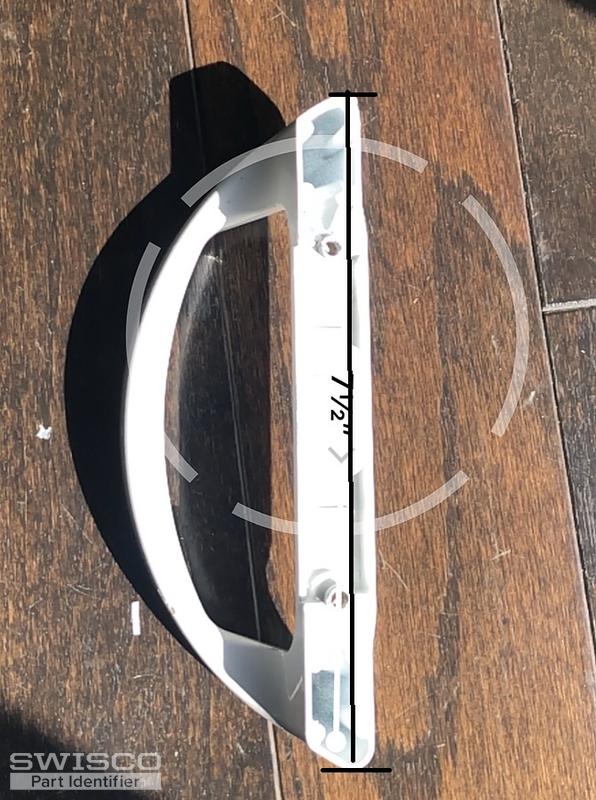

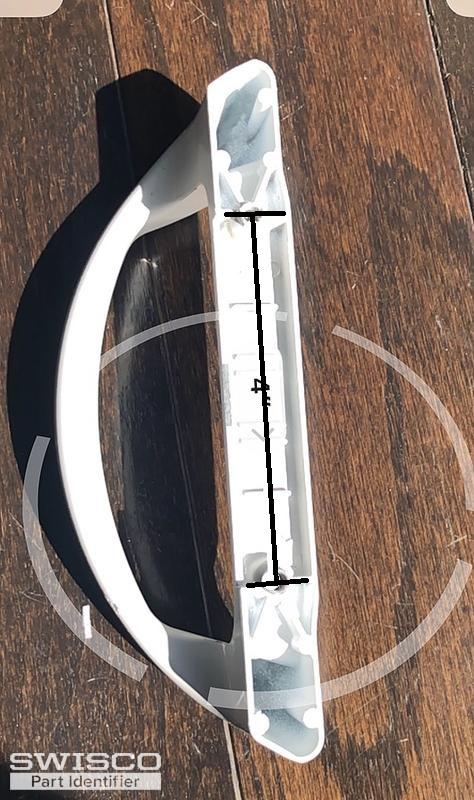

Actually, I did mobile measurement from one mounting point to another which shows 4" and end to end measurement is 7-1/2". If that is 3-15/16" than I will like to order the product. I just want to make sure all the measurements are correct so that I don't have to return the product.
Thumbnail of the uploaded file named 251237.jpg
Thumbnail of the uploaded file named CCB38841-D1EE-4FEA-9FD3-5BF43B5F101E.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for the reply, Raju. To be honest I'm very confident this is 3-15/16" and the 82-044 will work fine for you. Let me know if you have any other questions.
