Looking for sliding glass door replacement rail and rollers

Question

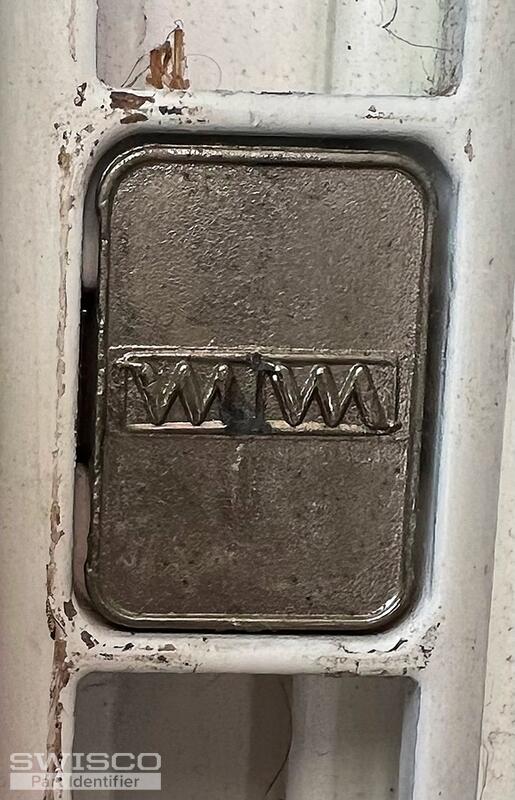

Hi. This is from a sliding glass door built in the 1970's. The door latch plate has a brand stamp, as does the door handle and the screen door handle. There are no other markings anywhere on the glass or frame that I can see. The part in the roller photo is 6" wide from end to end and 5/8" wide. The rail is 91 1/2" long, and it's height is about 11/16" and is about 3/8" wide. It sits in a recessed channel (not a cap). Is there any way you could please help me identify the brand and what parts I need to buy? Thank you very much.

Tom · Accepted Answer

Hello! Your roller looks like a great match for our 81-018. I think this should work as long as the dimensions all match up. I'll share them below. You'll note that ours doesn't have the same metal bracket at the top, so you will need to reuse that. Those rarely break so it should be easy enough to swap out.

Alternate image for 81-018

As for the rail, we don't sell a track cover as tall as yours anymore. We only offer the "short" kind these days, and only in 6' increments. See our 80-102. You will need to buy two and butt them together to read the length required for your door. I am sorry for the inconvenience.
