Looking for the correct stud bracket

A handy person from Greenport, New York says:
July 14, 2020

Hi

I have a stud bracket on this old Certainteed casement window that has rusted.

I see on your sight you have a stud bracket 39-508. Do you think I could get this to work if I cut away whats rusted and replace with this?

Maybe you have a better option for me.

Thank You

Peter

Thumbnail of the uploaded file named IMG_9243.JPG
Thumbnail of the uploaded file named IMG_9247.JPG
Thumbnail of the uploaded file named IMG_9248.JPG

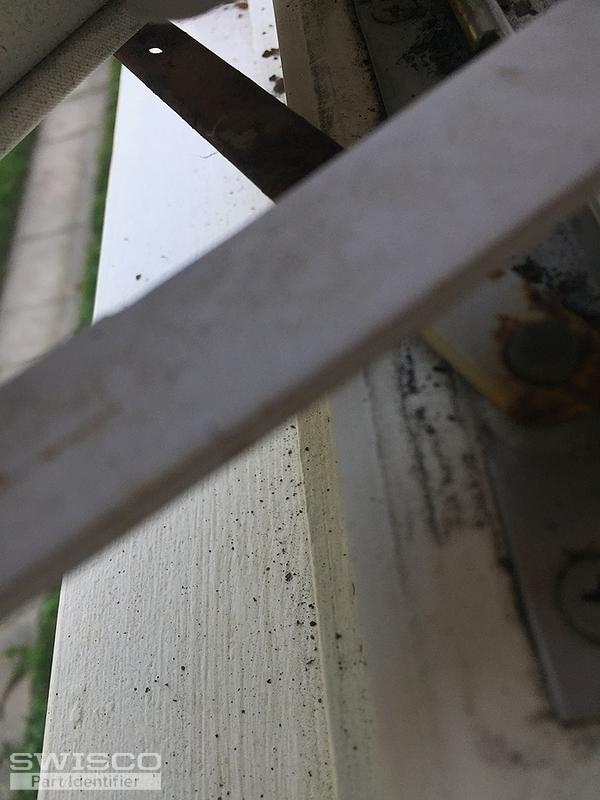

Thumbnail of the uploaded file named IMG_9245.JPG

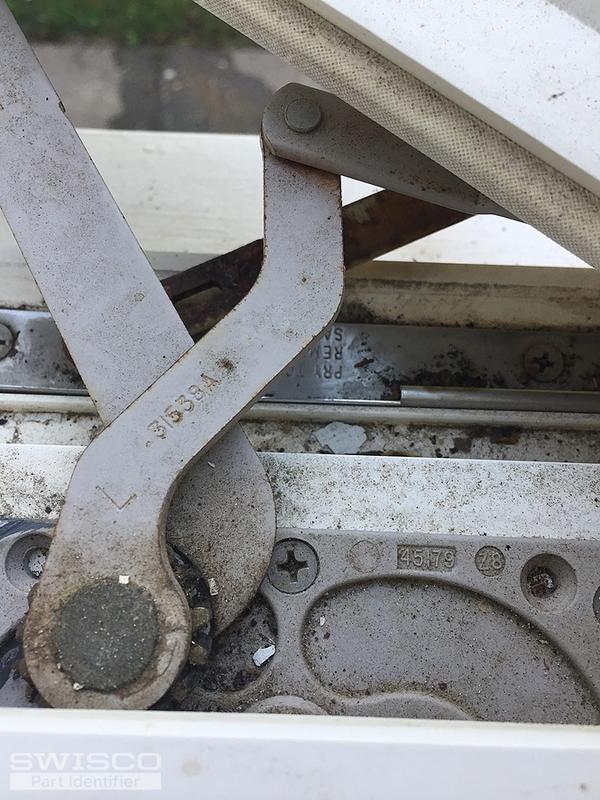

Thumbnail of the uploaded file named IMG_9242.JPG
Profile picture of Tom
Tom from SWISCO responded:
July 16, 2020

Hello, Peter. The 39-508 isn't going to work for you. That rusted part isn't a stud bracket, that's one of the arms from the hinge. That means you need an all new hinge to replace it.

I recommend the 36-048. It's not exactly the same as your original but as long as you replace the top and bottom at the same time then you should be good to go.
Stud Bracket, Neutral
Stud Bracket, Neutral
39-508
$3.47
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
