Looking for this part.

Handy Person from Pensacola Florida

Nov 15, 2022 4:54 pm

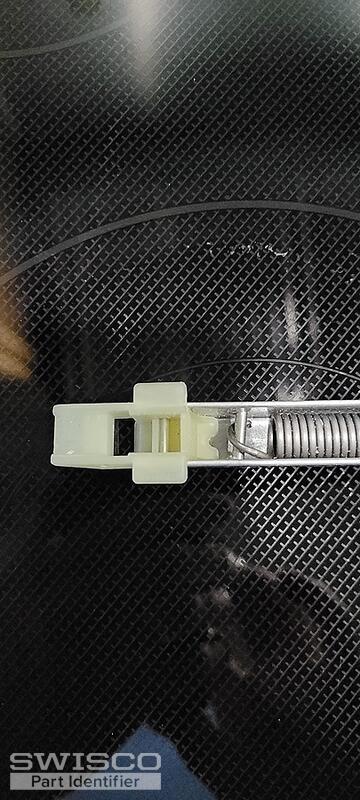

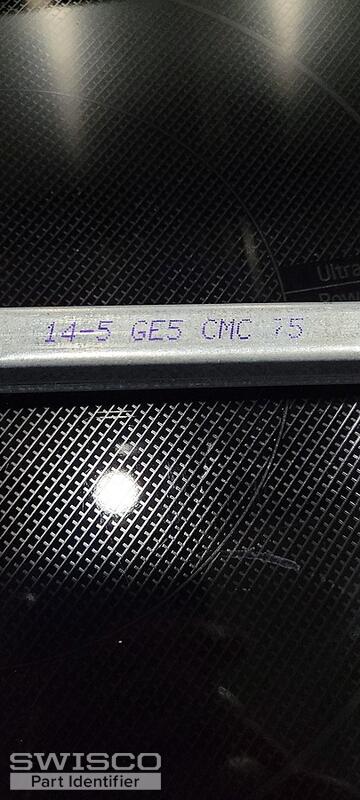

Stamp reads 14-5 GE5 CMC 75 It is laser stamp and the metal is 15inch long. Wings on bolth ends. The window is a Keystone?

Thank you.

5 user uploaded images

4 Replies

Tom from SWISCO

Nov 21, 2022 11:06 am

Thanks for your photos. Based on what I see here, you have either our S380-15 or S385-15, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.

Handy Person from Pensacola Florida

Nov 21, 2022 11:32 am

Ok mine is a 385-15.
How about the Lbs mine is stamped the 14-5 would I order a 1420 or a 1450?
Thinking mine is 5 lbs??

Or the stamp is a shotr version of 1450??

Tom from SWISCO

Nov 21, 2022 12:22 pm

A stamp of 14-5 corresponds to our 1450 option. Two balances with this stamp can carry 13 through 17 pounds, so if you have any doubts you can always weigh your sash on a scale to verify that it falls within that range. As long as it does then you should be good to go.
