Looking for this spring : SWISCO.com

Home Owner from My home

Jul 17, 2024 2:26 pm

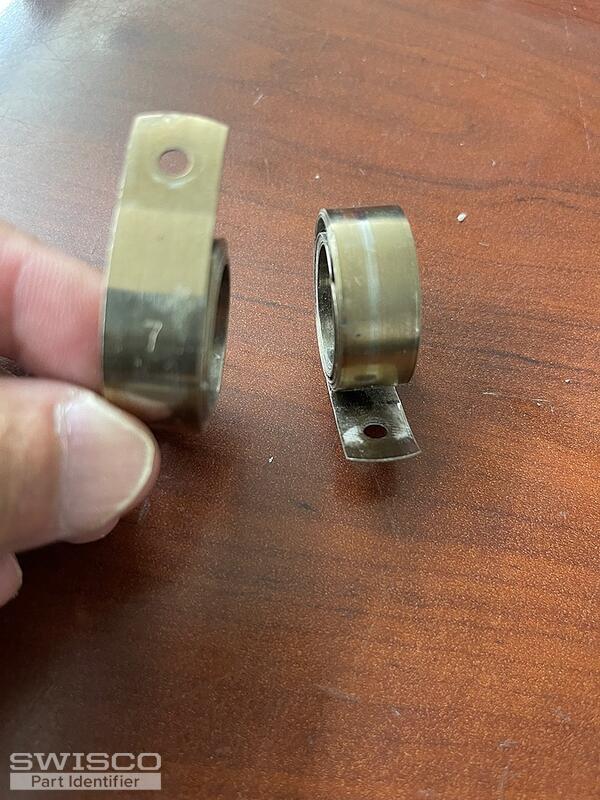

I needed the left and right spring. Window measurements width is 33 3/4 and height is 36
Thanks

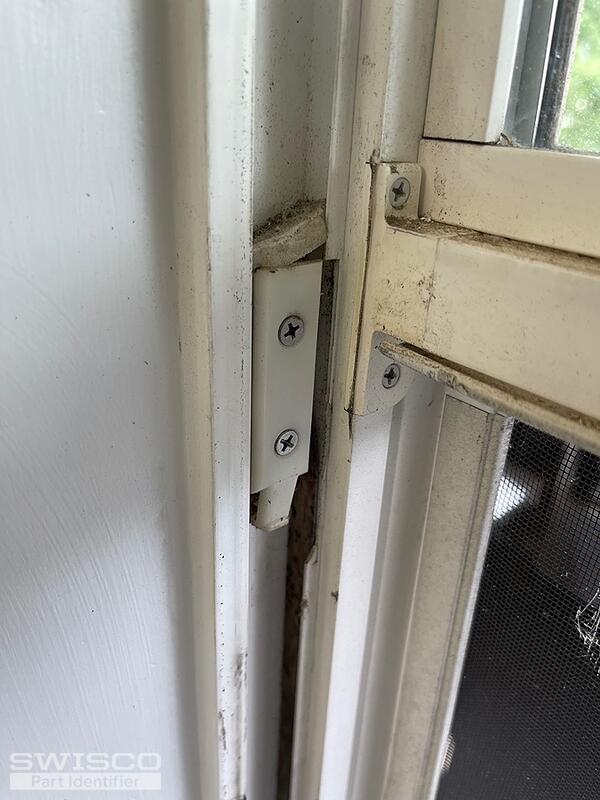

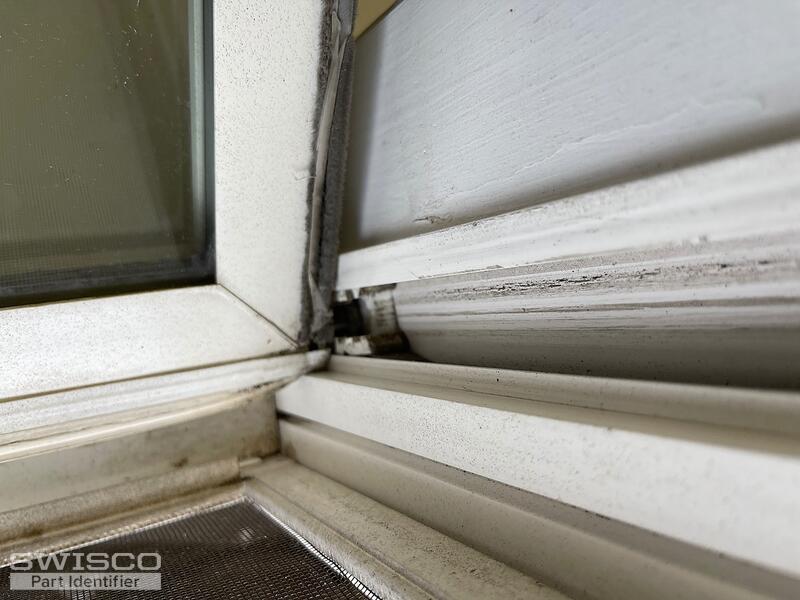

3 user uploaded images

4 Replies

Casey from SWISCO

Jul 19, 2024 12:07 pm

Hello,

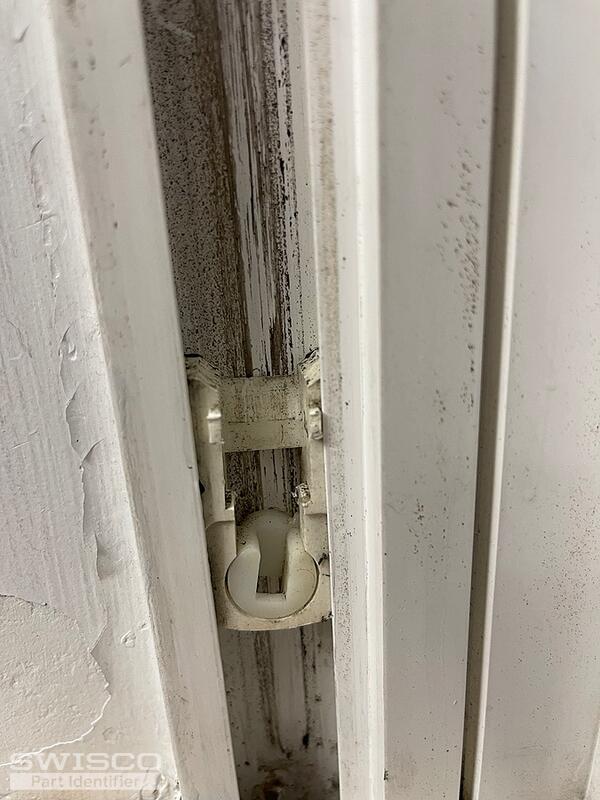

We'd be happy to help but we'll need you to write out the exact thickness of your coil springs to narrow down your options. It would also help to see the pivot shoe shown in your third photo removed from the window jamb. See the videos related on this page to assist you in the meantime. Thank you!

Home Owner from My home

Jul 24, 2024 11:15 am

Hi
As you requested the picture and the spring measurement is 1/2 inches in width. Thanks for your help.

1 user uploaded image

Casey from SWISCO

Jul 24, 2024 11:34 am

Thanks for getting back to us. Your pivot shoe looks like a match to the 15-180 balance shoe, which is used with the 1/2" wide Series 190 coil springs. Your stamp codes would correspond to the S190-740 coils. Review the specifications of these parts and the related items shown on our product pages. Thanks for posting!
