Looking for two replacement window lifts

Home Owner from Santa Margarita CA

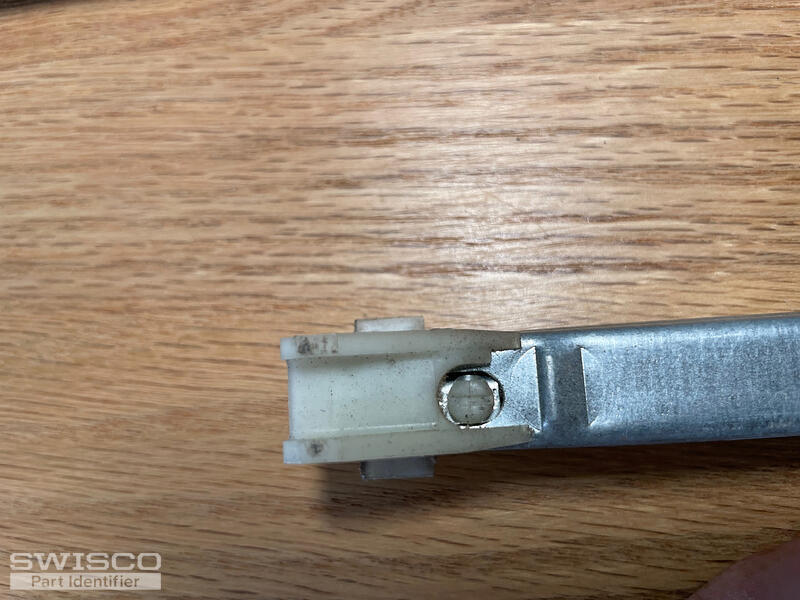

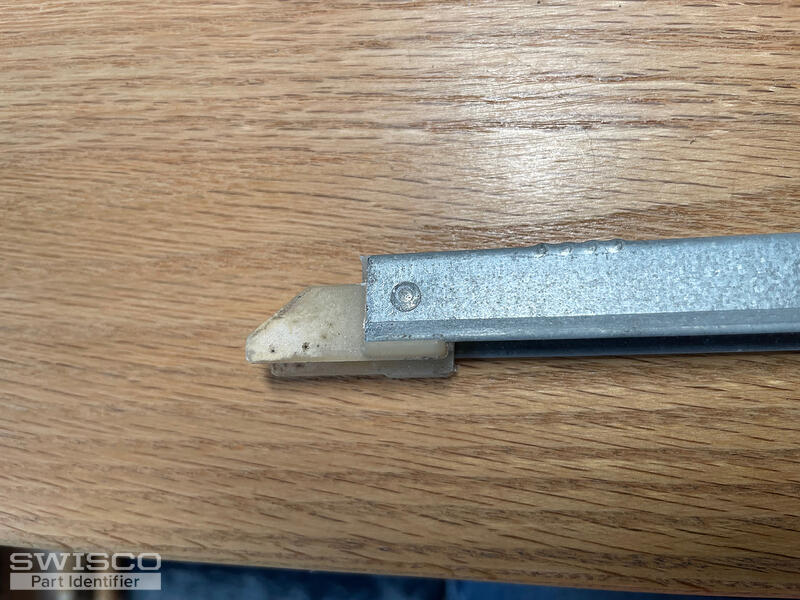

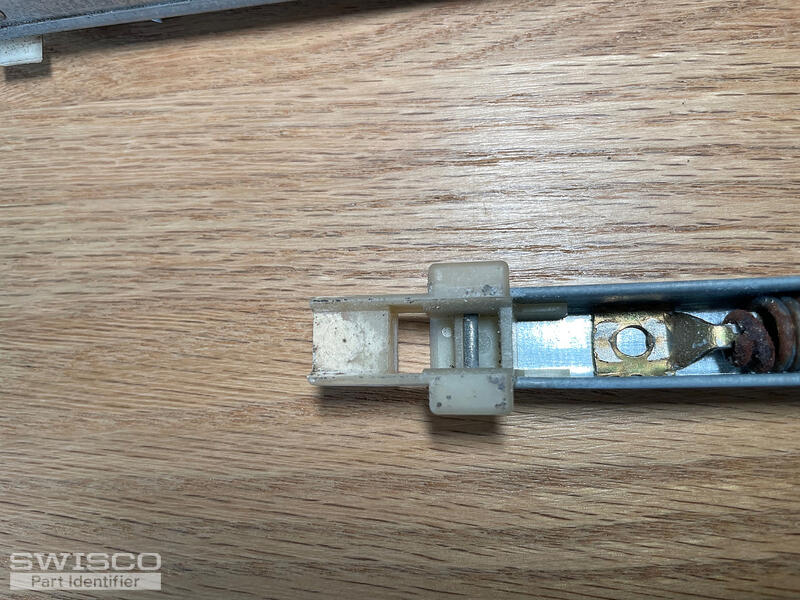

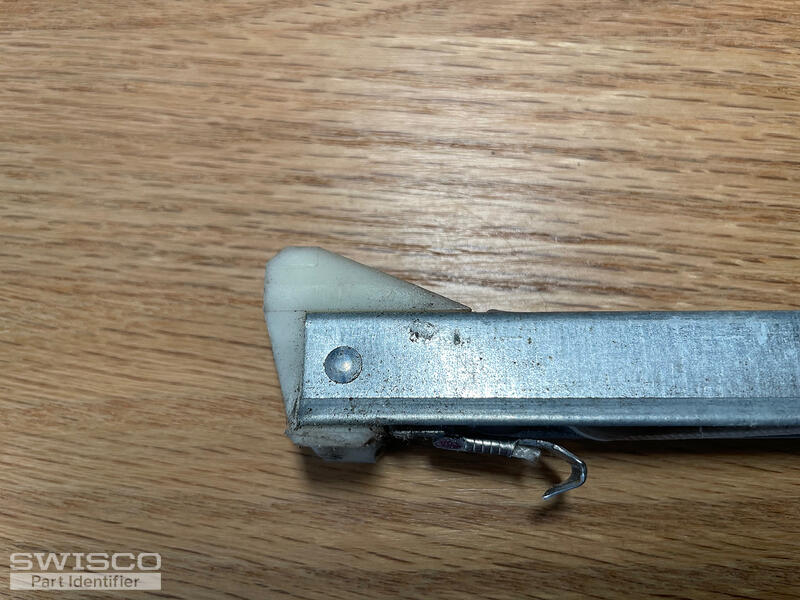

The metal tube is 15 inches long, channel width and depth is 5/8 inch
5 user uploaded images
5 Replies
Home Owner from Santa Margarita CA
Tube Measurements
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! I am confident that we can supply you with the replacement balances you need but I'll need a few more details to confirm the best possible replacement.

To start, may I see a clearer photo of the wheels and the hook at the bottom of the balance? This is important to see to ensure we are providing your with the exact replacements you need for your window. You'll also need to confirm the depth of the bottom shoe; I suspect that it could be either 1" or 7/8". Take a look at the diagram below to confirm.

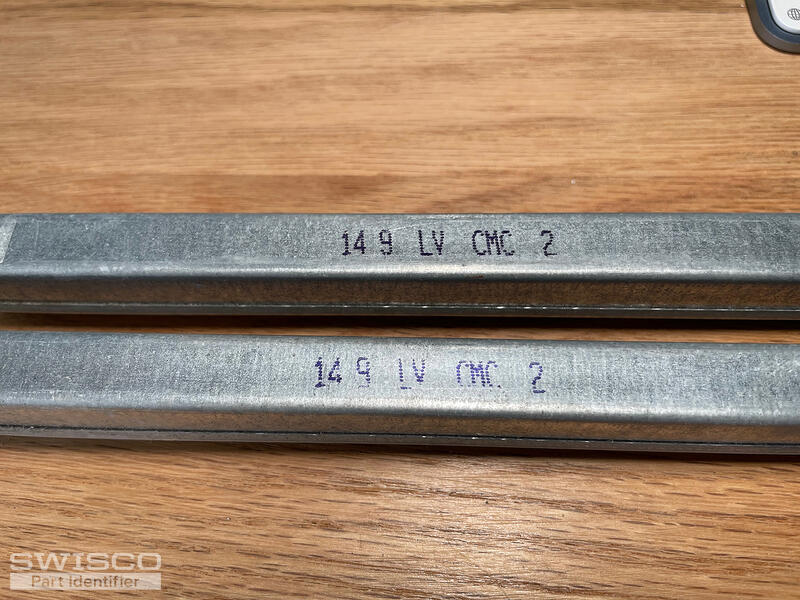

I will also need to know the exact weight of the sash these balances would be supporting. Unfortunately, we would not be able to cross-reference your 14 9 stamp with our stamp system.

Profile view of a winged balance attachment
Profile view of a winged balance attachment

Please let me know if you have any questions.

Home Owner from Santa Margarita CA

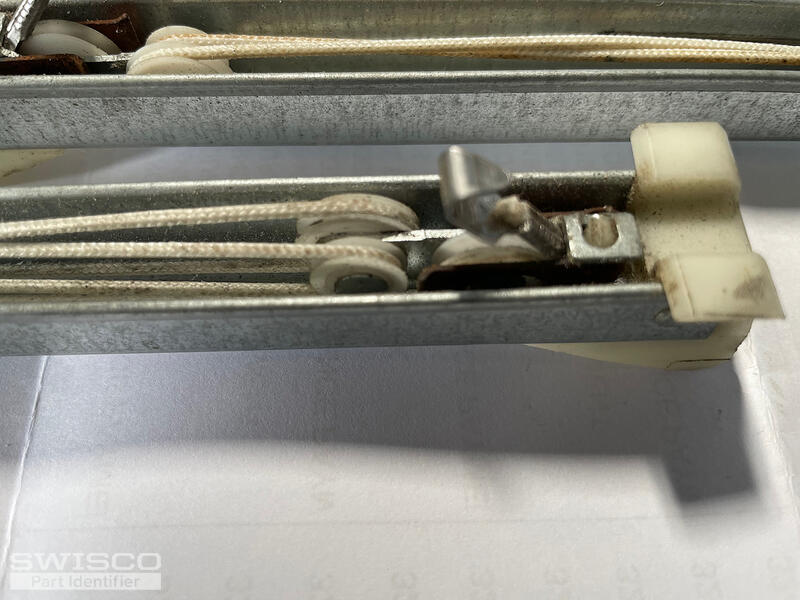

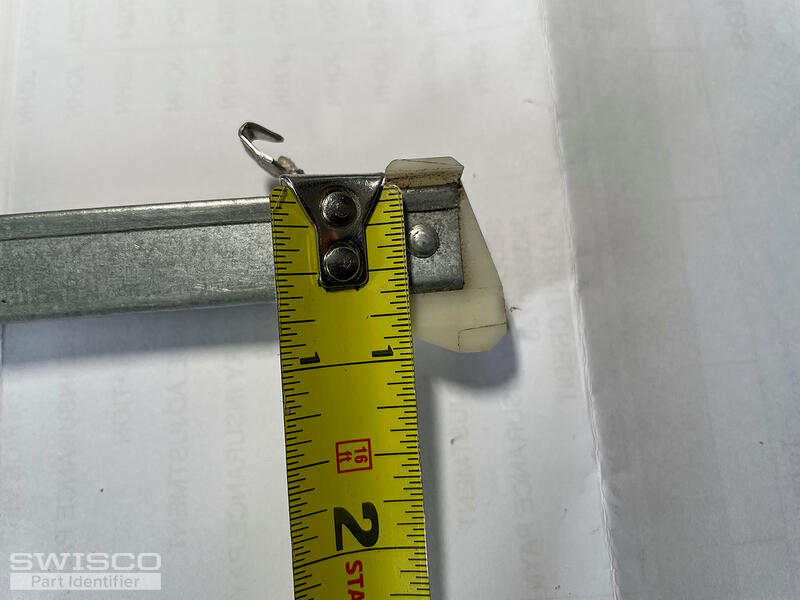

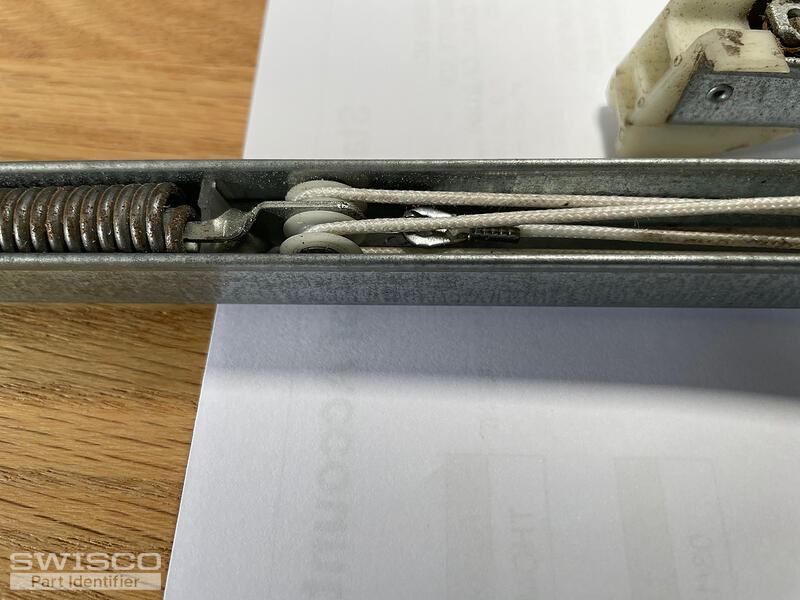

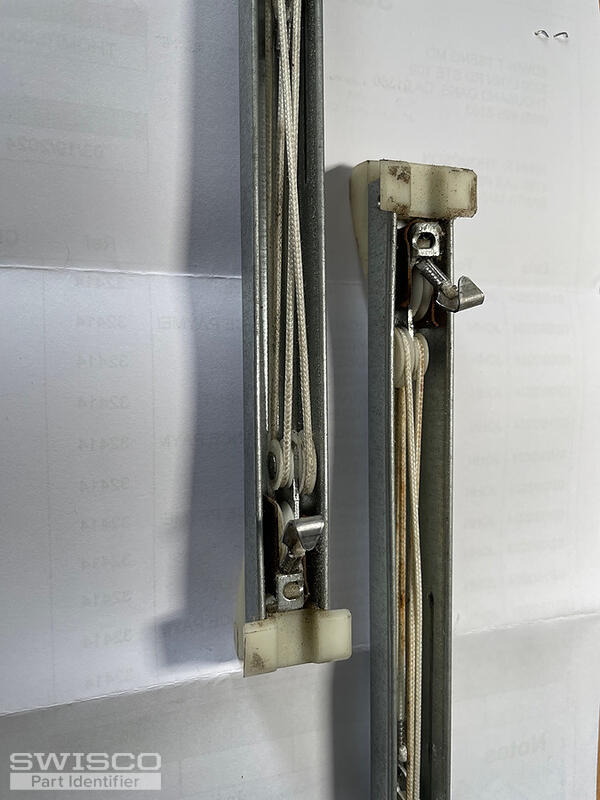

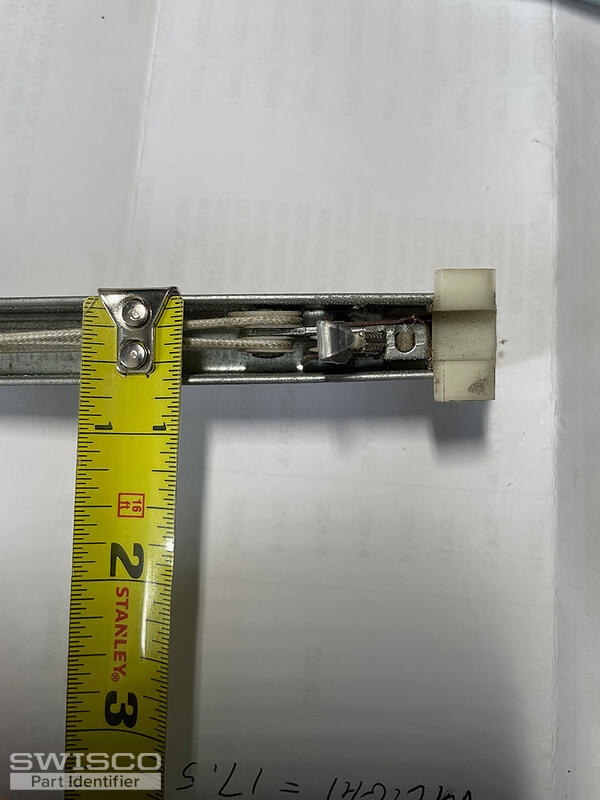

Thanks Jasmine - The window sash weights 17.5 Lbs and I have attached pictures of the depth of the bottom shoe which looks to be 1 in. Also I have attached pictures of the hook/wheel assembly.
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming this information. I've forwarded a link with a quote for (2) of the requested balances. Based on the photo of the shoe dimensions you've provided above, the replacement will have a winged shoe slightly over 1".

Also, since you've confirmed that your sash weighs 17.5lbs, These balances will now have a 14-5 Stamp which can support a sash weighing 13 to 17.99lbs.

You'll be able to use the provided link to review the quote and place the order from your online cart.

Please let me know if you have any questions.
