Looking to Replace Broken Window Crank

Handy Person from Bedford, CO

Mar 30, 2025 8:08 am

The house was built in 1990, and the window crank for this Peachtree window is broken and needs to be replaced. I’m looking to figure out which parts I will need.
Thank you.

3 user uploaded images

4 Replies

Bob from SWISCO

Mar 30, 2025 11:34 am

Hello there. We may be able to help, but I am afraid we can't identify the operator from the base alone. We need to entire mechanism, including the arm(s) that push and pull the window. A bird's eye view, with either the operator removed from the window or at least with the window open, should suffice. We'll do our best to help from there.

Handy Person from Bedford, CO

Mar 30, 2025 4:08 pm

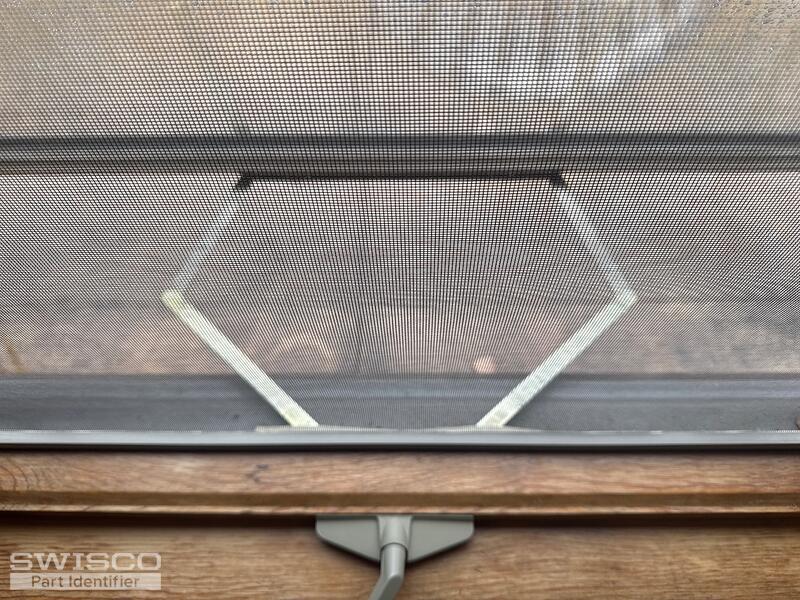

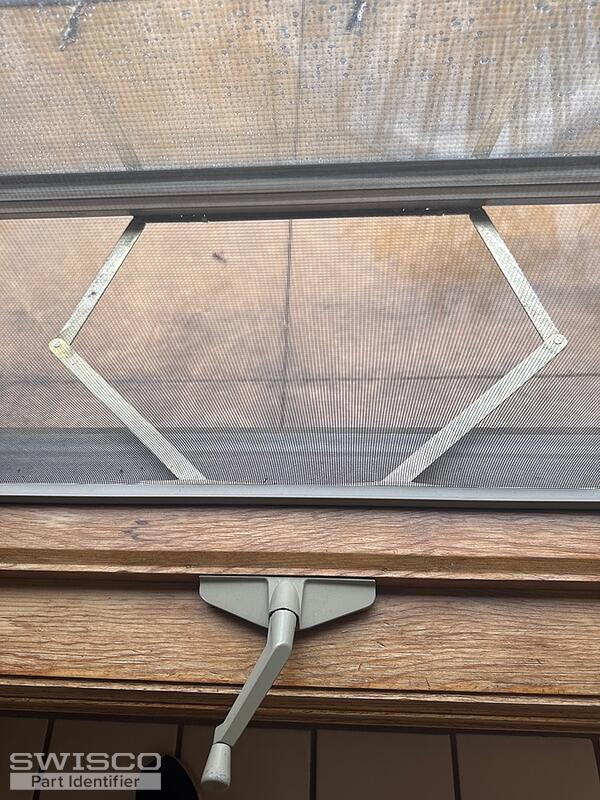

Here are a couple images from another window that we believe has the same mechanism. Please let me know if this is enough or if we need to remove the frame from the broken window for a better look.

2 user uploaded images

Bob from SWISCO

Mar 30, 2025 9:34 pm

Perfect, thanks. I think this is a 39-015 Awning Operator. Please compare. For a new handle, see the 39-114L sold separately.

Detailed drawing of the 39-015 awning window crank operator
