Looking to replace window handle that can fold

Home Owner from Carmel IN
Jan 13, 2022 5:16 pm

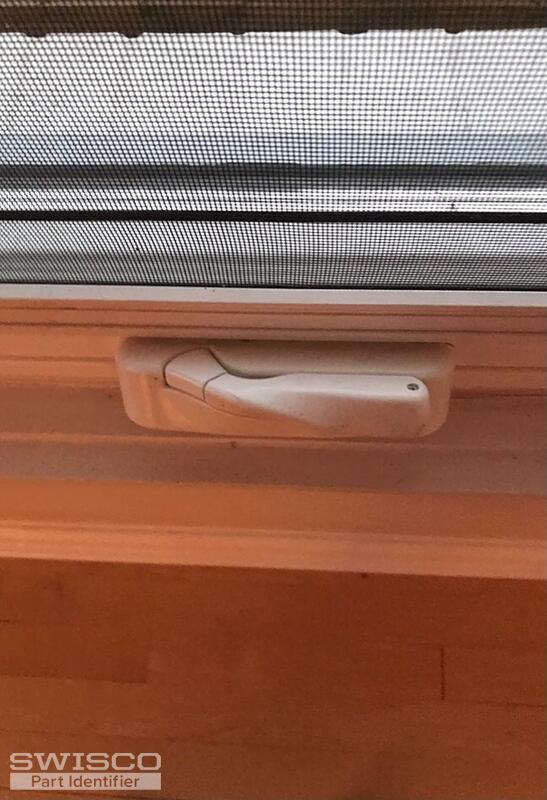

Looking to replace it with folding closure like thie first picture
14D2A5D8-77D8-4C9C-8D86-1A74504FBD16 C1D147F1-19BA-4094-B43F-05D81D30BD58 3DC927D0-87CA-48E1-88A0-A74312991BFE EFCA99BB-9035-4877-9264-236496816555
4 user uploaded images
3 Replies
Casey
Casey from SWISCO
Jan 14, 2022 11:27 am
SWISCO
EXPERT

Hello,

I see that the photos of your older hardware have a centered handle, which the holding handle in your last photo has a handle that mounts on the right side. If you could open the windows and show us the arms that move the sashes of both operators, we'd be happy to confirm which parts would be compatible for both assemblies. Thank you!

Home Owner from Carmel IN
Jan 14, 2022 2:13 pm

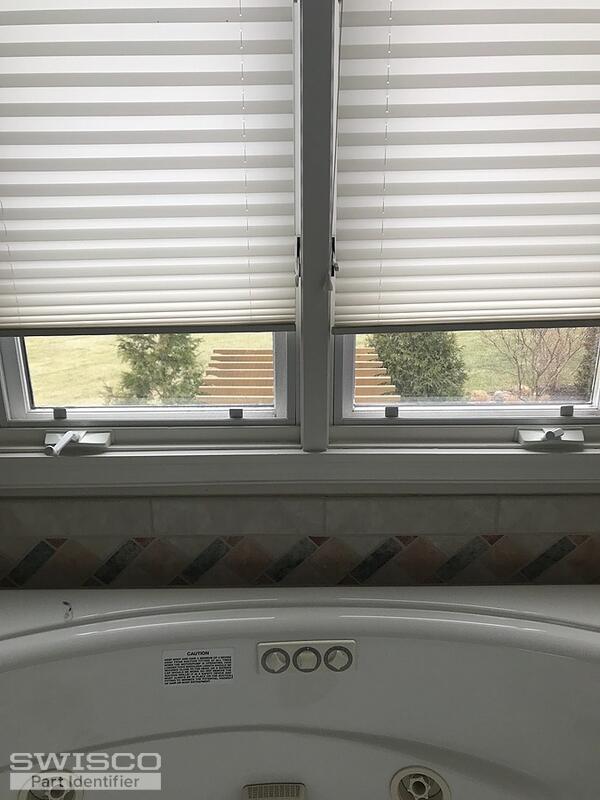

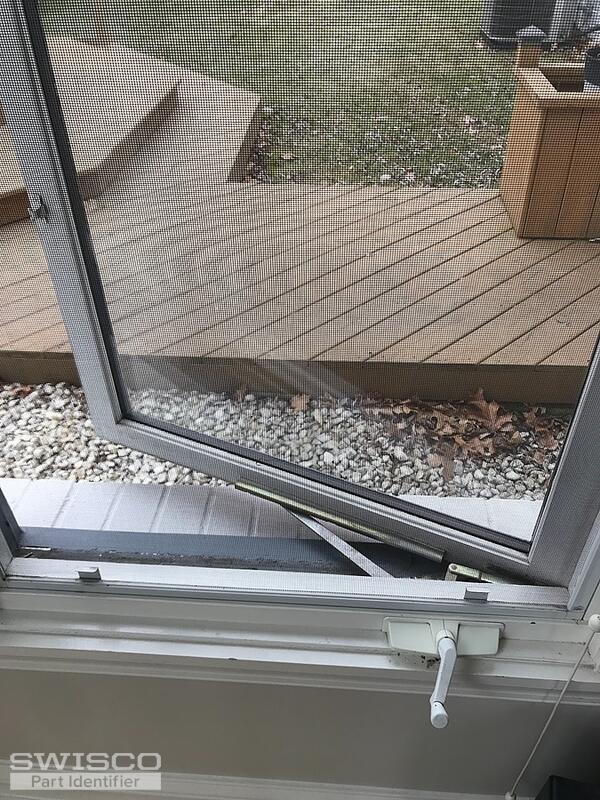

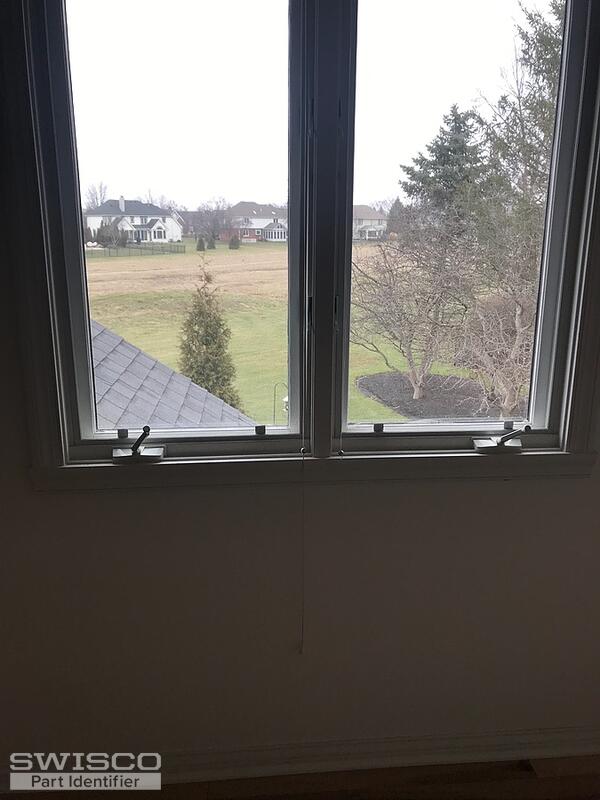

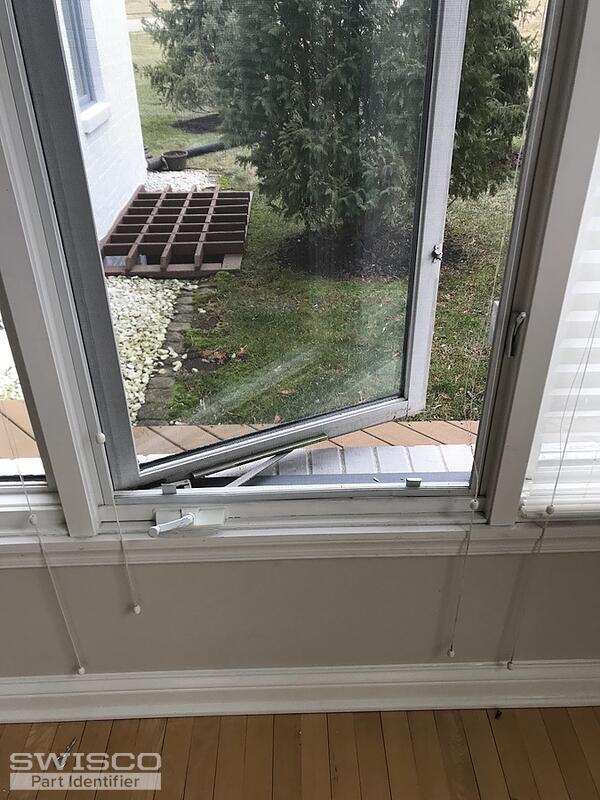

Yes I noticed the windows that we need to replaced with folding handle are in the center.. I've got 16 windows that we need to have the handles replaced..will attach some pics.
Counted 8 opens left 8 opens right.
Hope you can help me choose the right type for our windows.
Thanks
1ADEAA04-0C0C-41AF-9D4B-C1FB172BF11B F4D8C67E-2360-40AD-B156-66C943EB5A12 35E0C0F6-43EF-4595-93DD-0C944091ED2D 752CFD04-0629-4A9A-97B8-ACF4EE17EECC
4 user uploaded images
Casey
Casey from SWISCO
Jan 14, 2022 2:54 pm
SWISCO
EXPERT

Your operators with a centered spline would use the 39-107FK handle and cover kit. Take a look and let us know if you need anything else. Thank you.
