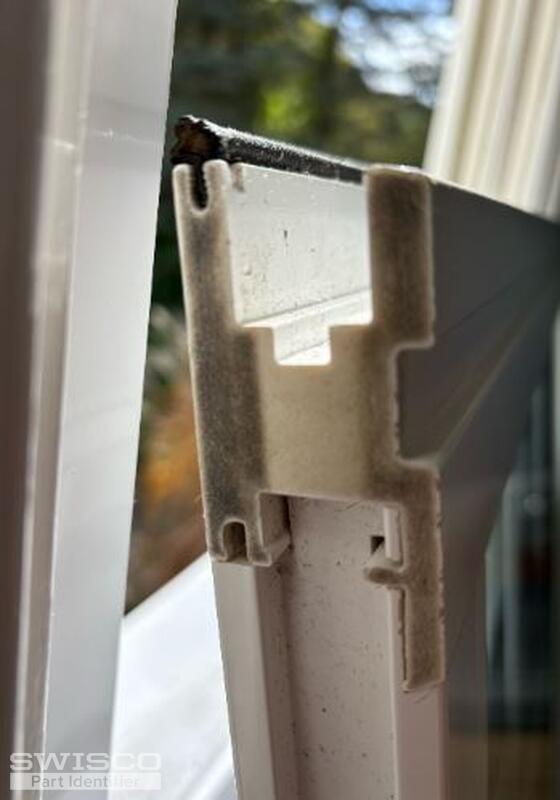

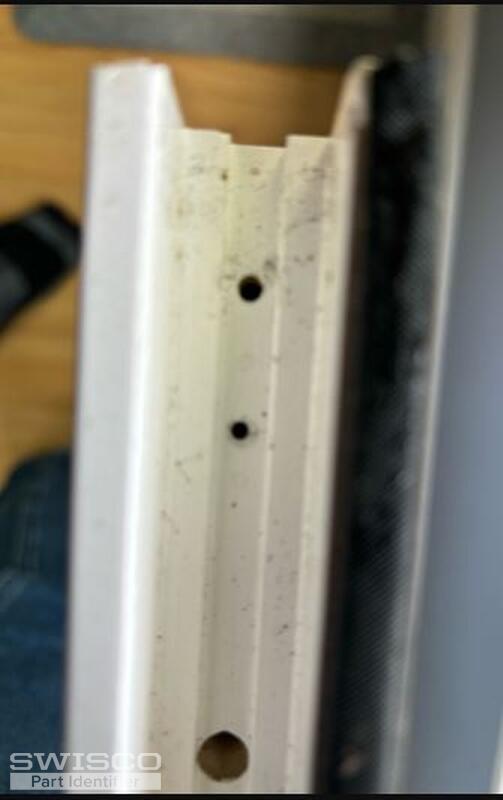

The part that is needed is to replace two broken lower pivot bars - the pic I sent is a broken bar that I taped but is broken between the two mounting holes
I took two more pictures one of the shoe from the broken window and one from a shoe with a window with intact pivot bars. Hopefully this helps.
Lower pivot bar replacement pics
Quick Learner from USA
Oct 1, 2024 9:46 am
5 user uploaded images
5 Replies
Quick Learner from USA
Oct 1, 2024 9:57 am

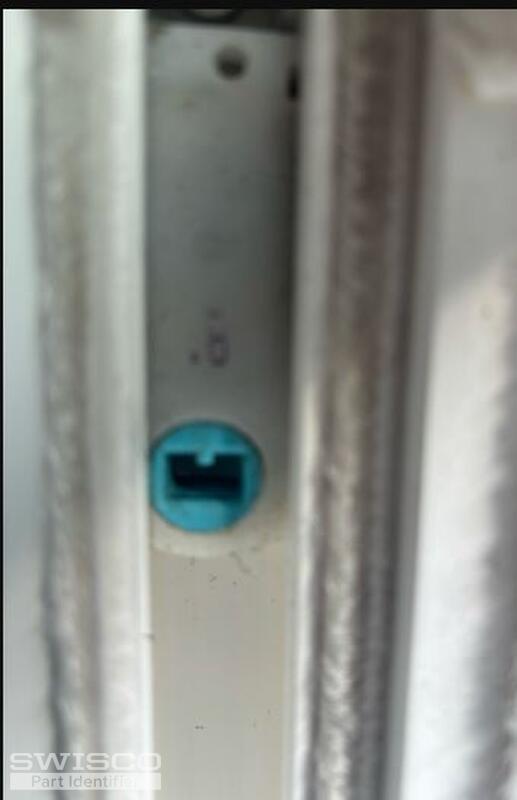

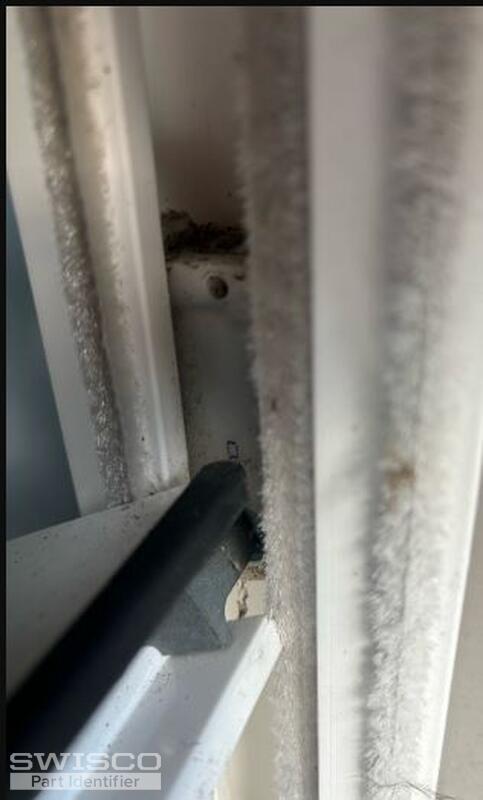

Pivot Shoe photos. Thank you.
2 user uploaded images
Casey from SWISCO
Oct 4, 2024 8:49 am
Hello,
Your coil balance housing pivot resembles the 15-087 but I don't recognize your pivot bar at first glance. I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available. Thank you!
Detail of 15-087
Quick Learner from USA
Oct 4, 2024 10:52 am
Thank you
Paul from SWISCO
Oct 8, 2024 9:30 am
Unforutnately, we were not able to locate a match for your offset pivot bar. With that being said, you may be able to substitute your broken pivot bar with a straight bar without compromising the window sash performance. Take a look and review the specifications of the 26-422 pivot bar shown below.
Alternate image for 26-422
Alternate image of 26-422
