Lower sash pivot tilt bar and roller

Home Owner from USA

Aug 22, 2016 9:20 am

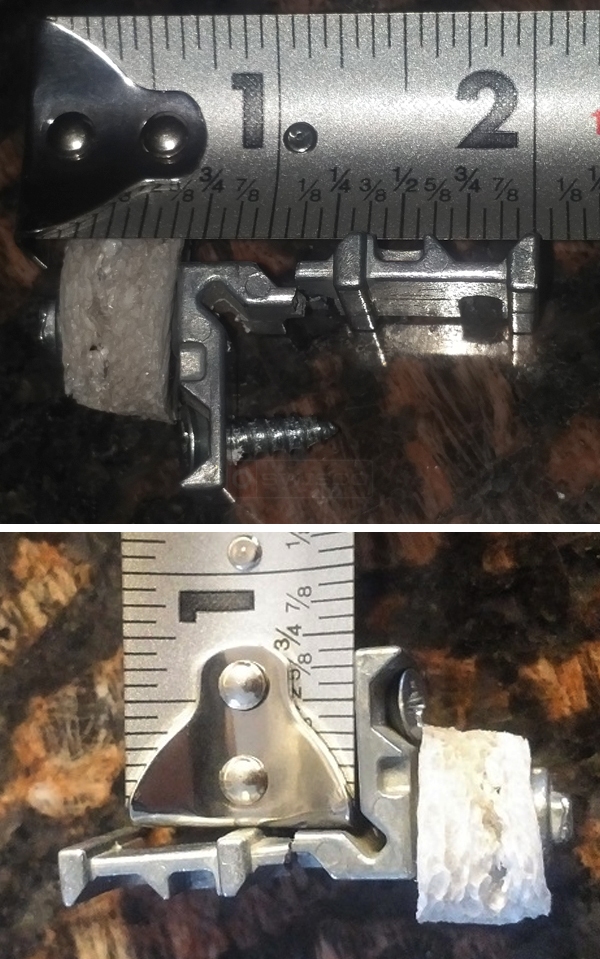

Attached, please find pictures of a vinyl window pivot tilt bar with foam roller. I was unable to find these in your online cataloged. Do you have a replacement?

4 Replies

Paul from SWISCO

Aug 25, 2016 8:46 am

Thanks for posting. I believe that foam roller you mention came out of the pivot shoe in the window track. The pivot bar itself is a separate part. Are you able to remove the rest of the pivot shoe? If so, I'd like to see it so that we can identify both parts.

Home Owner from Virginia, MN

Aug 26, 2016 7:53 am

No, the shoe is in the track on the side of the window. This is a solid piece with a 90 degree angle and a n extension to the side that holds the roller. The shoe is slotted and is perpendicular to the floor when the window is removed. The shoe rotates and is parallel to the floor when the window is in place

Paul from SWISCO

Aug 29, 2016 12:34 pm

The closest match we have appears to be the 26-175, but I'm not sure how well it would fit. Is there any way you can still show us a few extra pictures? I'd like to see where this pivot bar installs, as well as the shoe it interacts with.
