Lower sash tilt PIN number 23145

A quick learner from Howell NJ says:
Looking for replacement parts for 3 windows

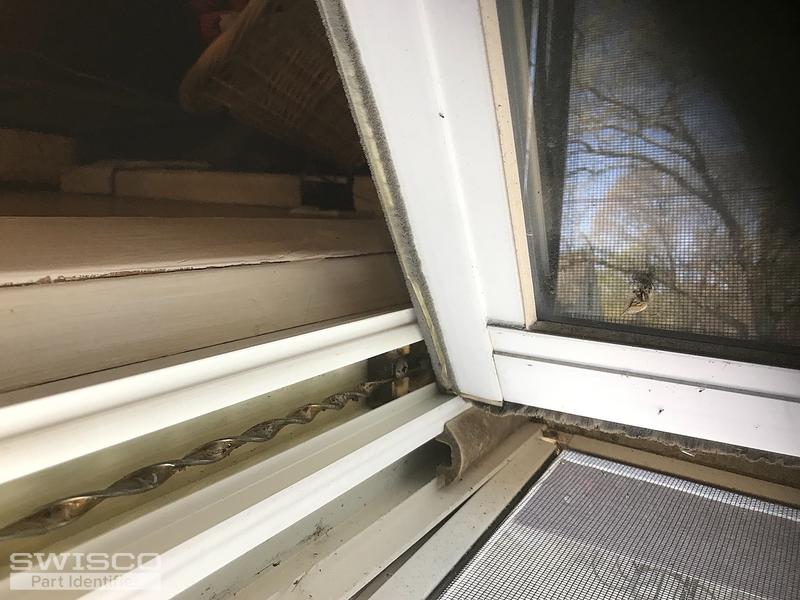

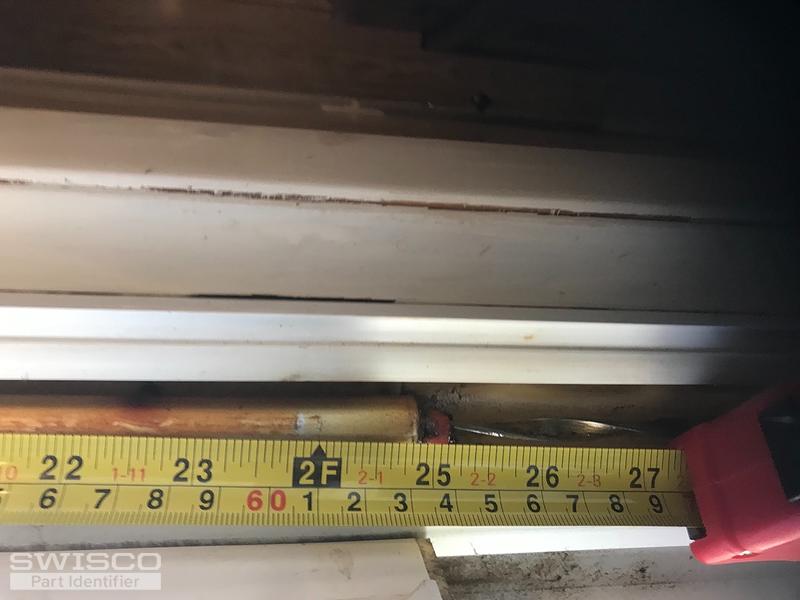

One in kitchen with no balances and two double hung with 25" red tipped spiral balances
Thumbnail of the uploaded file named 73D94C0B-0054-45FE-8E90-5668E3353DE0.jpeg
Thumbnail of the uploaded file named 732A2B92-51F9-4EA3-9F18-CE4544A6F42F.jpeg
Thumbnail of the uploaded file named C098956E-33E1-4881-B452-CE4EFD61DE96.jpeg
Thumbnail of the uploaded file named 2FC9739B-C025-4DD6-A757-1A7206C83D05.jpeg
Thumbnail of the uploaded file named B7A7191B-1CFA-431B-9A5F-AA58DEE1D652.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have quite a situation on your hands. One of your windows seems to be using hardware similar to our 26-021 pivot bar and 15-228 pivot shoe, which works with our S160 1/2" thick Coil Springs or the S165 3/8" thick springs.

The other photos show a window using a spiral balance and an entirely different pivot shoe  We'll need to see the spiral balance and the pivot shoe that it attaches to removed from the window to identify the correct replacements. We'll also need to know the diameter of the spiral balance tube. Thank you!
