M I window balance springs

A quick learner from South Carolina says:
February 15, 2023

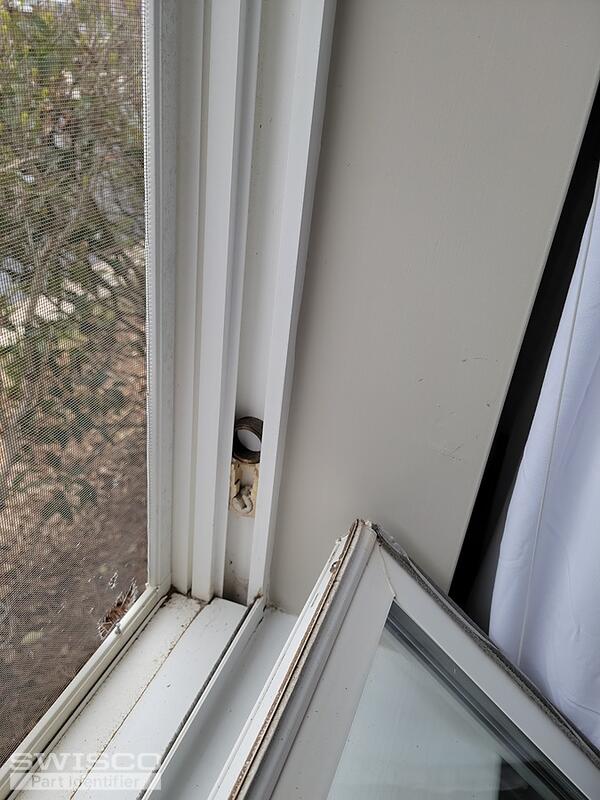

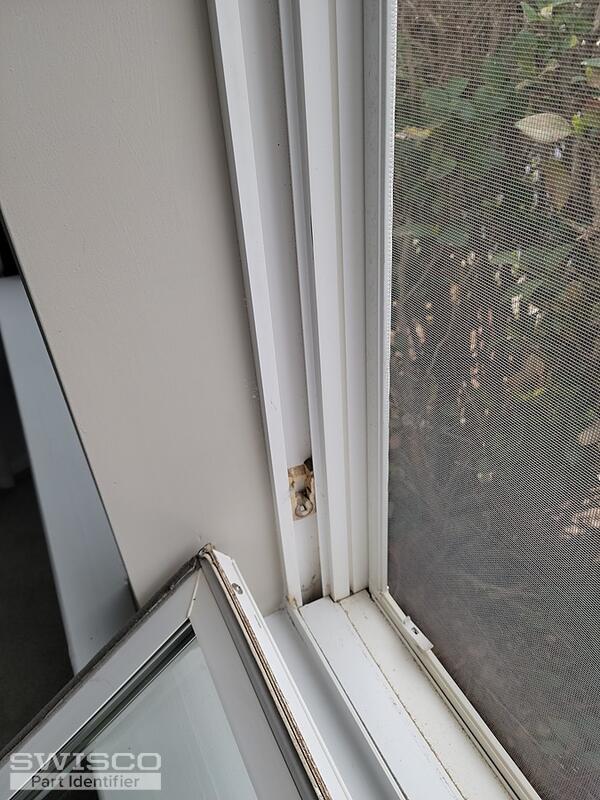

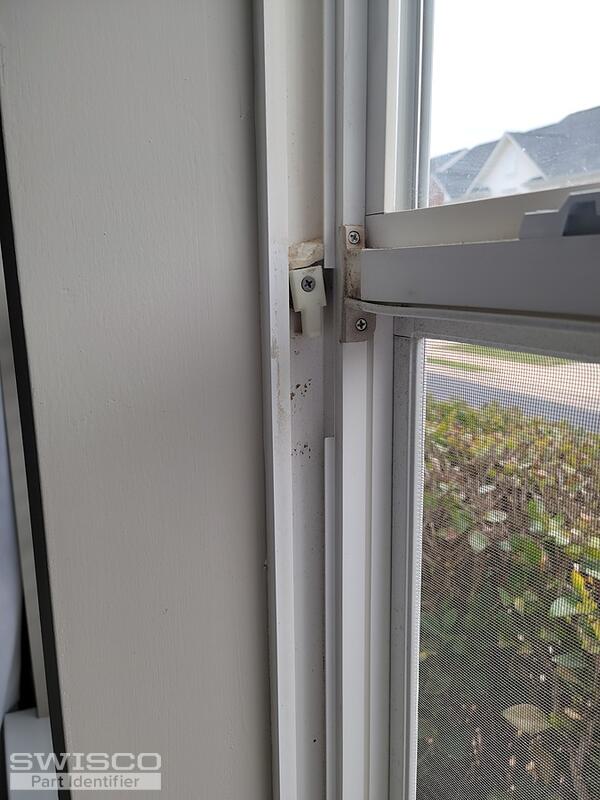

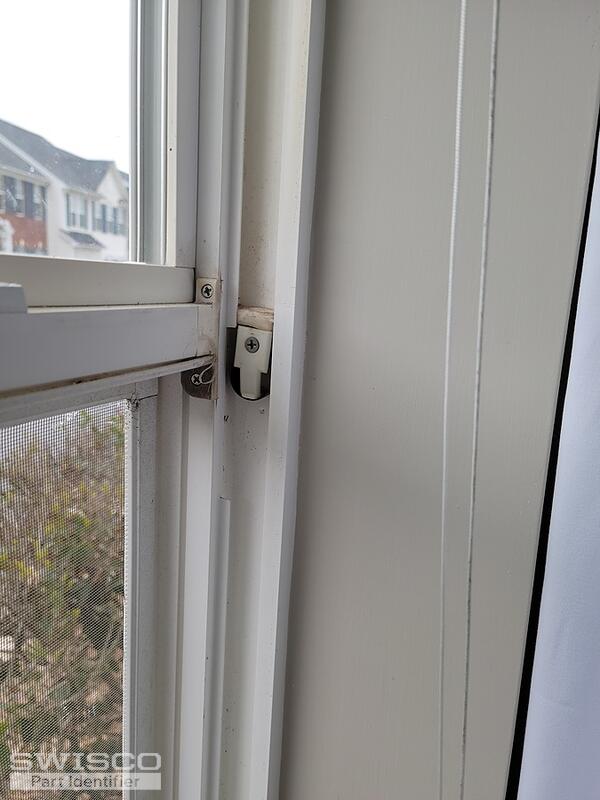

These are 2005 Era MI windows. Can you recommend one of your assemblies that would work to replace balance. No markings on parts or spring. Thanks
Thumbnail of the uploaded file named 20230215_142605.jpg
Thumbnail of the uploaded file named 20230215_142544.jpg
Thumbnail of the uploaded file named 20230215_142539.jpg
Thumbnail of the uploaded file named 20230215_142610.jpg
Profile picture of Tom
Tom from SWISCO responded:
February 16, 2023

Thanks for reaching out to us. We should definitely be able to help with this coil balance assembly. Yours appears to be comprised of our 15-180 shoe, 15-186 clip, 15-182 bushing, and Series 190 coil spring.

Please look these parts over and let me know if you had any questions!
A quick learner from South Carolina says:
February 16, 2023
Tom,

I have ordered the parts.
Thanks for your help.
Profile picture of Tom
Tom from SWISCO responded:
February 17, 2023

You're welcome! Thank you for the order and let me know if we can be of any further assistance.
