MI BRAND WINDOW BALANCE NEEDED
Home Owner from RALEIGH NC
Mar 22, 2025 3:41 pm

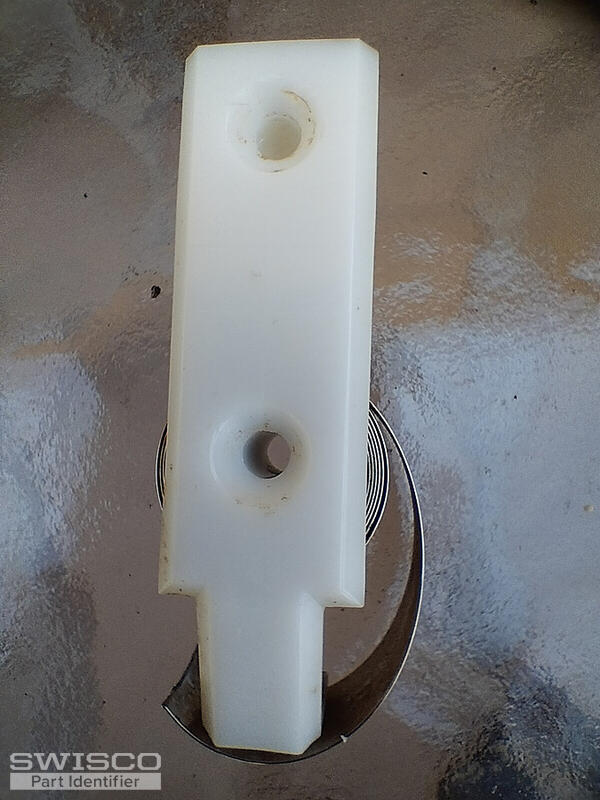

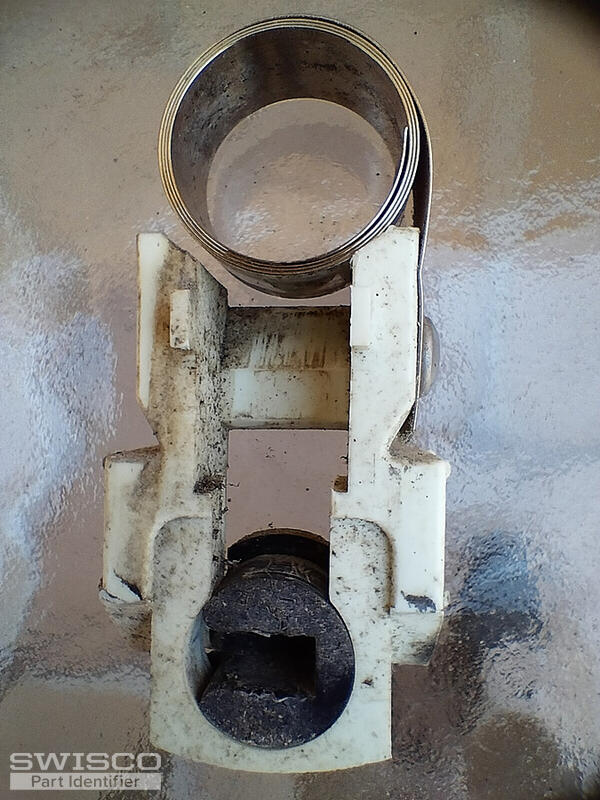

The spring has 532 stamped in it. I need new balances for left and right side of window. The weight of one window sash is 10.6 lbs. Thank you for your assistance!
5 user uploaded images
2 Replies
Lauren from SWISCO
Mar 25, 2025 3:07 pm
Hello, thank you for posting,
Your balance assembly resembles the 15-180 pivot shoe that is compatible with the Series 190 coil springs. Compare the dimensions below to confirm a good fit! Based on the stamp, see the S190-540 spring that can support 5 pounds of weight. Together with the other side, this balance will support your 10.6 pound window sash.
Your original set up appears to use a double cover, but with one coil on each side, see the 15-186 cover,15-182 balance drum and 15-240 air pad if needed. Let us know if you have any additional questions!
Alternate image for 15-180
