MI Windows Series 3500 Sash Sweep Lock and Keeper

Quick Learner from Fairfax, VA
I need to replace the sash sweep lock and keeper on my MI Windows Series 3500, which were installed in 2017. Photos are attached above. The sash lock is 2 1/16" center-to-center and 9/16" from front face. The keeper is 2 1/4" center-to-center. What lock and keeper do you recommend?
2 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thank you for contacting us. We might be able to supply a replacement for what you have here, but we have to research this further. We'll reach back out as soon as we have more information.

We believe the installation hole center spacing for the lock and keeper is closer to 2-1/16". We recommend double-checking the keeper's measurement to be certain.

Emily
Emily from SWISCO
SWISCO
Expert

Hello again! We are working on adding this lock to our inventory, but it will take a few weeks. We will let you know as soon as they're available on our website for purchase.

Emily
Emily from SWISCO
SWISCO
Expert

Please see the new 90-197 sash lock and 90-198 keeper. These parts measure 2-1/16" on the installation hole centers.

While we can't guarantee they will work if they are not an exact match, please review the specifications and see what you think.

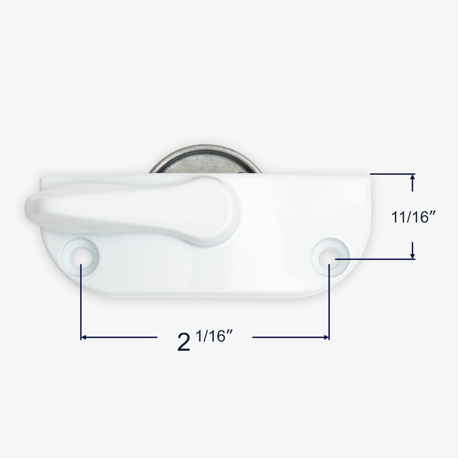

Dimensions for 90-197
Dimensions for 90-197

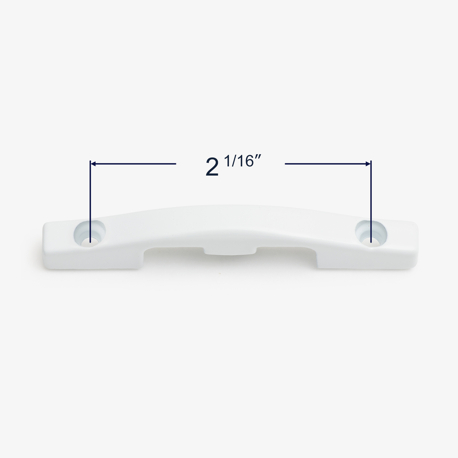

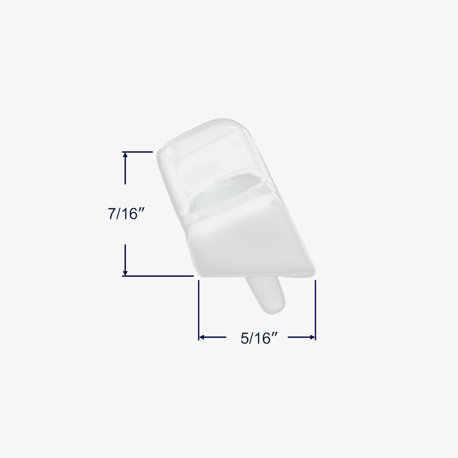

Dimensions for 90-198
Dimensions for 90-198

Dimensions for 90-198
Dimensions for 90-198
