MI spiral balance needed

A home owner from Charlorre, NC says:
January 2, 2018

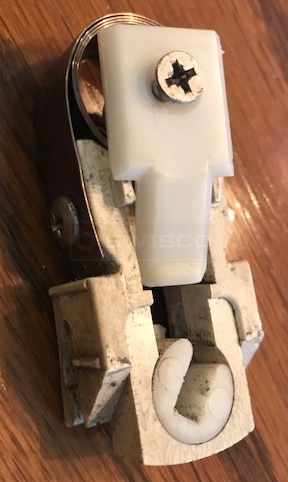

The photo shows a spiral balance removed from an MI window installed in a house constructed in 2005. How do I get a replacement?
coil shoe
Profile picture of Paul
Paul from SWISCO responded:
January 5, 2018
The parts you show from your MI window are the 15-180 coil balance shoe with a 15-186 coil balance clip and 15-182 bushing. The spring will be a Series 190 coil. When ordering the coil springs, you will need to match the spring weight number stamped on the old spring.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Balance Bushing
Balance Bushing
15-182
$1.80
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
440 S190 Coil Balance Spring
440 S190 Coil Balance Spring
S190-440
$9.74
