MI window coil identification

Question

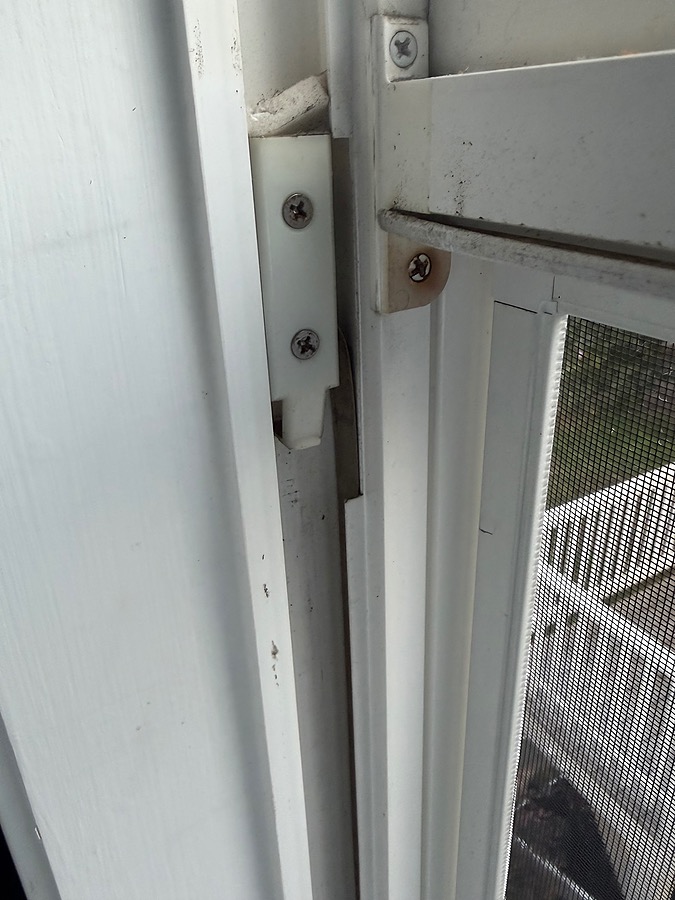

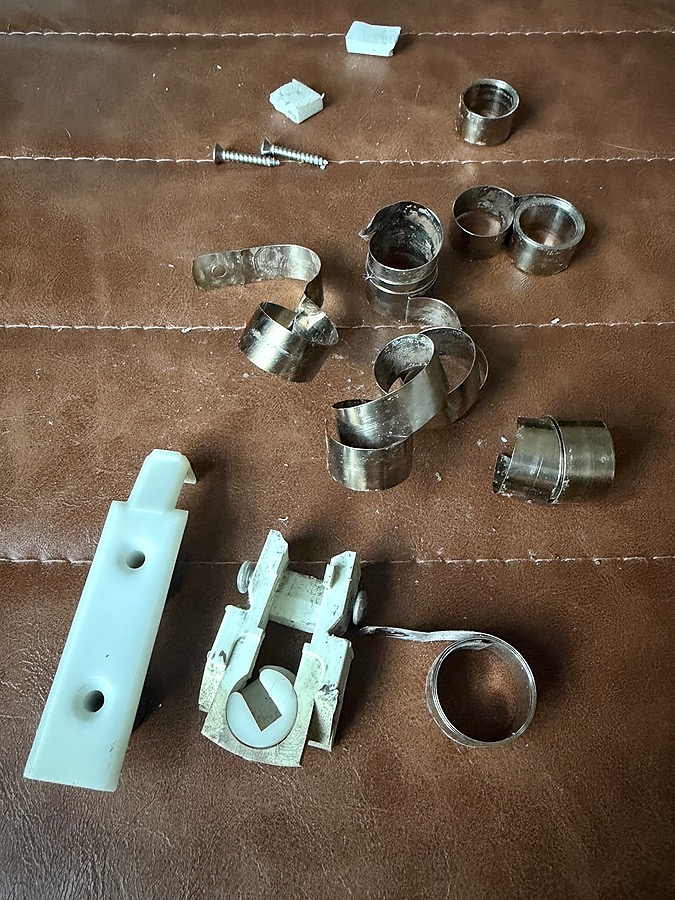

Hello! My window is broken and we only know that this is a MI Window but this piece I need help identifying to replace. I've attached photos of it broken and a photo of an identical window with a piece that is whole. There are no numbers to help identify the piece. Thanks for the help

Jasmine · Accepted Answer

Hey there,

Thanks for reaching out! Your window balance is likely made using the 15-180 Coil Balance Shoe, 15-181 Coil Support Detent Clip, and 15-182 Coil Bushings. To confirm that the shoe is the correct match, carefully look over the dimensions and compare them.

Alternate image for 15-180

This assembly uses the Series 190 Coil Balance; attached using the 33-073 screw. To determine the correct coil weight option, you'll need to look for stamps/markings on the existing coils. If they are missing/hard to read, please see the tutorial below for instructions on selecting the correct coil weight option.
