MILCO Window Repair Parts Order

A handy person from Davenport, FL says:

I was able to find on your website the two Spiral Balances I need ( S400-31 ), the two metal brackets #62 ( 17-062 ) and the Spiral Balance Charging Tool for Non-tilt Windows ( 75-005 ). I need to order these parts as soon as possible, but I have four small plastic parts that hopefully you can help me find to include in my order.

I have uploaded five images of the small plastic clip(s) and my window. These clips each fit into one of the four holes in the side of my MILCO Window frame / sash (reference FrameHoleForClips image) for the purpose of holding the window in place in the channel. These clips are meant to be removed for window repair(s).

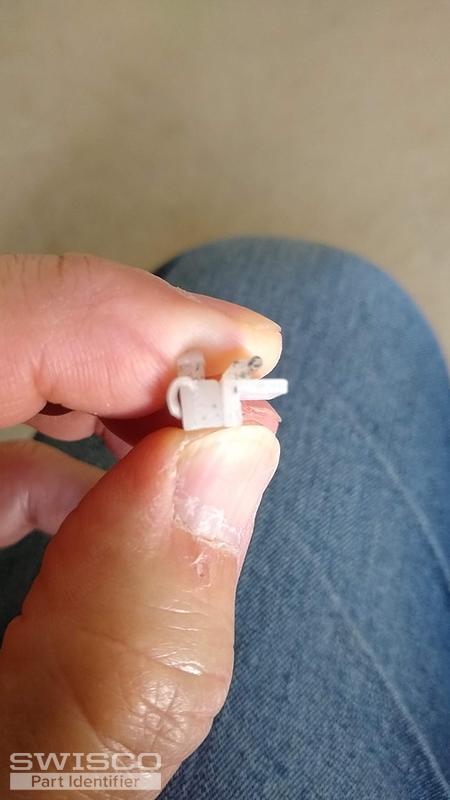

It is a two-part clip normally connected by a thin plastic tail. It is in the hole (reference FrameHoleForClip image) as a side by side unit. I am holding the clip ? as seen in "ClipImage-4" ? as it would normally be installed.

One part of the combined clip (the one with the teeth) is 1/2" long by 3/16" wide. The other piece is 1/2" long tall by 1/16" wide and it has a small grove/channel that is placed in the hole first. Together they are 1/4 wide as seen in "ClipImage-4".

Thank you in advance,

Steven

Thumbnail of the uploaded file named ClipImage-1.jpg
Thumbnail of the uploaded file named ClipImage-2.jpg
Thumbnail of the uploaded file named ClipImage-3.jpg
Thumbnail of the uploaded file named FrameHoleForClip.jpg
Thumbnail of the uploaded file named ClipImage-4.jpg
Profile picture of Tom
Tom from SWISCO responded:
Hello,
Thank you for posting! Based on the information provided it sounds like you may have something similar to that of our 17-097 . Included below are the products dimensions, if the available pieces you have match to this than it should be able to complete your project. Please let us know if you have any further questions or concerns.
Dimensions for 17-097
Dimensions for 17-097
If you would like to make a purchase you may use our online option of adding to your cart.
Or you may give us a call at (856)-317-6263 so one  of our customer service associates may assist you in placing your order.
