Malta casement operator

Question

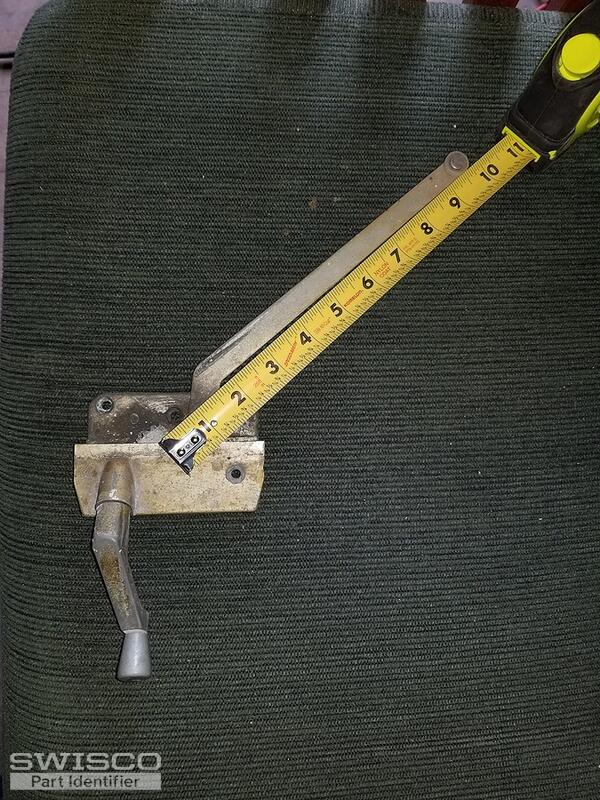

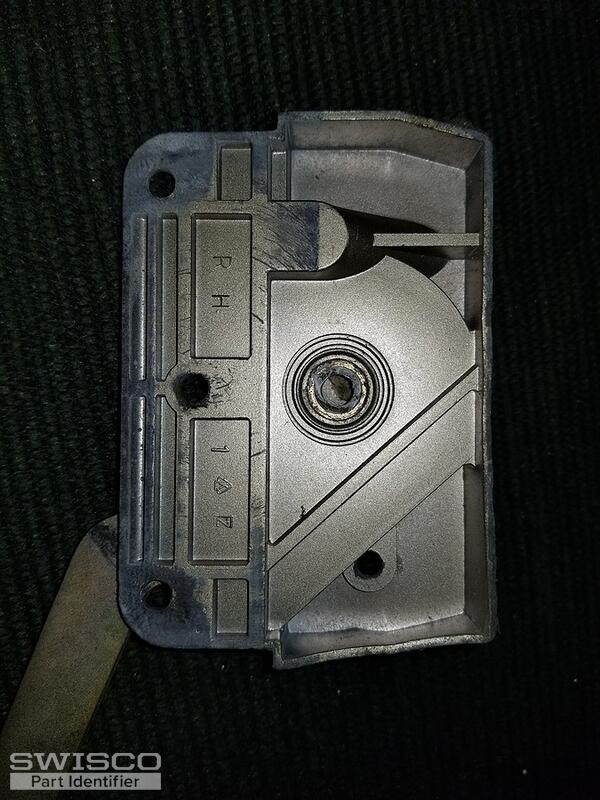

I am trying to find a replacement for this operator. The handle say Malta, but there are no real markings on it other than that. It is 9.5" from the pivot to the end. The nylon bushing that slides in the track is 9/16". The spacing between the two farthest mounting holes is 3". The flat part that is under the window (where the 3 screw holes are) is 3 3/4" wide by 1 1/8"

Bob · Accepted Answer

We don't have this exact operator, but check out our 39-028E, which has a straight arm length of 9-1/2". Please compare and see if you think you could get this operator to work for you. For a new handle, use the 39-114L. You may need a new track as well: see the 39-533.
