Marshall wardrobe sliding mirror series 60

Quick Learner from san mateo,ca
need replacement bottom rollers and possibly the roller track for the bottom.
6 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

To further review, we will need to see pictures of the original rollers and track. If the roller assemblies are not visible while installed, we will need to see one of them removed from the frame of the door. From there we can compare to our selection to determine if we can supply a suitable replacement option. Thank you!

Quick Learner from san mateo,ca

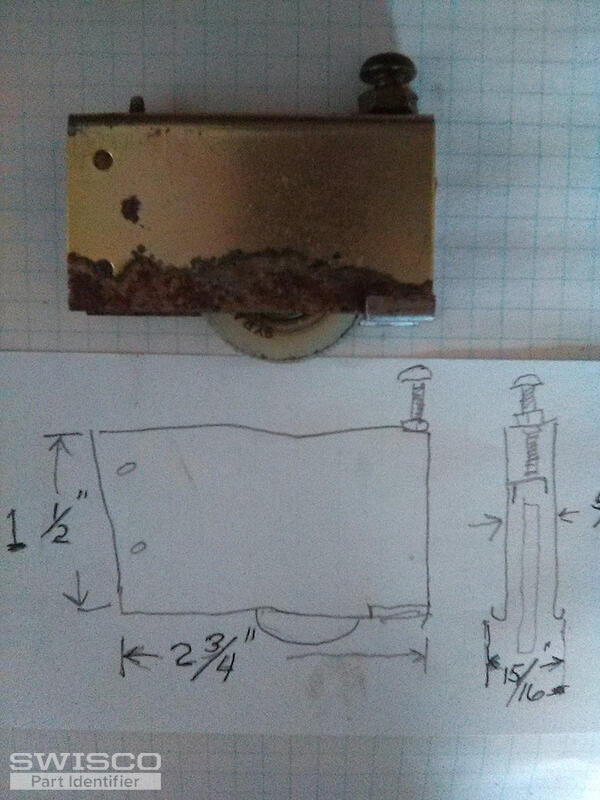

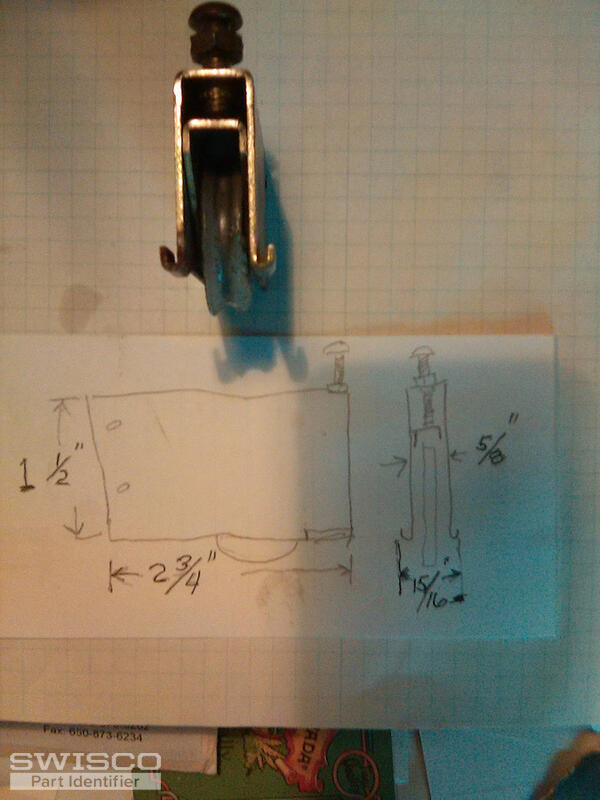

Attached is 2 pictures of the roller, front and end view with dimensions on hand written card.

Dimensions are: 1 1/2 inches by 2 3/4 inches, 5/8inch thick without the small tabs, 15/16 thick with.

I hope this will help in locating the rollers

Thank-you

Bill
2 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Hi Bill,

Unfortunately we do not have an exact match for your roller assembly. The roller that is the closest to your dimensions is our 23-294 roller assembly. The one difference is the top. Our roller housing is open, where yours is closed with a top screw way. We cannot guarantee it will work, but take a look to see if you could adapt this style to your door.

Let us know what you think and if you have any additional questions.

Dimensions for 23-294
Dimensions for 23-294

Quick Learner from san mateo,ca
I found out that the rollers were replaceable in the old assembly unit.
Got 4 new rollers from Swisco and replaced the old ones and the sliding door works great.
As usual Swisco came through.

Thank-you for your help

Bill
Lauren
Lauren from SWISCO
SWISCO
Expert

Hi Bill,

That is great news! Glad to hear that you door is back in working order. Please let us know if you have any future hardware questions!
