Marvin Window operating mechanism

Handy Person from Marshall, CA 94940
Mar 7, 2023 3:37 pm

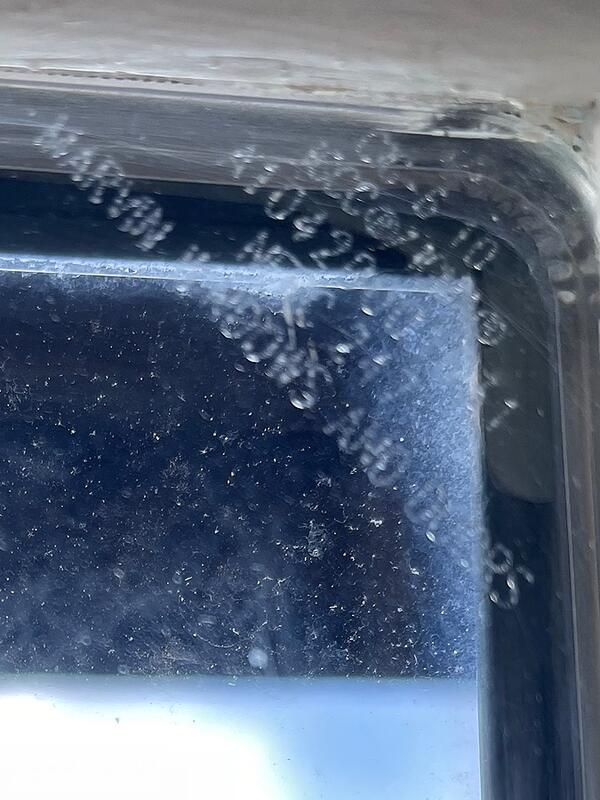

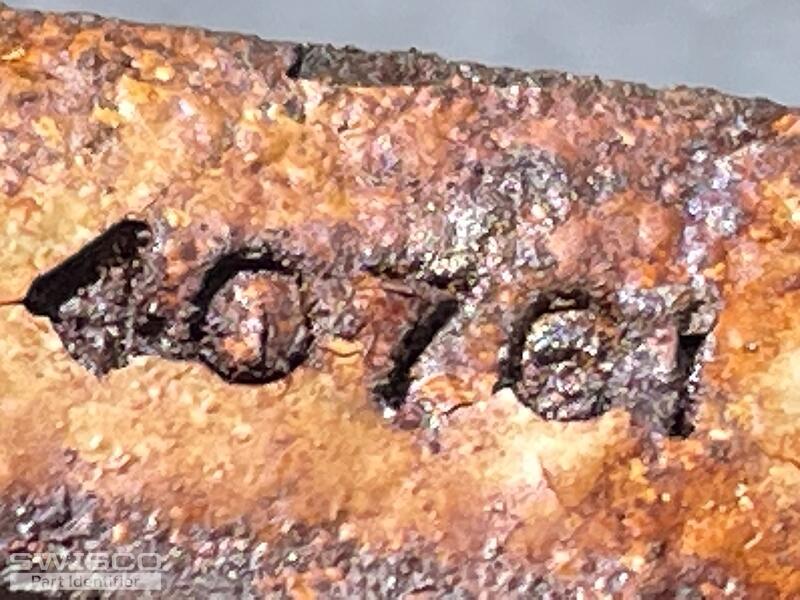

Etched number A1042000163. FRC247. CIC- 6 10. ???

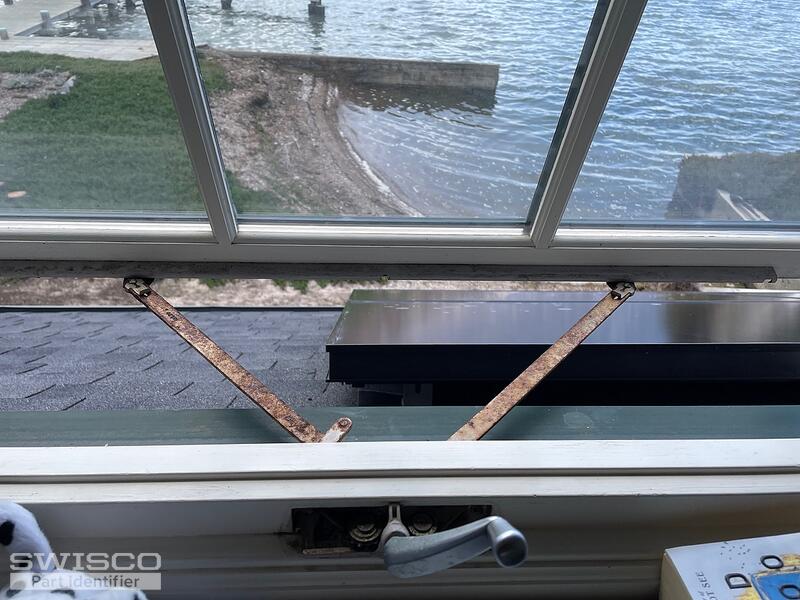

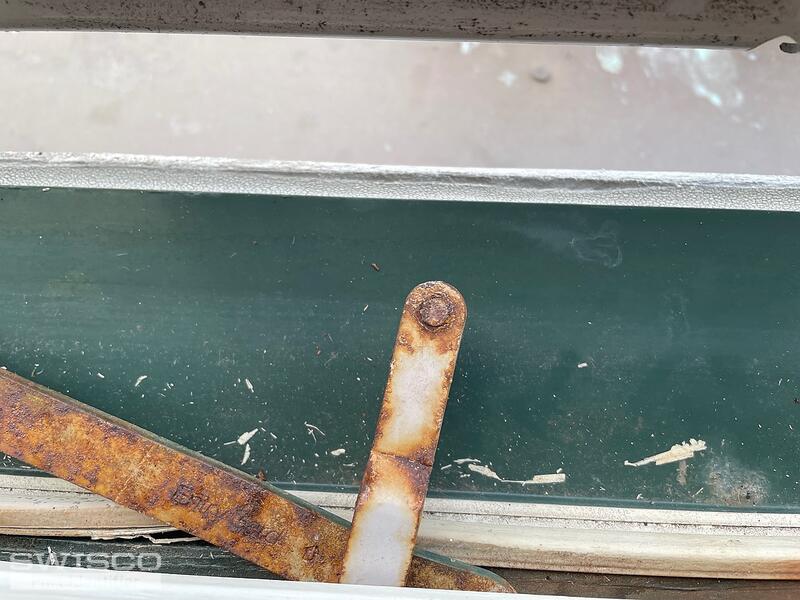

The mechanism works but is stiff, however the small arm (see photo) is detached and prevents the window from fully closing unless I push it out of the way with my finger.
IMG_5855 IMG_5849 IMG_5852 IMG_5853 IMG_5859
5 user uploaded images
3 Replies
Casey
Casey from SWISCO
Mar 8, 2023 2:53 pm
SWISCO
EXPERT

Hello,

The small arm should connect to one of the long arms as shown in the image of our 39-462 below. Since it is broken, I would recommend replacing the entire assembly. Take a look and compare the specifications to your operator. Thanks for posting!

Dimensions for 39-462
Dimensions for 39-462

Handy Person from Marshall, CA 94940
Mar 9, 2023 6:16 am
That looks good.

Please could we go ahead and order both parts.

Malcolm.
Casey
Casey from SWISCO
Mar 9, 2023 8:22 am
SWISCO
EXPERT

Unfortunately, we are not able to process orders through this thread but you are welcome to do so directly on our website or feel free to give our customer service team a call at (888) 991-1929 for assistance.
