Master Bedroom Window Balances and Parts

A home owner from Venice, FL says:
October 8, 2019

1/2" wide, 32" long (measured the metal part only).

Balance stamped with "2230"

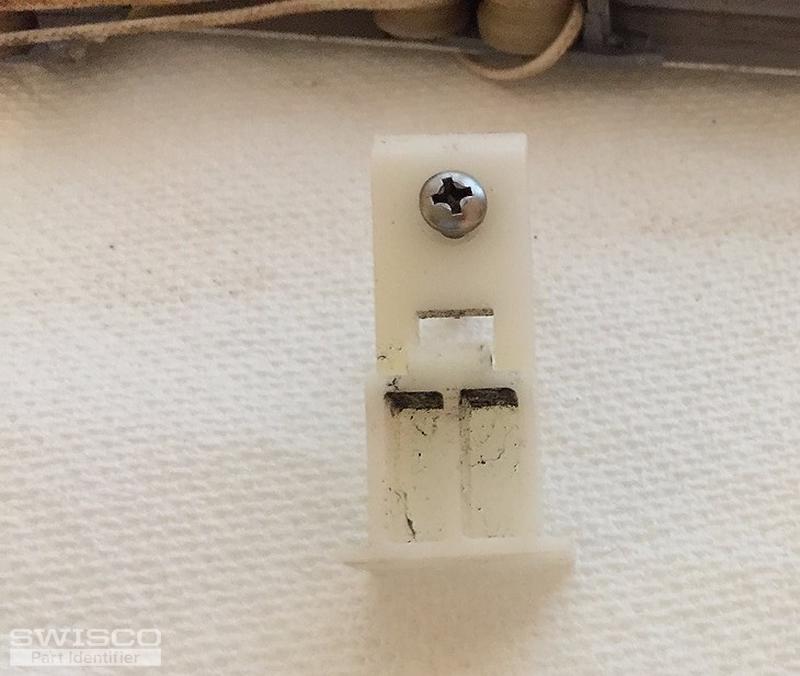

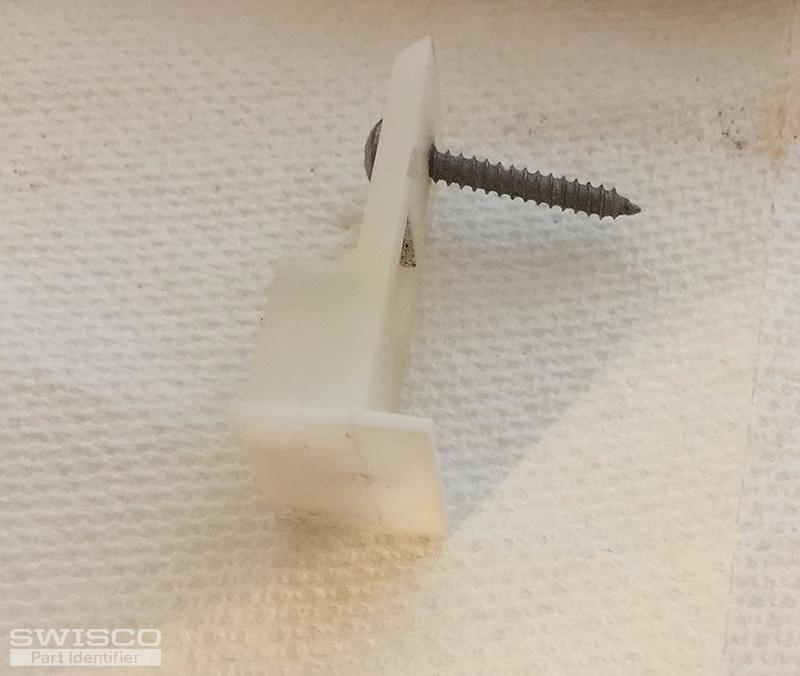

Also need the plastic part at the top of the balance that screws into the window. pictures attached.

Thank You.

Don

Thumbnail of the uploaded file named IMG_2170.JPG
Thumbnail of the uploaded file named IMG_2171.JPG
Thumbnail of the uploaded file named IMG_2172.JPG
Thumbnail of the uploaded file named IMG_2173.JPG
Thumbnail of the uploaded file named IMG_2174.JPG
Profile picture of Bob
Bob from SWISCO responded:
October 14, 2019

Hi Don. Can you confirm that metal channel length for me? Did you mean 23", rather than 32"? If so, start by looking at our S380-23. Just make sure your balance's bottom nylon shoe matches the dimensions of our 15-005, particularly the heel-to-toe measurement of 1". If this differs in any way, please let me know before ordering. You'll need a stamp option of 2230. For your Top Sash Guide, take a look at our 18-161. Look over the dimensions to see if it matches what you need.
Winged Channel Balance Shoe, 1" Depth
Winged Channel Balance Shoe, 1" Depth
15-005
$0.74
5/8" Sash Guide, Norandex
5/8" Sash Guide, Norandex
18-161
$1.88
