Masterview window latch

Question

The window opens vertically pushing up to open from the bottom up. The actual label from the window frame has the following information on it. AAMA HS-R20 - also has MST-10050; included on the right side of the label is
ANSI/AAMA-101-88; Series 8000 and MVI Manufacturer's code.

The latch that slides into the window groove to lock it has broken off and the window can no longer lock. I can find no other markings on the latch other than the name Masterview.

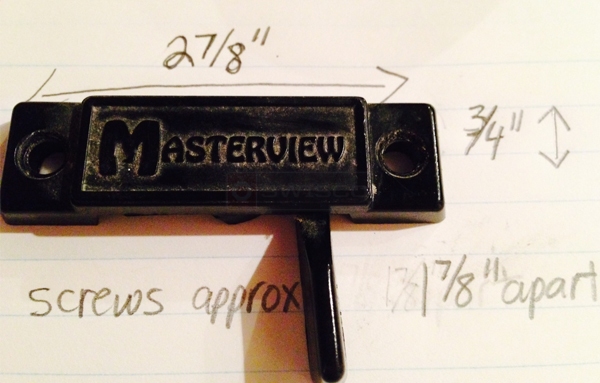

The latch itself is 2 7/8 " long and 3/4" wide. the screws that hold the latch onto the window frame are 1 7/8" apart.

Tom · Accepted Answer

Can you confirm the distance between the screw holes? If the whole lock is 2-7/8" long, the holes would have to be a 1/2" in on each side, which doesn't appear to be the case. Make sure to measure from the center of each hole, not the edges.

The closest lock we have is our 90-005, though the screw holes are 2-1/4" apart, center-to-center. If your hole spacing is different, you may have to redrill them on your sash.
