Mastic window part replacement

A home owner from 41071 says:
April 13, 2022

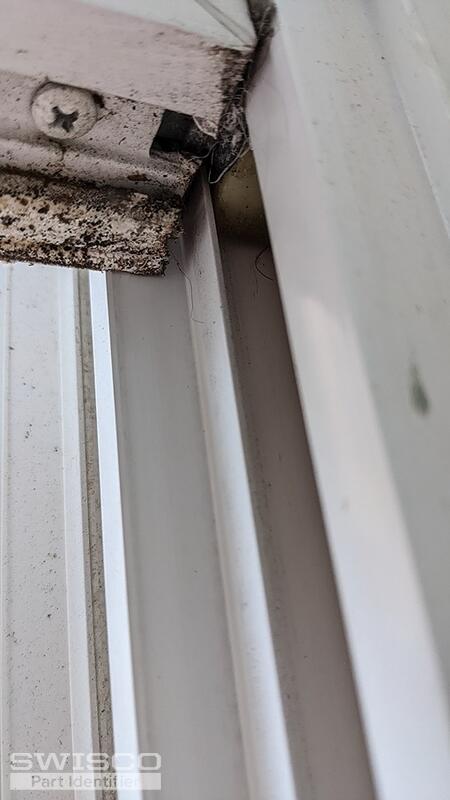

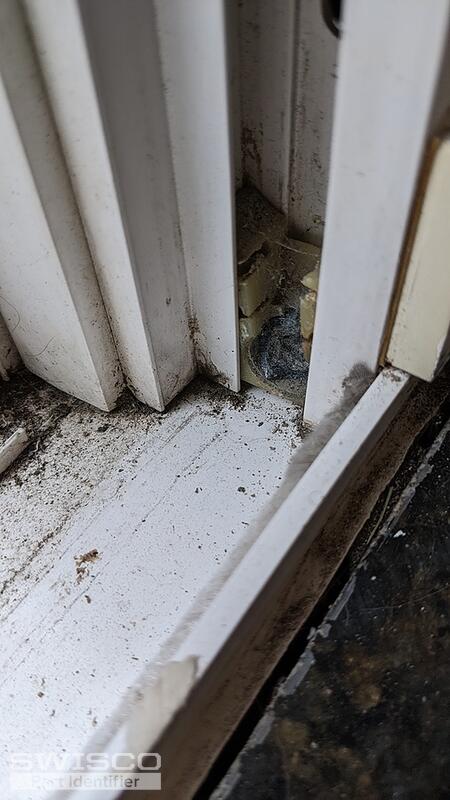

Hi- I'm looking for these parts that allow the window (Mastic windows I believe) to stay open when lifted. The grey pieces are quite corroded and brittle (the one pictured has fallen apart), and the tan sliding parts are usually worn as well.
Thumbnail of the uploaded file named PXL_20220413_182358114.jpg
Thumbnail of the uploaded file named PXL_20220413_182349331.jpg
Thumbnail of the uploaded file named PXL_20220413_182409286.jpg
Thumbnail of the uploaded file named PXL_20220413_182546966.jpg
Thumbnail of the uploaded file named PXL_20220413_182610297.jpg
Profile picture of Emily
Emily from SWISCO responded:
April 15, 2022

Hello!

The style of your pivot bar reminds me of something like our 26-316 or 26-457. I can't get a good look at your pivot shoe but you can start by taking a look at our 15-175 which uses the Series 152 coil springs. Compare our dimensions to an undamaged version of your hardware to see if these parts match up.
Interlocking Pivot Bar
Interlocking Pivot Bar
26-316
$1.97
PivotTrue Corner-Pivot
PivotTrue Corner-Pivot
26-457
$4.09
