Measurement

A quick learner from PA says:

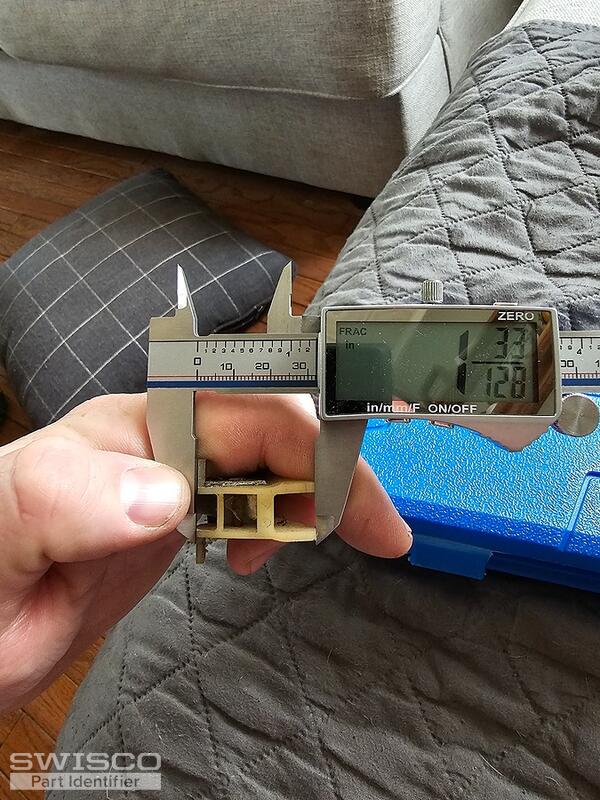

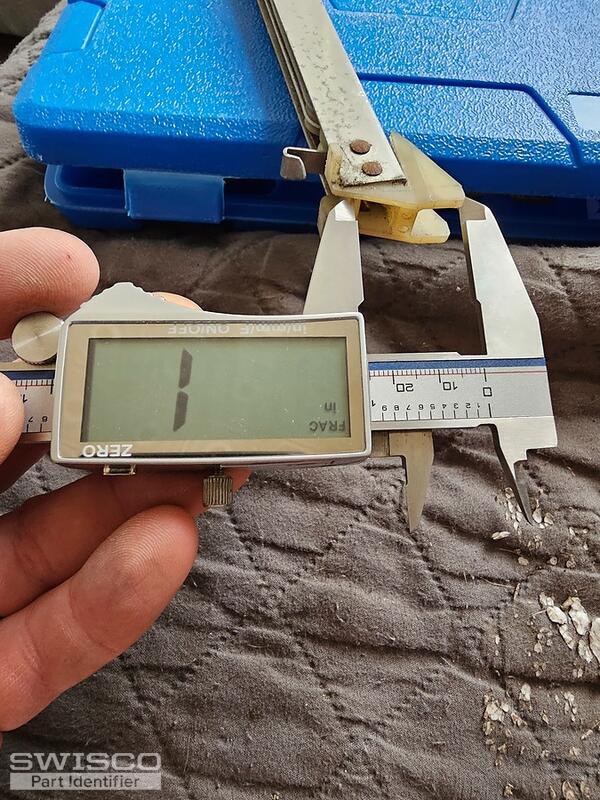

I'm confused on the two selection once is 1 inch and the other 1 3/32. The way it looks like u want the measurement im not close to either.
Thumbnail of the uploaded file named 20230515_131339.jpg
Thumbnail of the uploaded file named 20230515_131347.jpg
Thumbnail of the uploaded file named 20230515_131352.jpg
Thumbnail of the uploaded file named 20230515_131318.jpg
Thumbnail of the uploaded file named 20230515_131227.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for posting! I am confident that we can offer a replacement balance for the one you have pictured here, however, I'll need to see a clearer photo of both the top and bottom attachments. It would help to see the photos from a "front" profile view, on the side where the spring is exposed.

A quick learner from PA says:

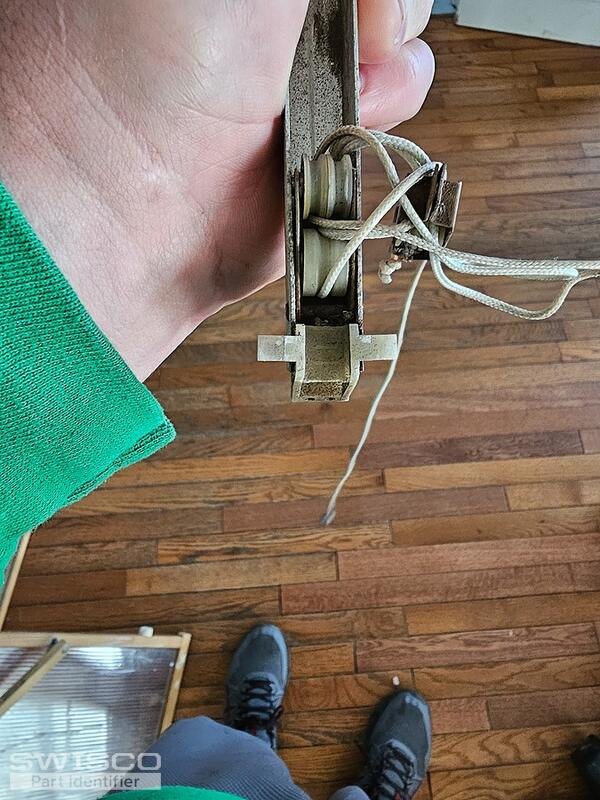

Thumbnail of the uploaded file named 20230518_092817.jpg

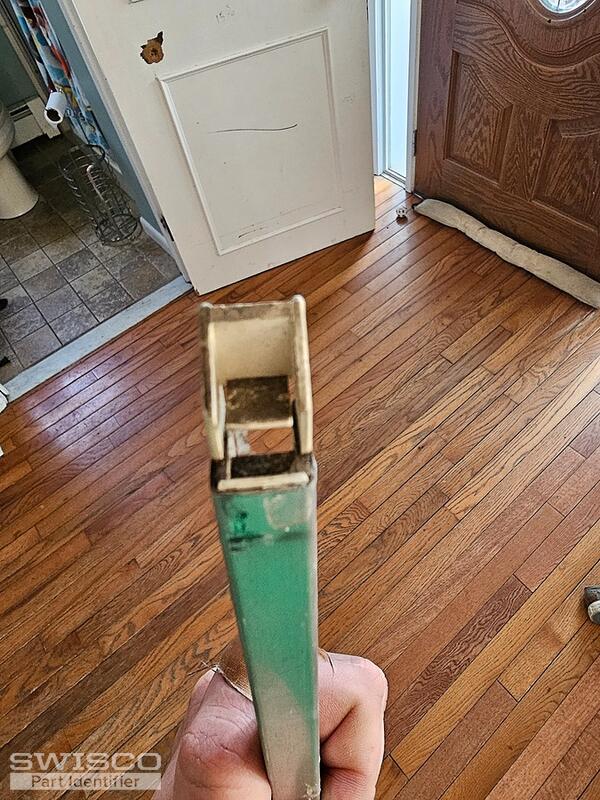

Thumbnail of the uploaded file named 20230518_092852.jpg

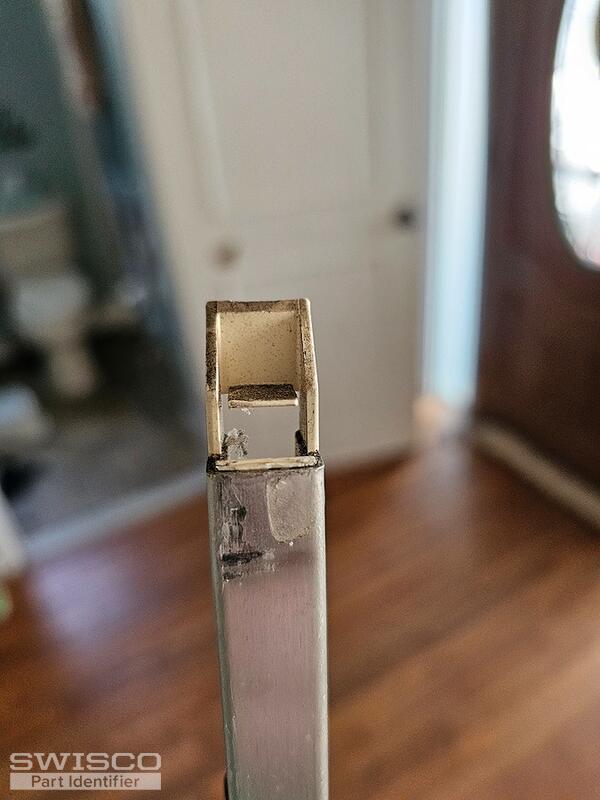

Thumbnail of the uploaded file named 20230518_092840.jpg

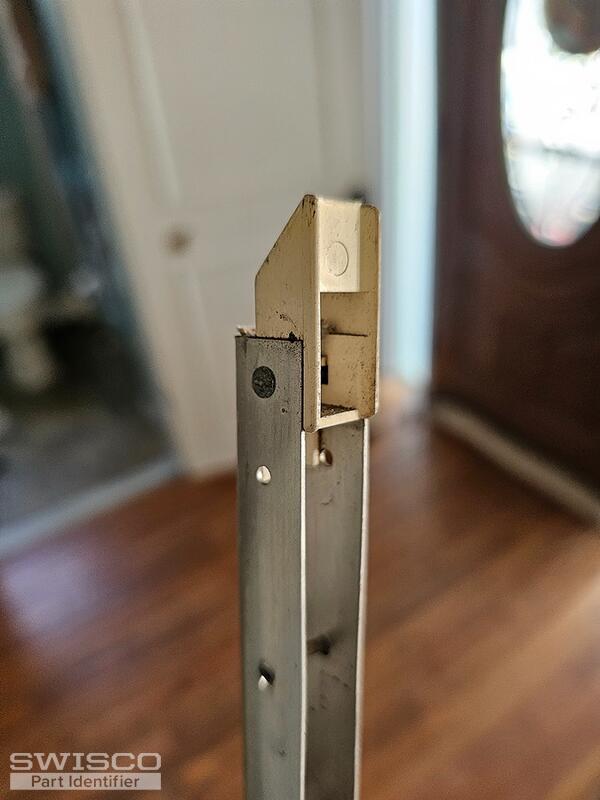

Thumbnail of the uploaded file named 20230518_092837.jpg

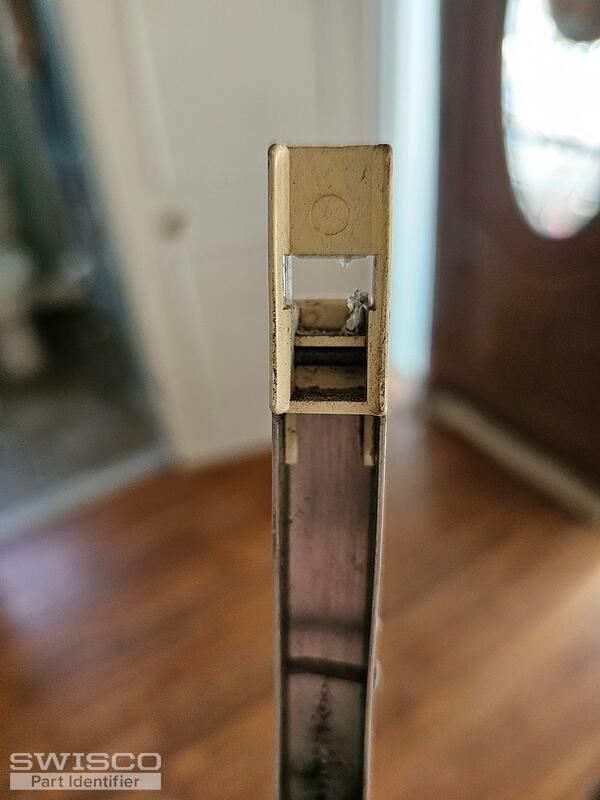

Thumbnail of the uploaded file named 20230518_092835.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for the photos. It appears you have the S350-29 channel balance with a 2830 stamp. These balances are assembled with a 19-002 non-winged top guide and a winged 15-004 (1-3/32" deep) bottom shoe.

It is likely that the 1-3/32" measurement is the one  you'll need. Using a measuring tape might give you a more accurate measurement.

Close up view of the S350 balance shoe.
Close up view of the S350 balance shoe.

A quick learner from PA says:

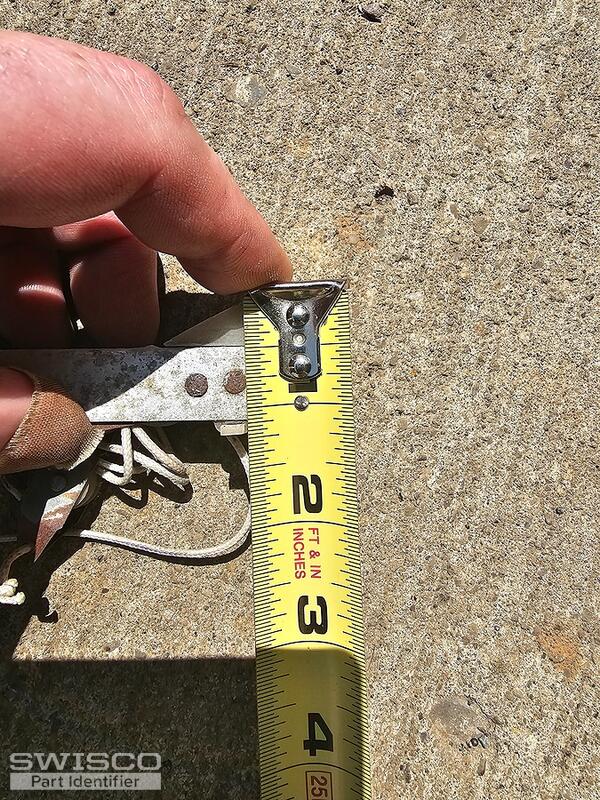

The bottom foot is 1 1/4
Thumbnail of the uploaded file named 20230518_111705.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

It is likely that the measurement is 1-3/32". In our experience, there hasn't been a shoe made with a 1-1/4" measurement. So the Series 350 balance recommended would be what you need as a replacement.

As mentioned, it has the non-winged top and winged bottom, like your balances.
