Measurements

Start a new Discussion

Quick Learner from Vancouver Wa.

Jan 14, 2021 11:41 am

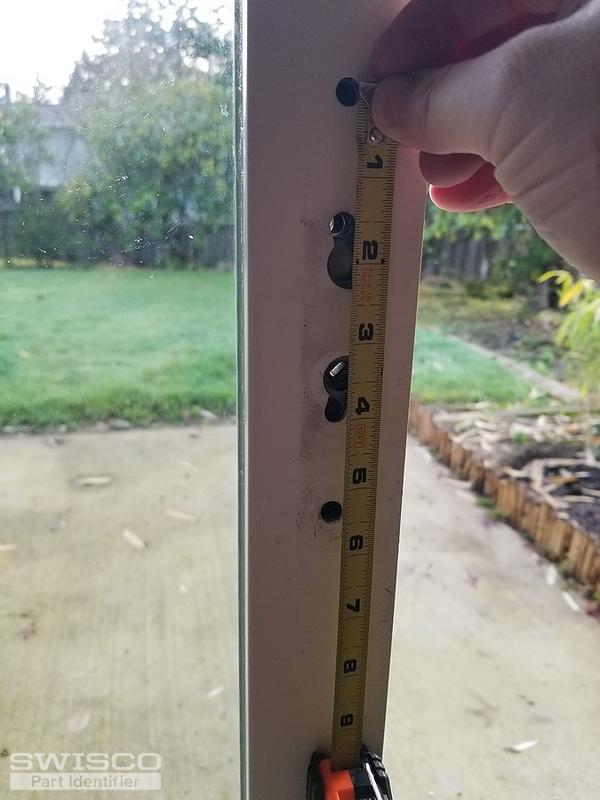

Here is the measurement of whole placement

3 user uploaded images

4 Replies

Tom from SWISCO

Jan 14, 2021 2:39 pm

I'm not certain what your question is, but based on your photos I assume you're looking for a new patio glass door handle. If so, see our 82-030. I feel confident this will work for your door.

Quick Learner from Vancouver Wa.

Jan 14, 2021 3:47 pm

I'm confused on the hole spacing? Is 3 15/16 the distance between each screw hole?

1 user uploaded image

Casey from SWISCO

Jan 15, 2021 10:30 am

Correct, it looks like your original installation holes are closer to 5-1/2" apart, meaning you'd need to drill new installation holes for the 82-030 to work for you. If you decide to go that route, just be careful not to hit the glass in your door when drilling new holes. Thanks for posting!
