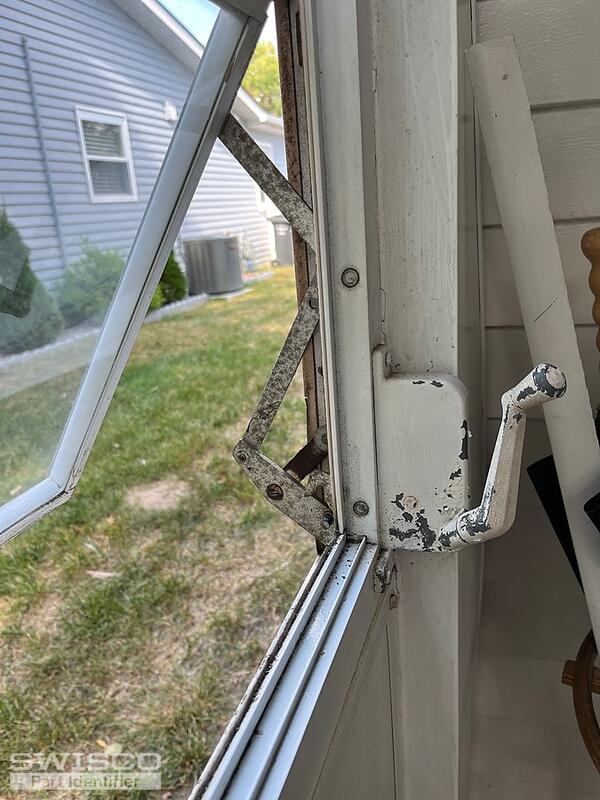

Mechanism for opening awning window




Hi there!
Thanks for reaching out to us. We're happy to look into this but we'll need more information. Can you remove the operator from the window and disconnect it from the linkage? We'd like to see photos of the top and bottom installation tabs, along with a photo of the link arm.


Thank you



Thanks for reaching out to us. Emily isn't here today, but I will do my best to take over your inquiry.
Looking over your new photos, I still can't make out the design of the link arm. Too many important details are obscured so long as it's installed, unfortunately. Like Emily mentioned before, it's necessary to disconnect the operator from the linkage entirely and remove it from the window so that we can get a good, unobstructed look at it.
In the meantime, you can see our full selection of awning operators here. We carry a ton of different parts in this style that only have mild differences between them, so the little details are the major deal breakers.
