Metal Bi-Fold Door Hardware

Contractor from Lancaster, Pa.

Dear Sir,

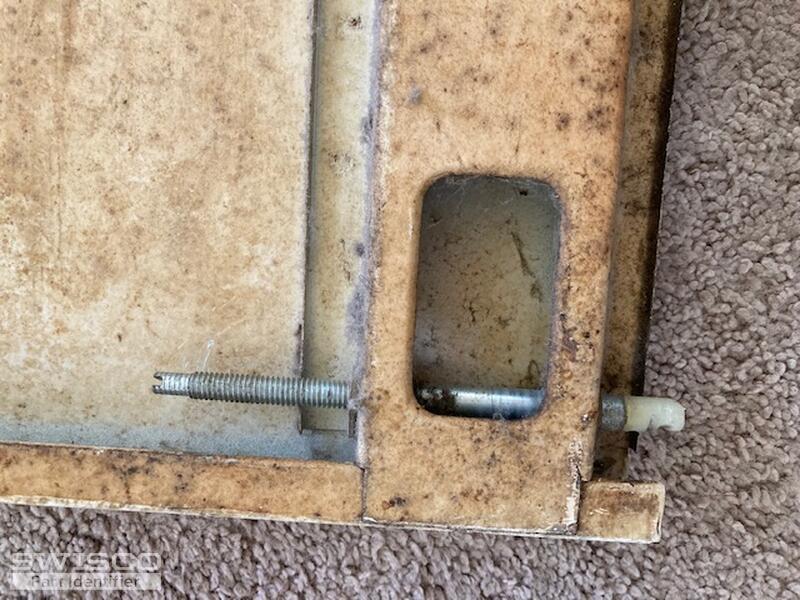

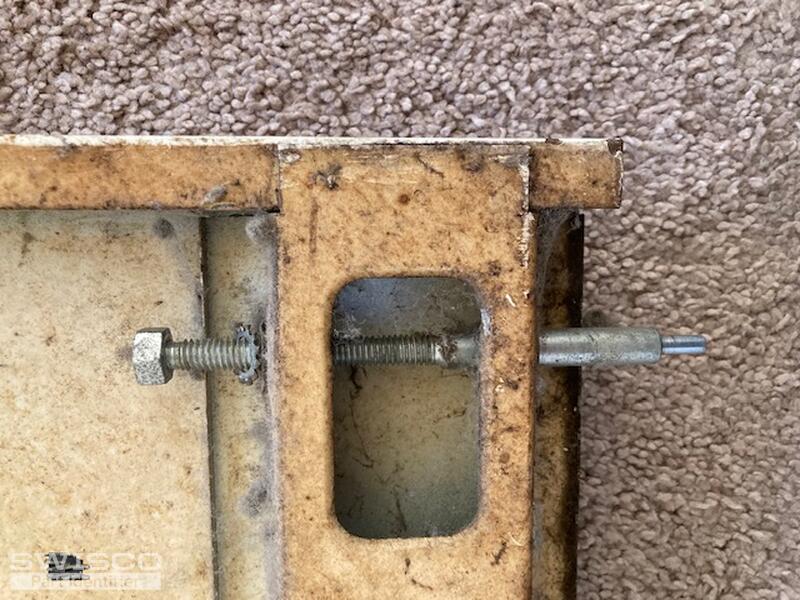

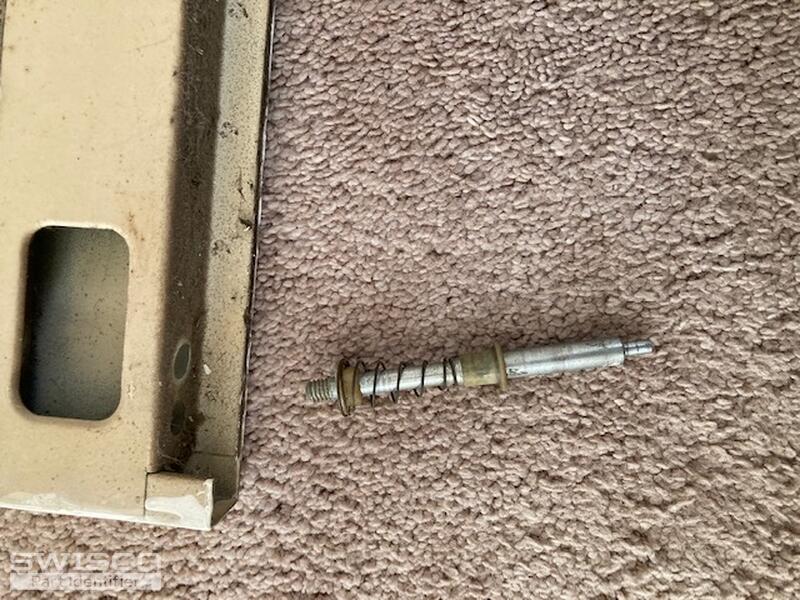

We are doing renovation on multiple apartments with older metal bi-fold doors. The hardware for most of the doors needs to be replaced. I have attached pictures of one set of doors and the existing hardware.

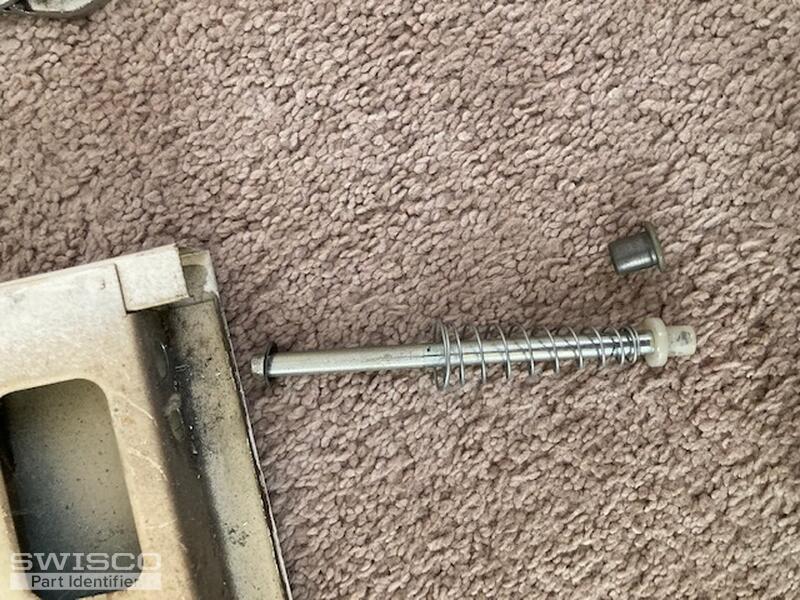

I do realize that most of the nylon bushings are missing and the pin in picture #1431 is an incorrect replacement.

Could you tell me what the correct part numbers are for each corner so that we can place an order.

Contact me if you have any questions.

Thanks, Joe

5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey Joe. Can you tell me the diameter of the pins, as well as the diameter of the caps atop the pins? Also is there any other manufacturer info on the door you can show us? We'll do our best to assist you from there.

Contractor from Lancaster, Pa.

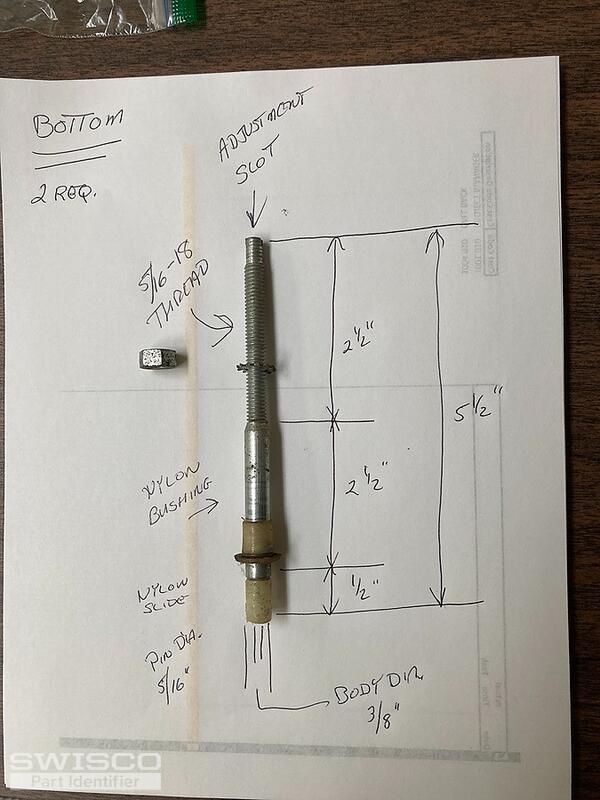

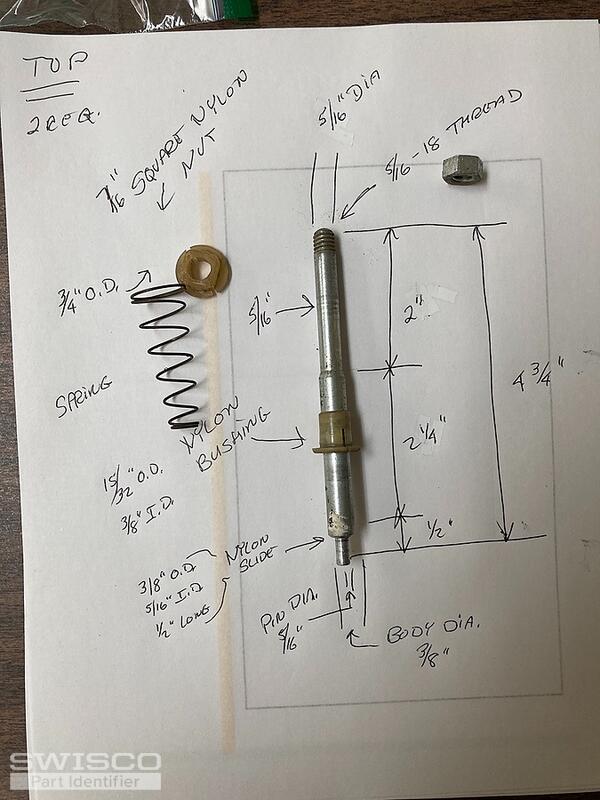

Attached are pictures of the hinge pins with dimensions

Thanks, Joe
2 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

You have the old Float-a-way bi-fold doors. The replacement parts are dwindling and many are not available. We suggest converting over to the Slimfold door pins. You will need to replace the tracks with the new pins. We pulled up the parts you will need. We suggest doing one set of doors with a pair of tracks, one 21-001 bottom adjusting pin and three 21-007 spring loaded pins per panel. You will will need two 21-277 bumpers and, if the old bushing are worn, the 21-152 & 21-153.
