Metal Bifold Missing parts

A home owner from New Jersey says:

May 27, 2020

I am not sure the brand but I think this bifold may be from the 1970s. I have attached a photo of the top and bottom pivot rode as well as a door pin. Do you know what parts I need for replacement?

Thank you

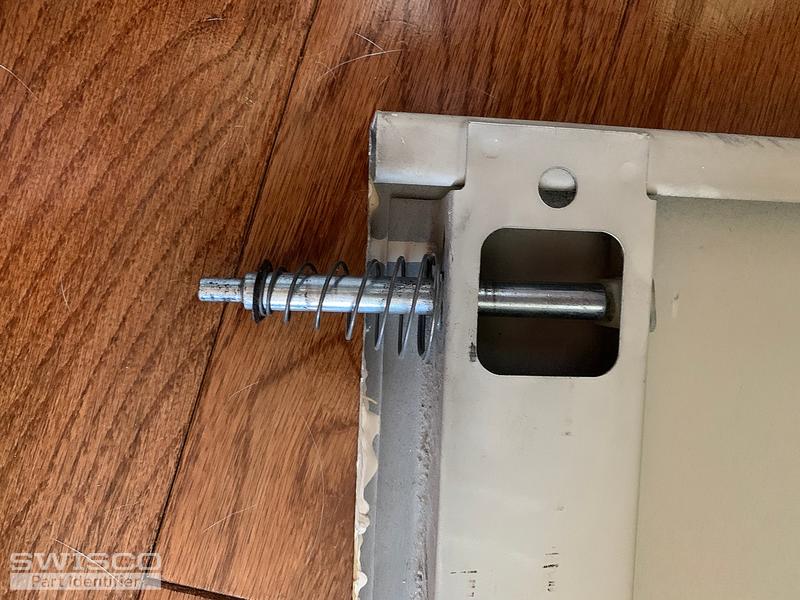

Thumbnail of the uploaded file named 1 Top pivot rod.jpeg

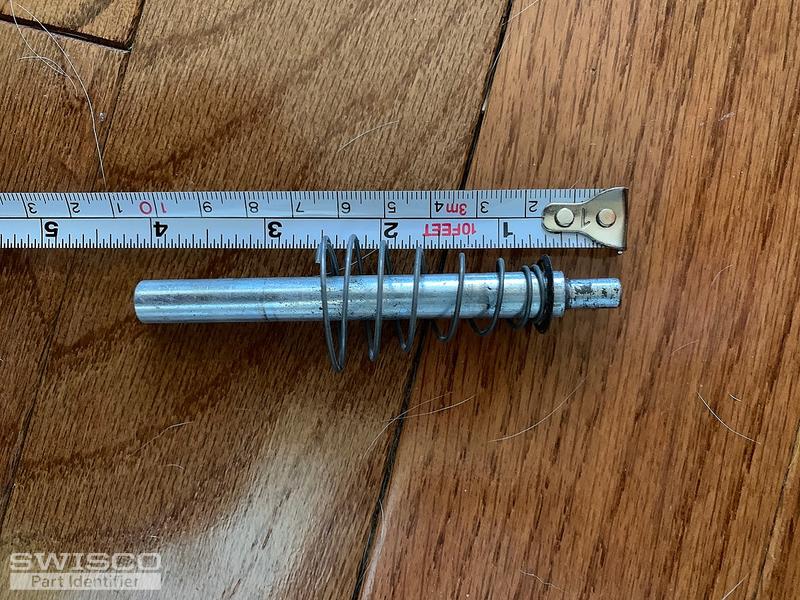

Thumbnail of the uploaded file named 2 Top pivot rod.jpeg

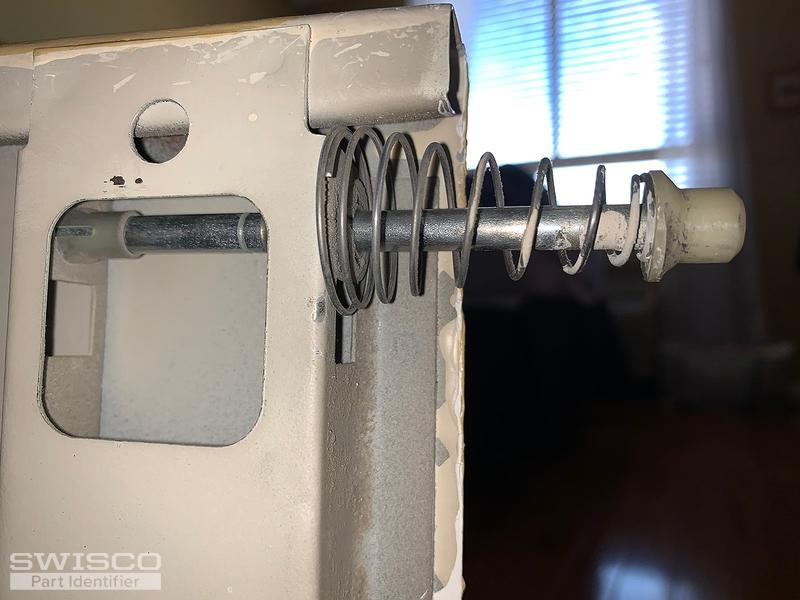

Thumbnail of the uploaded file named 3 Top pivot rod.jpeg

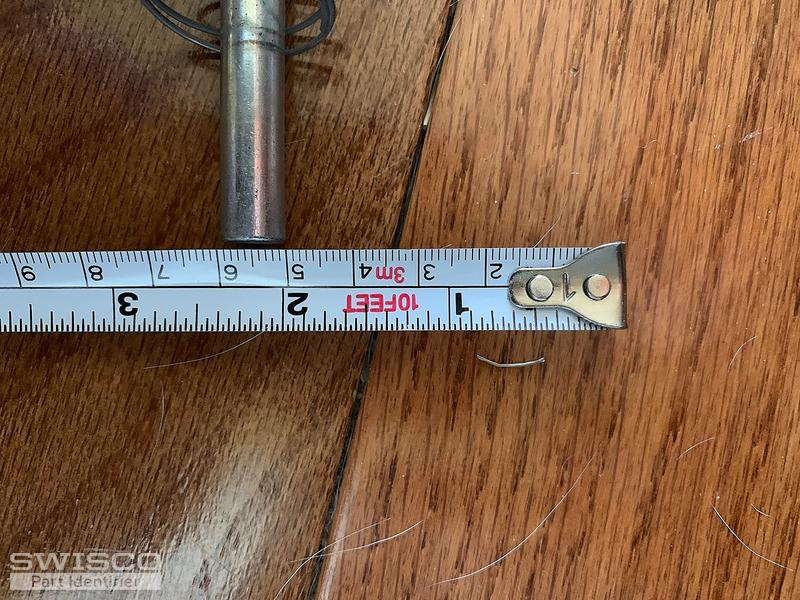

Thumbnail of the uploaded file named 4 Top door pin.jpeg

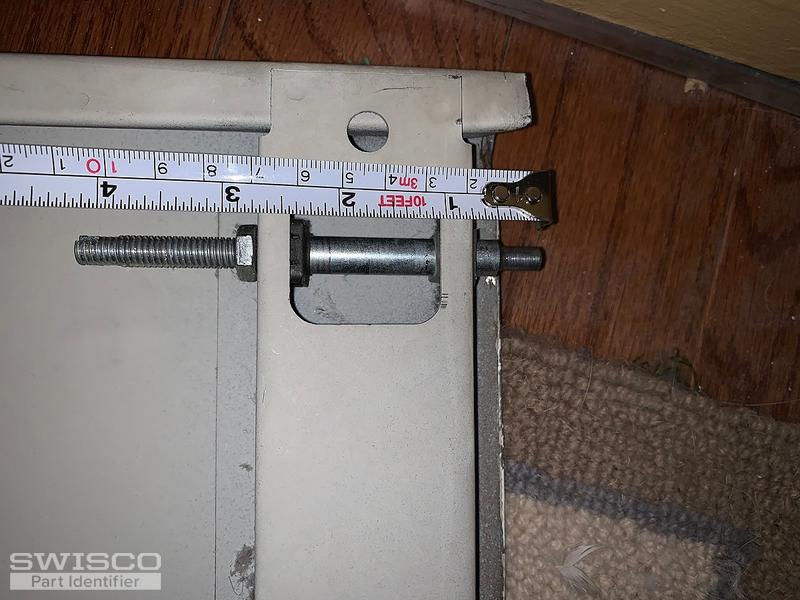

Thumbnail of the uploaded file named 5 Bottom pivot rod.jpeg

Paul from SWISCO responded:

June 1, 2020

We believe you have the old Peachtree Series bi-fold doors. We carry the newer style that fits into the 1/2" square holes of your door. Please compare our 21-028 guide pin, 21-029 top pivot, and 21-030 bottom pivot to your old parts. Let me know if you have any questions.

A home owner from New Jersey says:

June 6, 2020

Hi Paul,

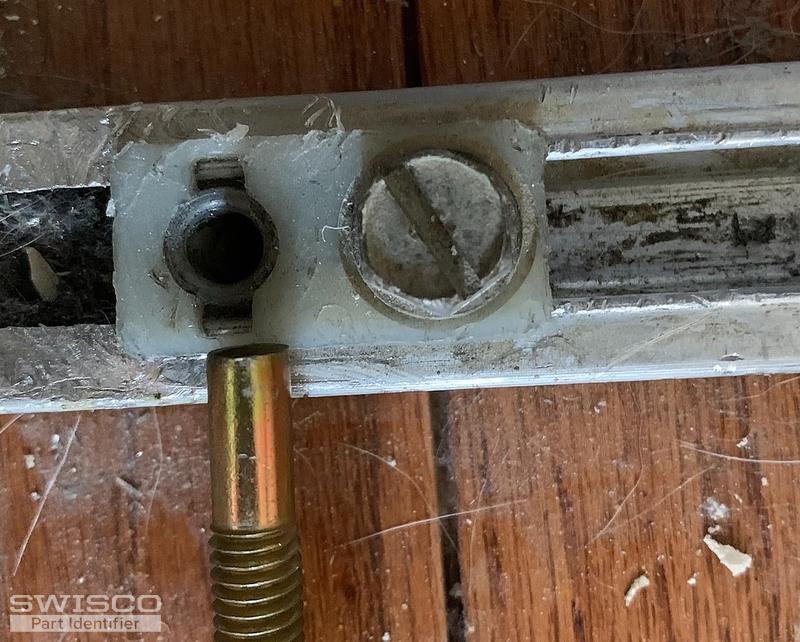

I ordered the pieces and they fit in the door fine. The only issue is the new pivots are slightly larger than the old holes in the track so the doors don't sit in the track securely. What additional piece would I need to correct this issue?

Thank you

Thumbnail of the uploaded file named IMG_3146.jpg

Paul from SWISCO responded:

June 9, 2020

Sorry to hear you're having trouble. I went back to the shop to experiment with a few brackets. I believe you can use our 21-210 as a replacement for the original. Both pins you purchased from us can work with it and I think it will serve well for your purposes.

Bifold Door Guide Pin, Peachtree

21-028

$5.05

Bifold Door Top Pivot, Peachtree

21-029

$4.90

Bifold Door Bottom Pivot, Peachtree

21-030

$5.60

Peachtree 1/4" Pin Pivot Bracket, 3/4" width

21-210

$4.07
