Metal Closet Door Pin Installation Tips

A home owner from Chicago says:
Need help installing bottom pin and metal closet door.

There It's nothing holding it in place. It just drops to the bottom.

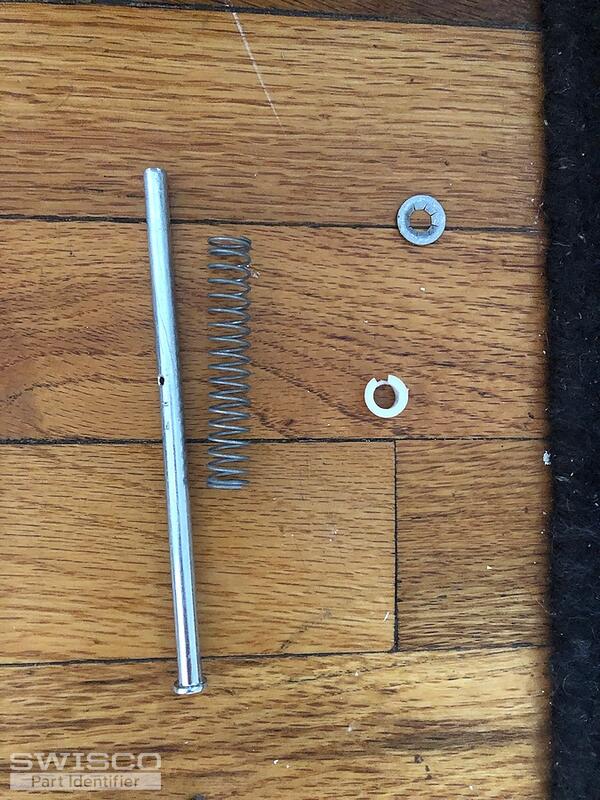

Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
A home owner from Chicago says:
Hi

I really submitted a question. But I wanted to add some updated photos of the hardware that is existing. It does not show anything holding the pin in place. Very confusing.
Thumbnail of the uploaded file named image6.jpeg
Thumbnail of the uploaded file named image7.jpeg

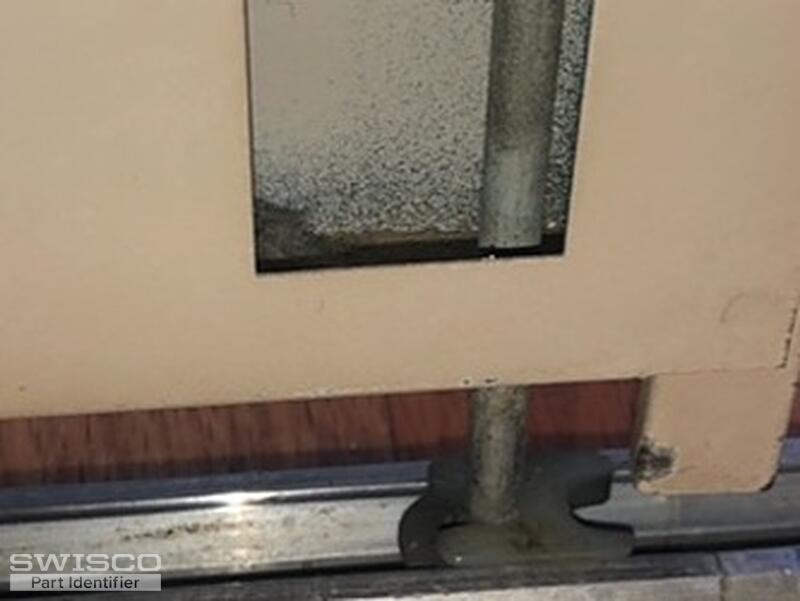

Thumbnail of the uploaded file named image3.jpeg

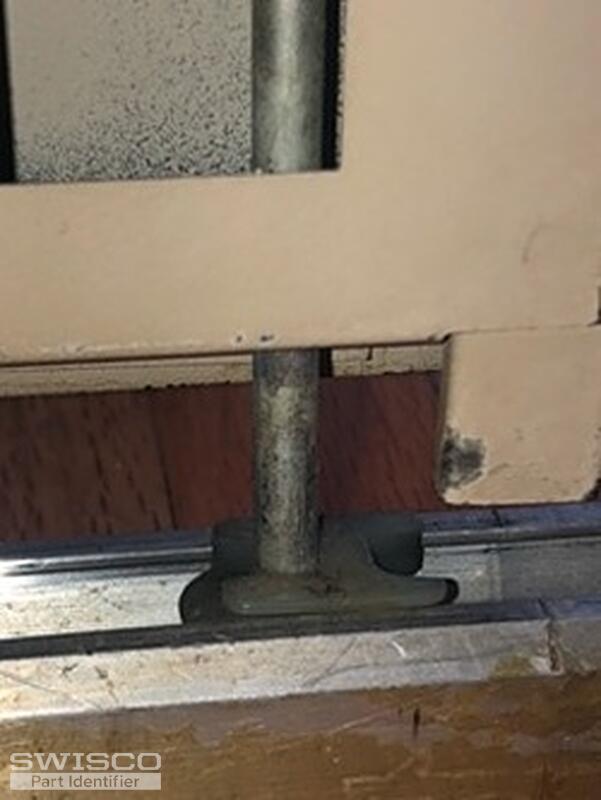

Thumbnail of the uploaded file named image4.jpeg

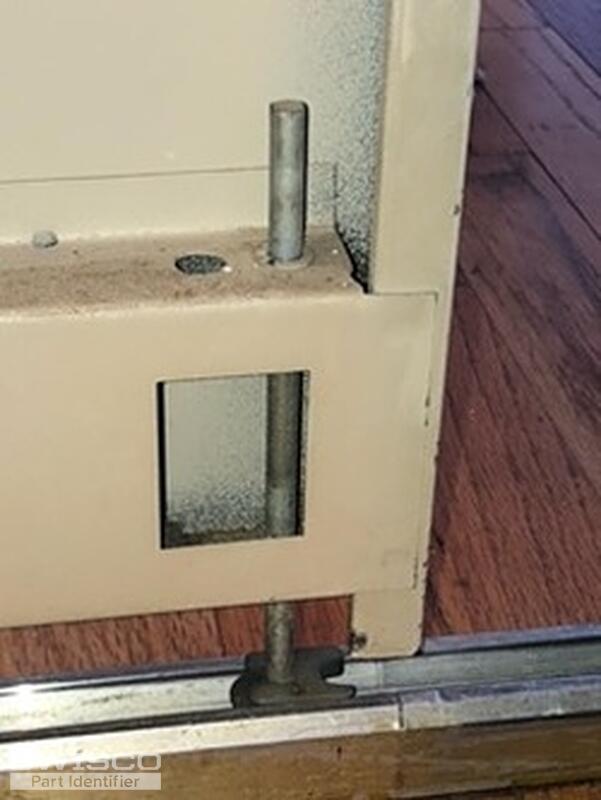

Thumbnail of the uploaded file named image1.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Hello, thank you for posting,

In your first set of photos, you are showing the 21-058 top spring loaded pin. You would slip the pin from the end of the door through the spring and place the locking cotter pin through the hole before it comes out of the door. That will give tension to the pin. The other five photos you show the bottom pin. The door manufacturer, Leigh didn't feel it was necessary to use a spring at the bottom of the door since the pin locks into the nylon guide.
