Metal Hopper window lock

Handy Person from Philadelphia, PA
Aug 3, 2024 12:45 pm

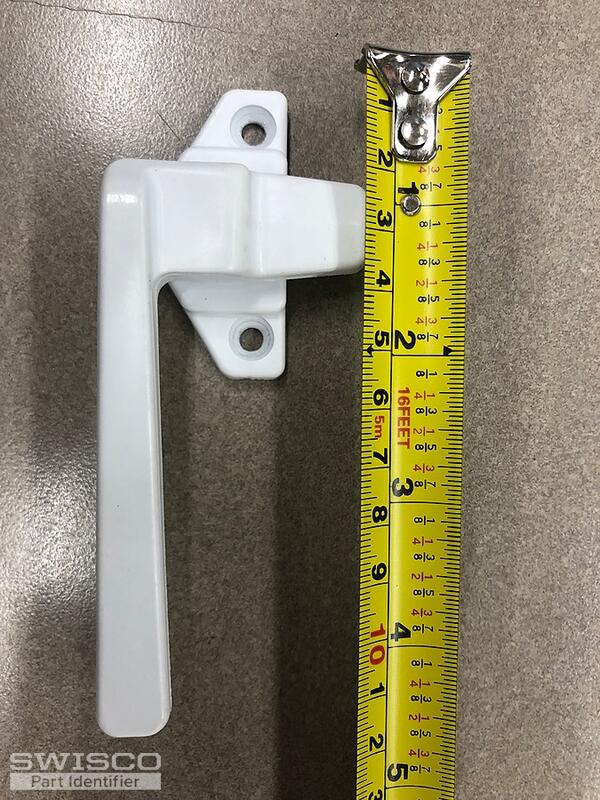

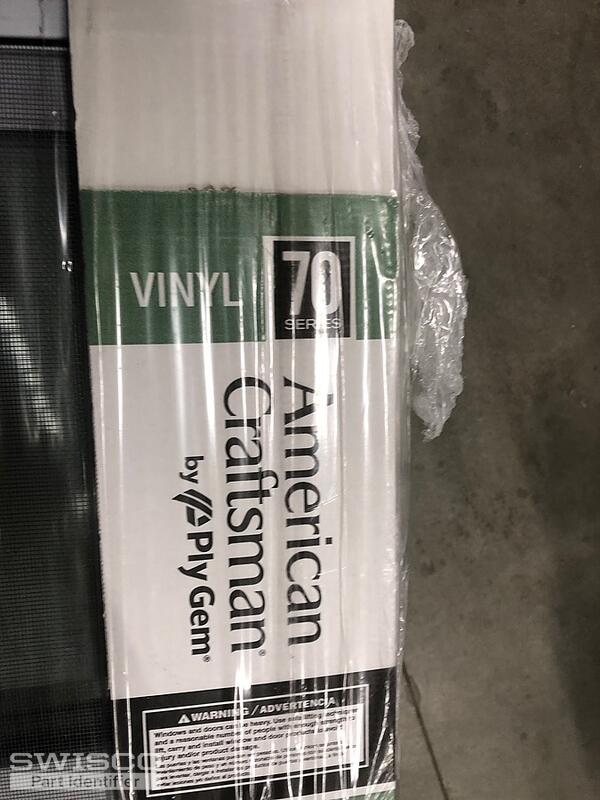

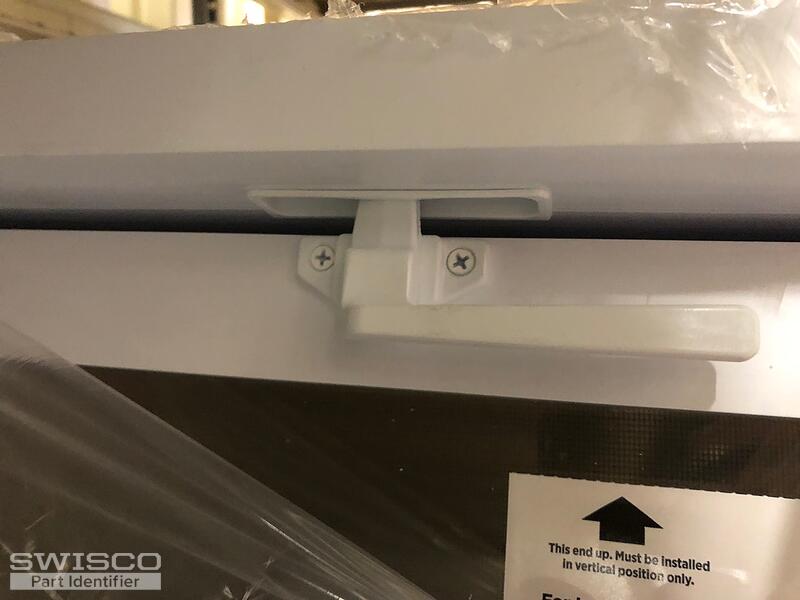

I would like this in metal versus the plastic one that was provided by American Craftsman provided for their 70 Series Hopper.
hopper keeper Metal Hopper window lock IMG_6216 Metal Hopper window lock
4 user uploaded images
4 Replies
Emily
Emily from SWISCO
Aug 6, 2024 10:44 am
SWISCO
EXPERT

Hi there!

Thanks for reaching out to us. Can you write out the distance between the two installation holes, measured from center to center? That should help us determine if we have a comparable match.

Handy Person from Philadelphia, PA
Aug 15, 2024 6:56 am

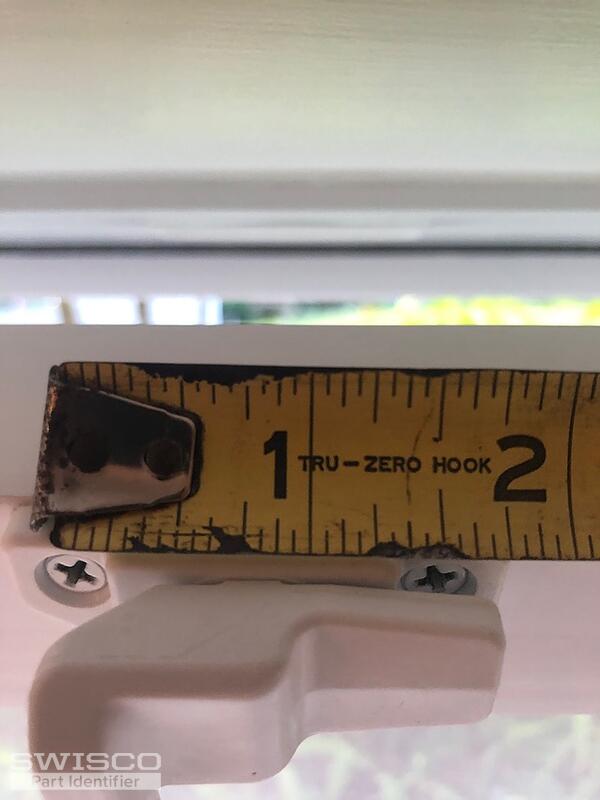

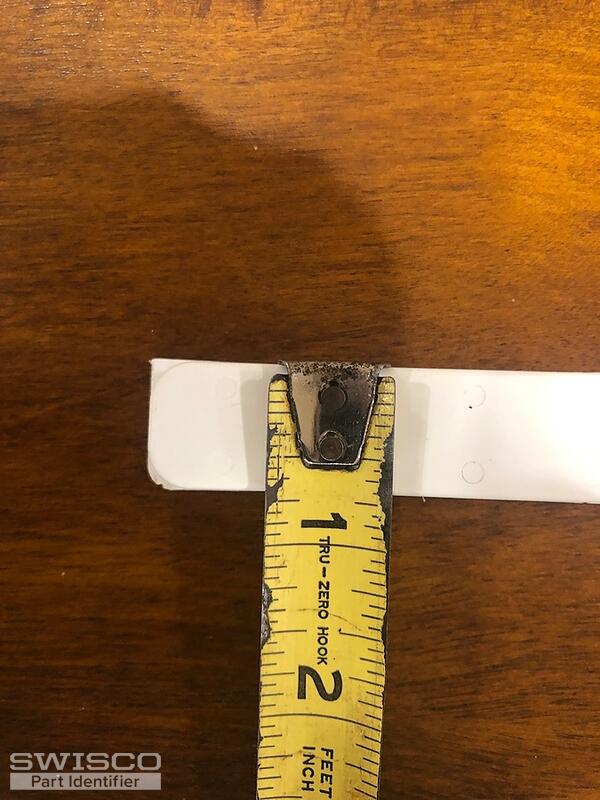

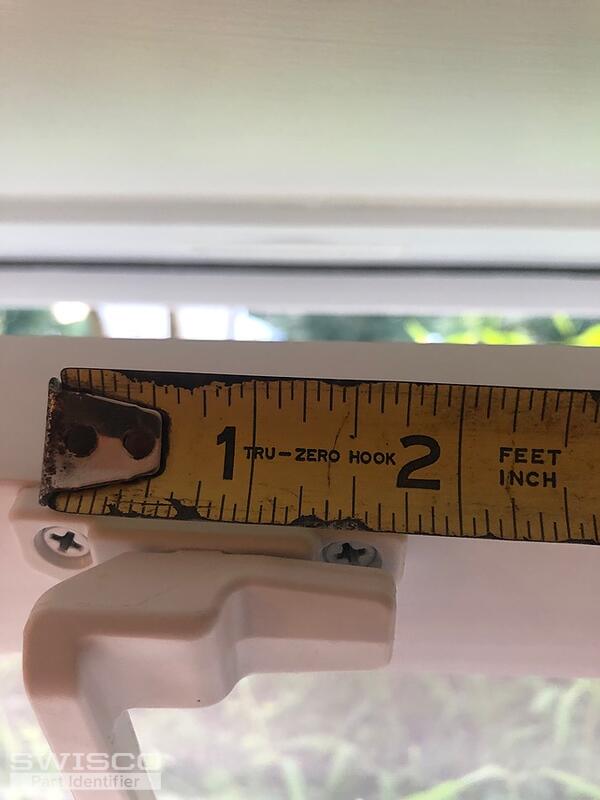

The distance between the two installation holes is 1 1/2". In addition to the metal handle I would also like for the insert to be metal.
hopper lock hopper lock hopper keeper
3 user uploaded images
Handy Person from Philadelphia, PA
Aug 15, 2024 7:19 am

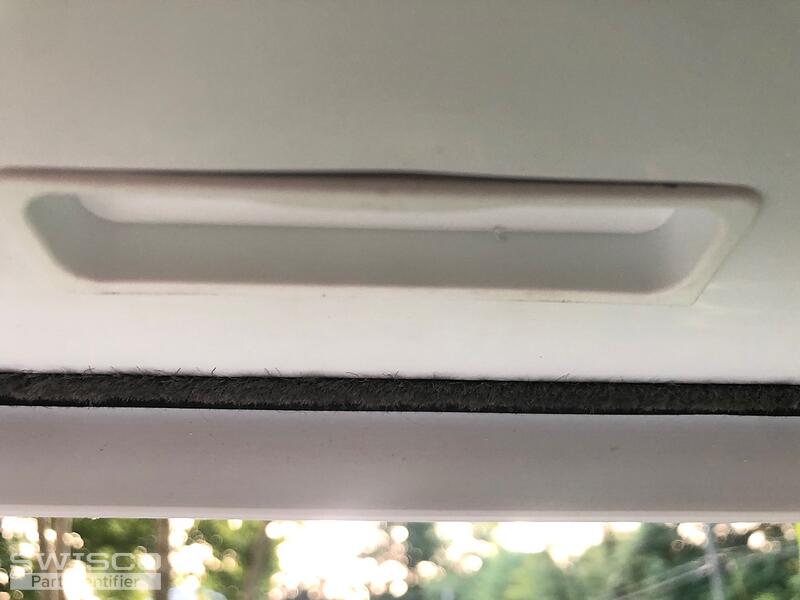

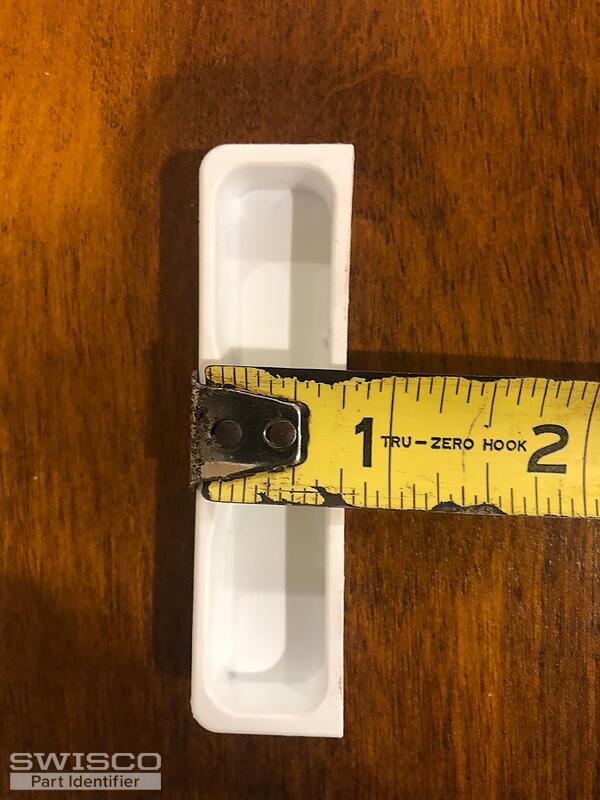

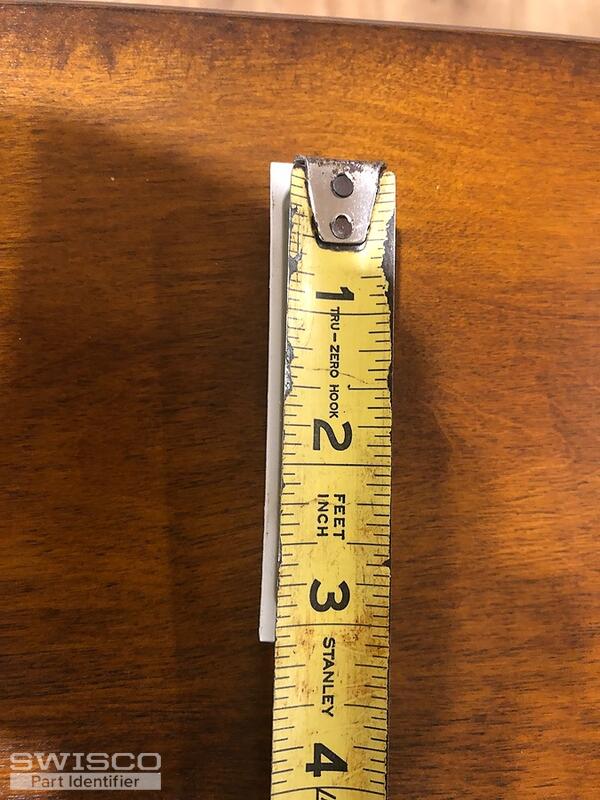

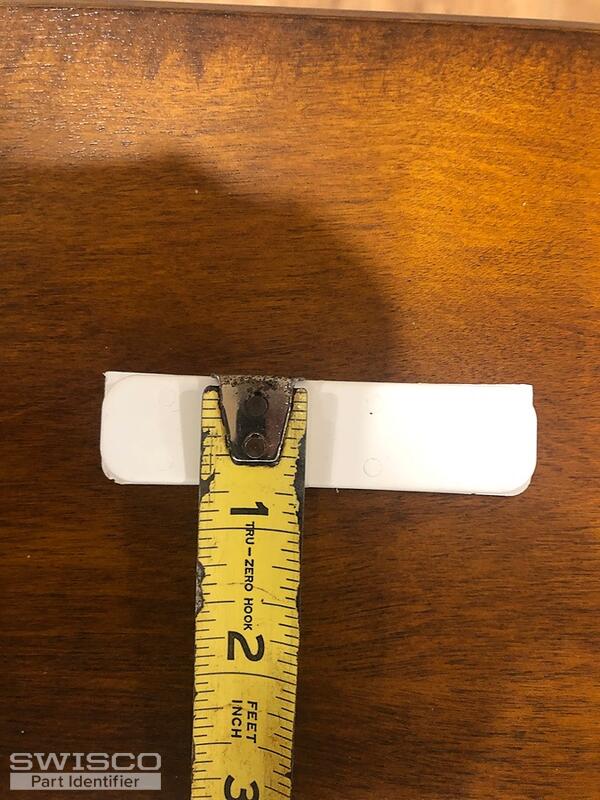

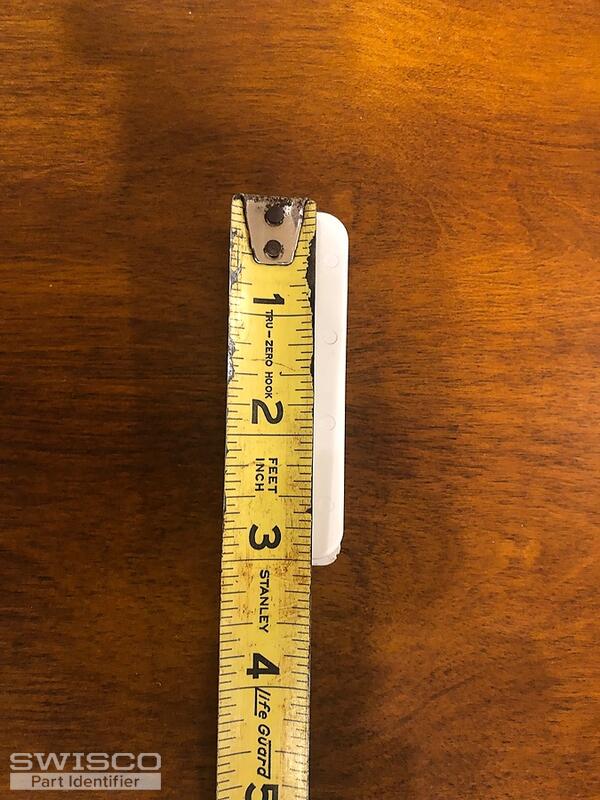

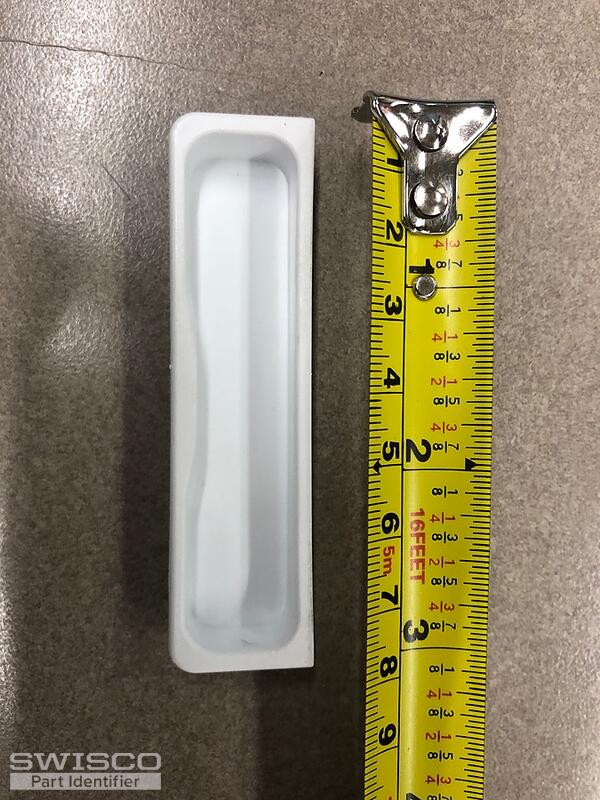

The current plastic insert has the following dimensions:

Outside:
3 1/8" long by 3/4" wide by 7/16" deep

Inside:
2 15/16" long by 3/4" wide by 7/16" deep
hopper keeper hopper keeper hopper keeper hopper keeper hopper keeper
5 user uploaded images
Emily
Emily from SWISCO
Aug 15, 2024 12:40 pm
SWISCO
EXPERT

Thank you kindly! The 38-064 and 38-065 are of a similar style and measure 1-1/2" on the installation hole centers. Take a look at the specifications and see how they align with yours.

Unfortunately, we don't sell a match for the keeper. The 38-108 is compatible with these locks but we aren't sure it would work for you. I am very sorry for the inconvenience.

Alternate image for 38-064
Alternate image for 38-064

Alternate view of 38-064 Cam handle lock with dimensions
Alternate view of 38-064 Cam handle lock with dimensions

Alternate image for 38-065
Alternate image for 38-065

Alternate view of 38-065 Cam handle lock with dimensions
Alternate view of 38-065 Cam handle lock with dimensions

Detail of 38-108
Detail of 38-108
