Metal bi-fold closet doors

Question

Good afternoon,

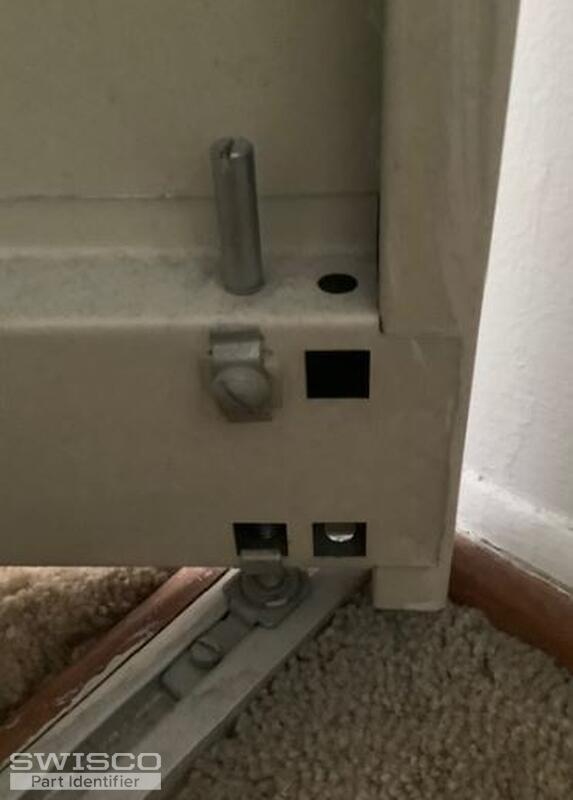

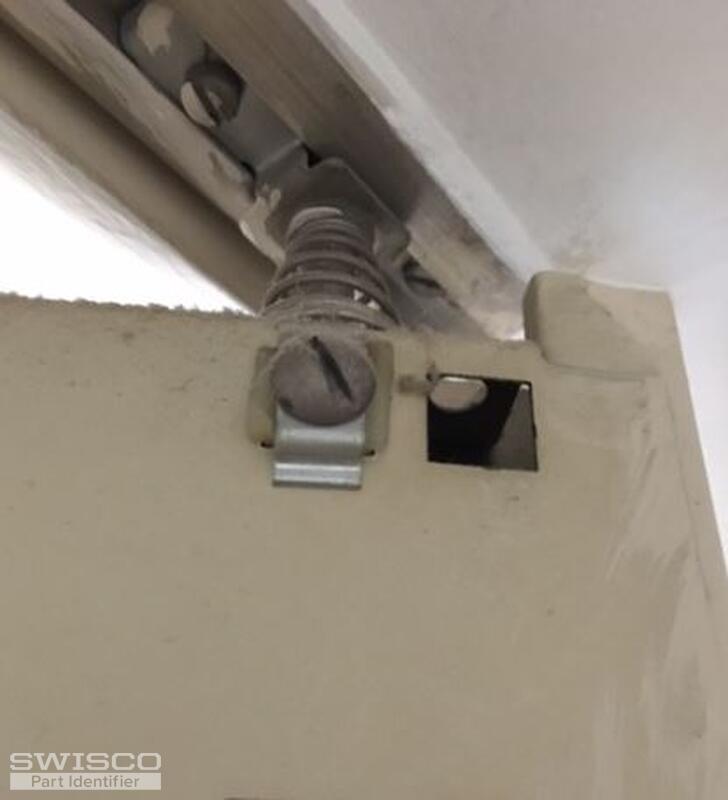

I have metal bi-fold closet doors that are in desperate need of repair. Per my conversation with C.S., I have attached a few photos in hopes that you can guide me toward the required parts.

I look forward to hearing back. Thank you so much.

Paul · Accepted Answer

Hello, thank you for posting,

You are showing the old style Slimfold doors. Slimfold has made some changes and the new style pins will work on the old doors. For your replacements, you will need one 21-001 bottom corner adjusting pin. Your pivot rod clamp, 21-154 looks fine. The other three pins will be the 21-007, one for the top pivot and the other two for the top and bottom guide pins. There no need for the rod clamps for these pins. The pivot bracket will be the 21-200. All the door's adjustment is done by the bottom pivot pin, 21-001 to square up and operate the door. See our media guides for additional help.
