Metal bifold top/bottm

Contractor from Georgia

Jul 17, 2024 3:02 pm

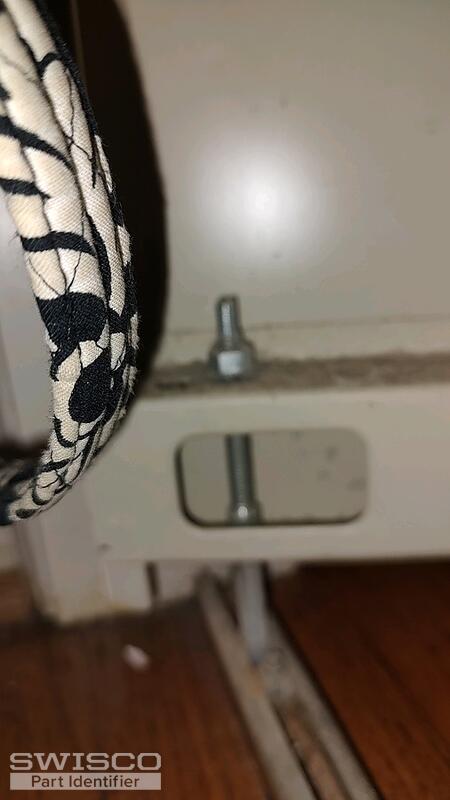

I am needing hardware for a project that we are working on. They are metal louvered bifold doors. Needtop and bottom hardware for 1 set. I have attached pictures of each. I estimate the home to be built in the 1920's but not sure when the doors were added, possibly original. Any and all help would be appreciated.

4 user uploaded images

5 Replies

Paul from SWISCO

Jul 19, 2024 1:42 pm

Hello,

We'd be happy to look into this for you but we would need to see clear photos of the bifold pins you need fully removed from the door to compare to our inventory. We'll also need written-out dimensions included in our guide here. Thank you.

Contractor from Georgia

Jul 29, 2024 9:50 pm

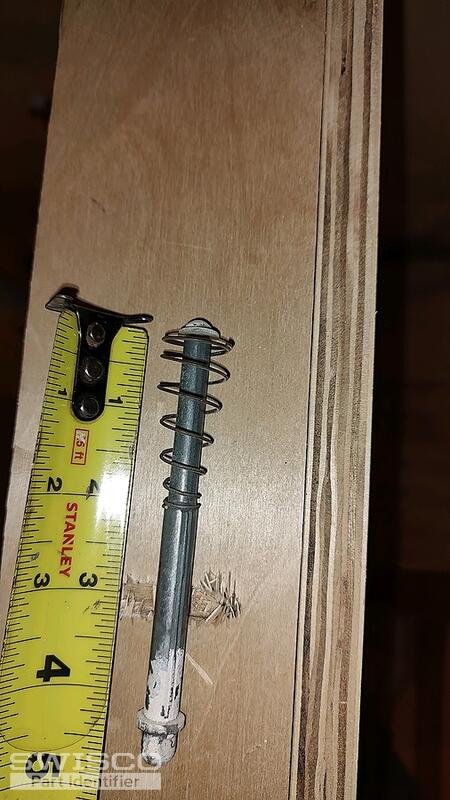

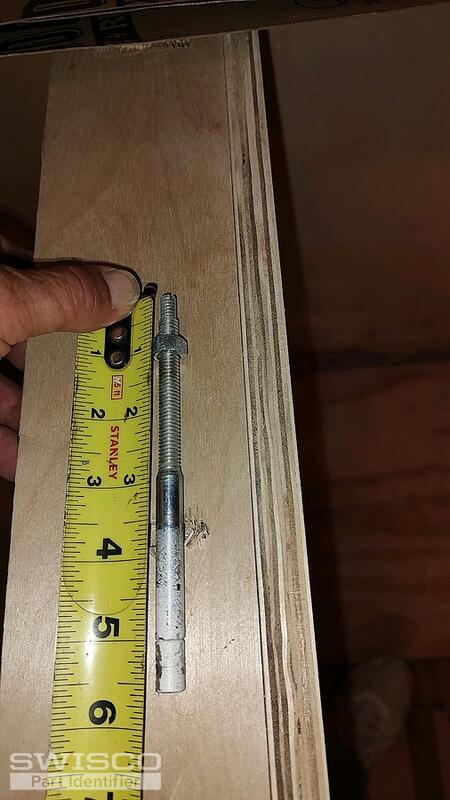

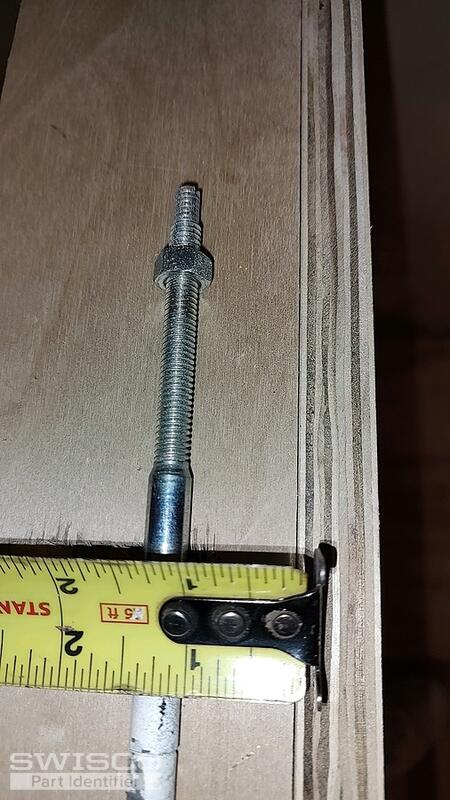

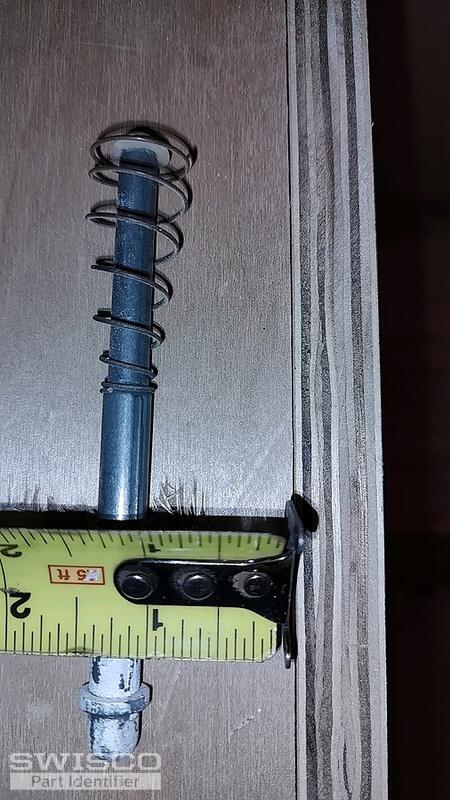

Here are more pictures and sizes.

4 user uploaded images

Paul from SWISCO

Jul 30, 2024 9:24 am

We did carry the original Float-A-Way pins shown in your photos at one time but, unfortunately, they are no longer available. We still have some of the original parts such as the 21-104 nylon cap, 21-152 grommet, 21-153 bushing, and the 21-033 bottom guide pin.

If you need to replace all the pins, we carry a new style Float-A-Way pins including the 21-022, 21-023, and 21-024 that should work for your door. Review all of the related options and see what you think.

Contractor from Georgia

Jul 30, 2024 11:16 am

Thank you very much I will give these a try.
