Metal full size hi fold closet doors (2) panels

A handy person from Naples Florida says:
November 17, 2021

Hello,

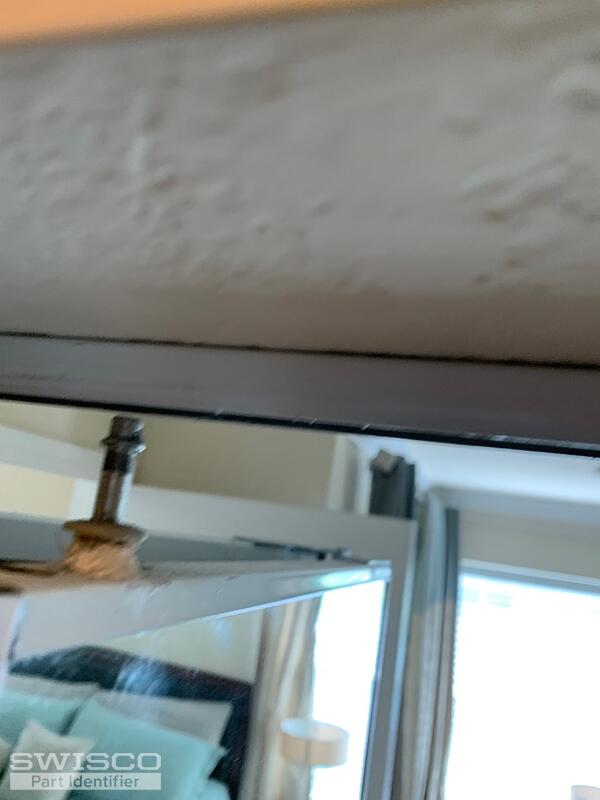

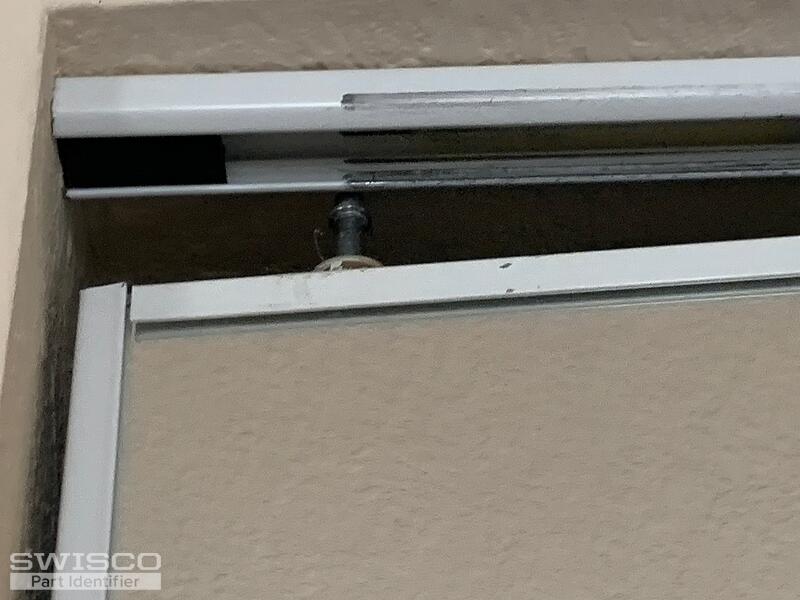

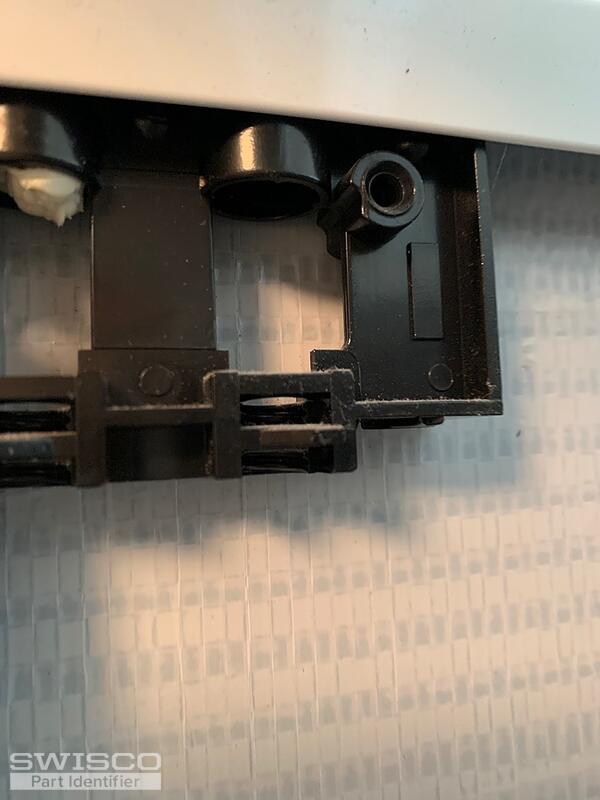

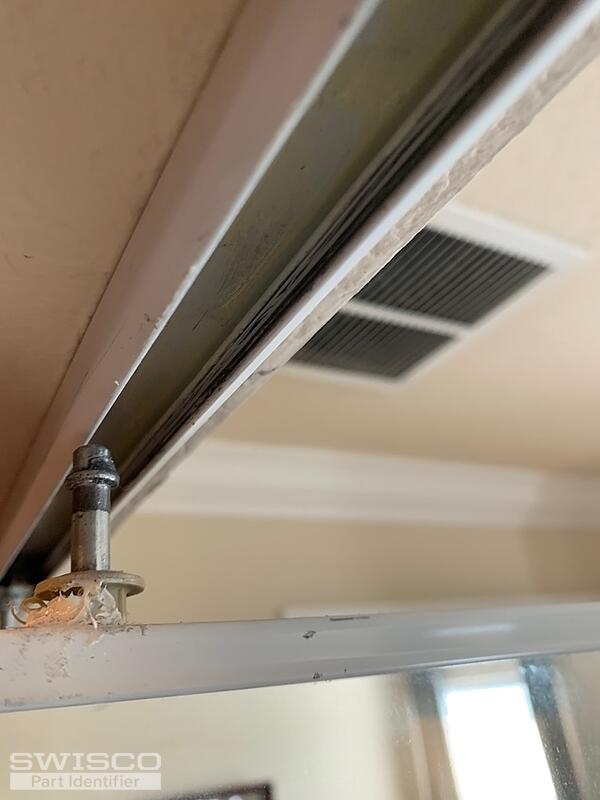

These appear to have been rigged using wood door hardware . Would you happen to have the correct pins? And new track rollovers ( top/bottom)

Thanks

Terry

Thumbnail of the uploaded file named B30A9D0C-C95A-4FB5-8FEB-DB3C56A4A7DF.jpeg
Thumbnail of the uploaded file named DFF7034E-32E5-434A-B298-4E18836F52B0.jpeg
Thumbnail of the uploaded file named DA3437B9-A51E-4DFA-A1A9-9C4D47A2EC7C.jpeg
Thumbnail of the uploaded file named B6350BCD-6488-43BE-8564-CC0B44367E68.jpeg
Thumbnail of the uploaded file named C989E6F2-325E-4B56-91A1-B5D8C8D03E87.jpeg
Profile picture of Paul
Paul from SWISCO responded:
November 23, 2021

Hello,

It looks like your closet doors use the 23-109 corner connector. The track would be the 36" long 21-152, which comes with the nylon roller guide and pivot bracket. If you need the spring-loaded pin as well, see the 23-115. We also have the bottom adjusting pin, our product code 23-116. Look over these parts and let us know if you have any other questions.
Corner Connector
Corner Connector
23-409
$1.45
36" Low Profile Track Assembly
36" Low Profile Track Assembly
21-452
$11.25
Snugger
Snugger
21-286
$0.97
Spring Loaded Top Pivot
Spring Loaded Top Pivot
23-115
$1.77
Bi-Fold Door Adjustable Bottom Pivot
Bi-Fold Door Adjustable Bottom Pivot
23-116
$1.97
