Quick Learner from California

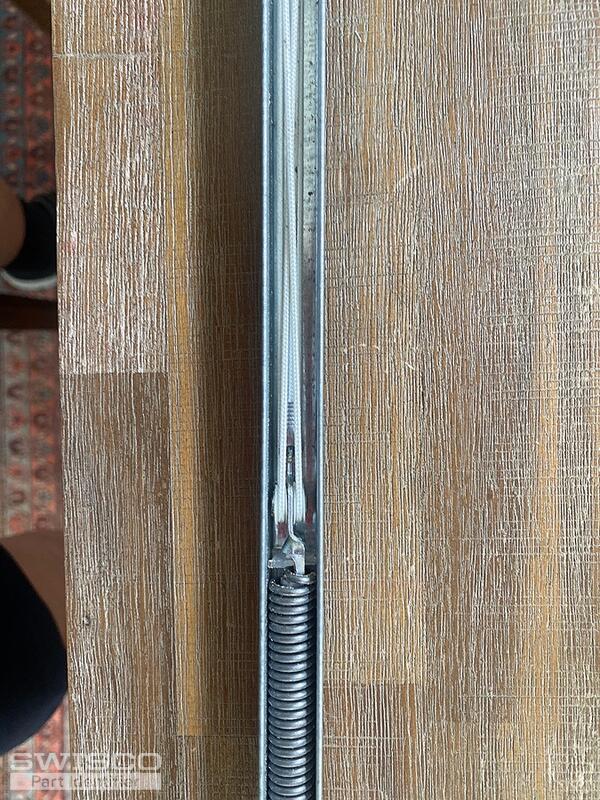

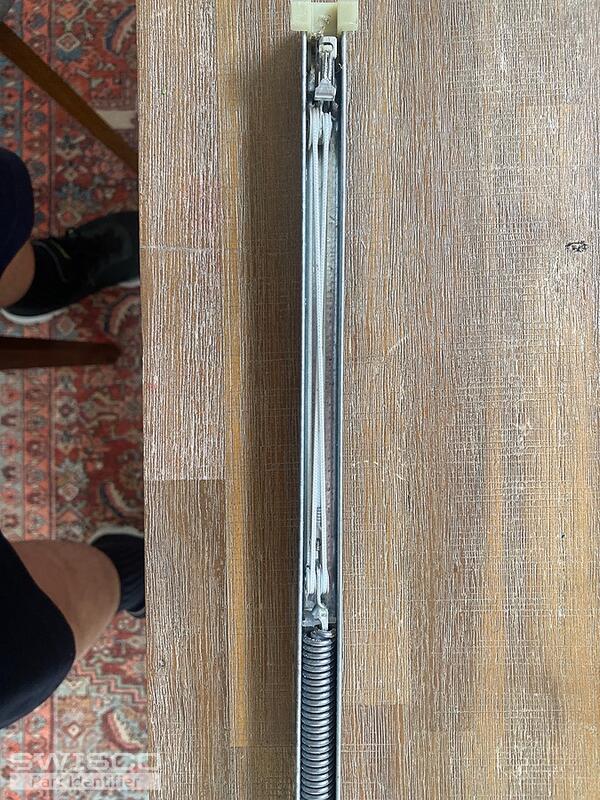

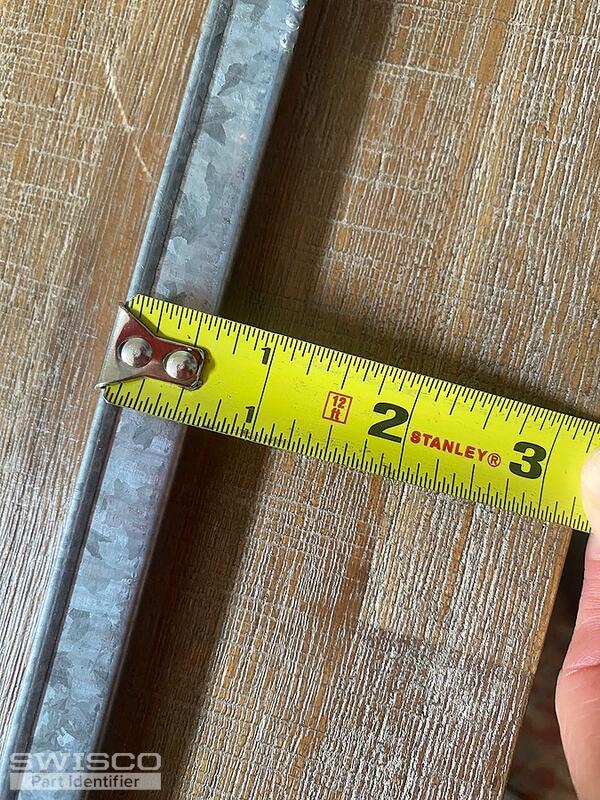

I included some pictures of the channel balance that I need . Hopefully you can help me identify the part.

The back is stamped 23 4 GP Caldwell, the length is 24 in trackdon weight 17 Lbs need the part number please

My name is GusThank you you for your

Gus

5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Gus,

Thanks for posting! I am confident we can supply you with the replacement balances you need but I'll need to see just one more detail to confirm the correct recommendation. May I see a photo of the pulley system in the center of the balance, where the spring and string meet?

Please feel free to reach out with any questions.

Quick Learner from California

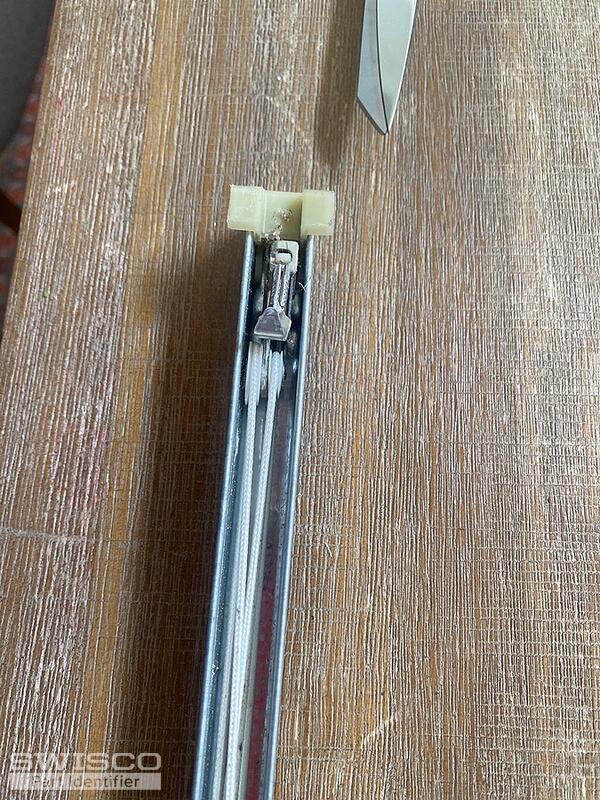

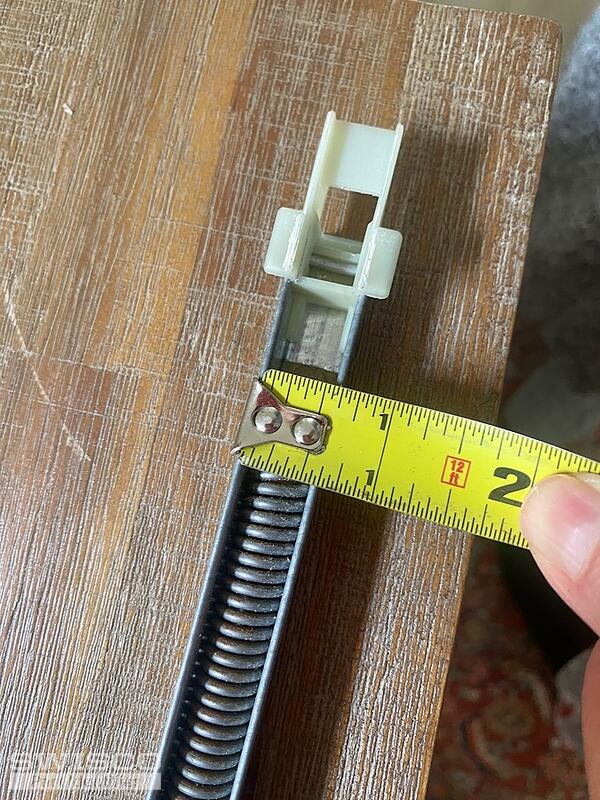

Thank you I'm including the pictures that you requested
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the photos! Your can use our either our S380-24 with a 1" shoe or our S385-24 with a 1-3/32" shoe to replace your Caldwell balances. To determine which series is the correct replacement for you, you'll need to confirm the measurement for the depth of your shoe.

Your stamp would cross-reference to our 2340 stamp option, which can support a sash weighing 18 to 23lbs. The 2330 stamp will support a sash weighing 15 to 18lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
