Migard channel balance

Question

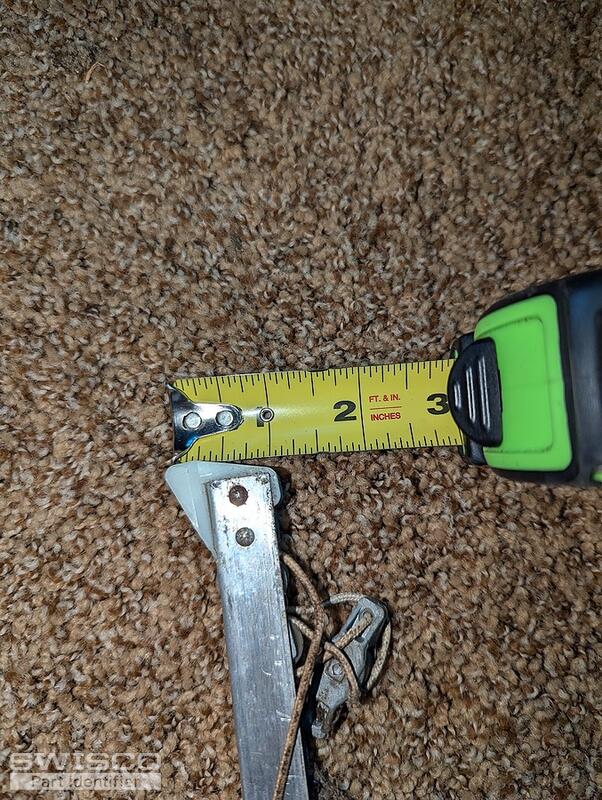

21in long, shoe is Probably 1 3/32 (bits are broken, measured the ears of the mating window)
Stamped 2040
Believe I need a 385 ?

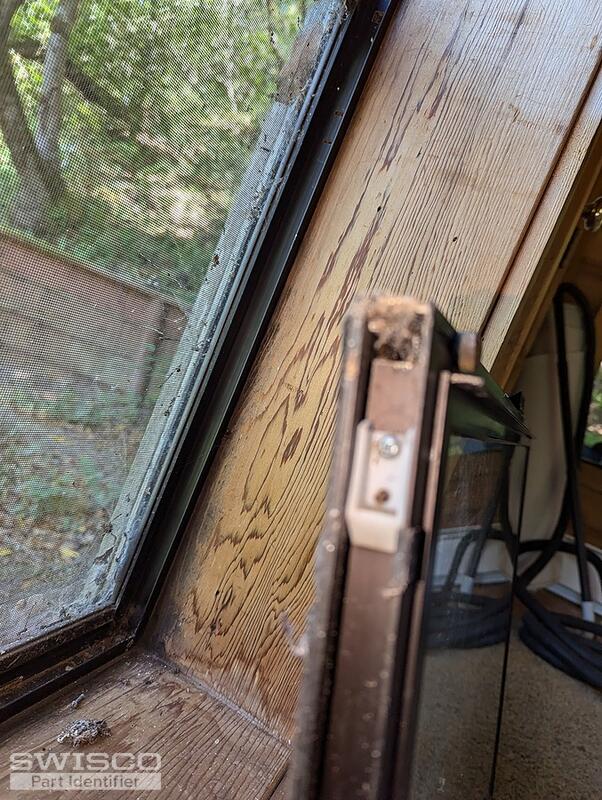

Which sash guides?

Emily · Accepted Answer

Hello there!

Thanks for reaching out to us. It looks like the top and bottom fittings of the balance are wingless. With that in mind, my recommendation would be the S351-21 or S390-21 depending on the depth of the bottom shoe. You'll have to measure as shown below to determine the best match.

The 18-008 and 18-008H come to mind for the top sash guide. I recommend you compare our specifications with an undamaged version to see which one aligns with yours.

Comparison of the S351 and S390 balance shoes.

Detail of 18-008

Alternate view of 18-008

Dimenisons for 18-008H

Alternate view of 18-008H
