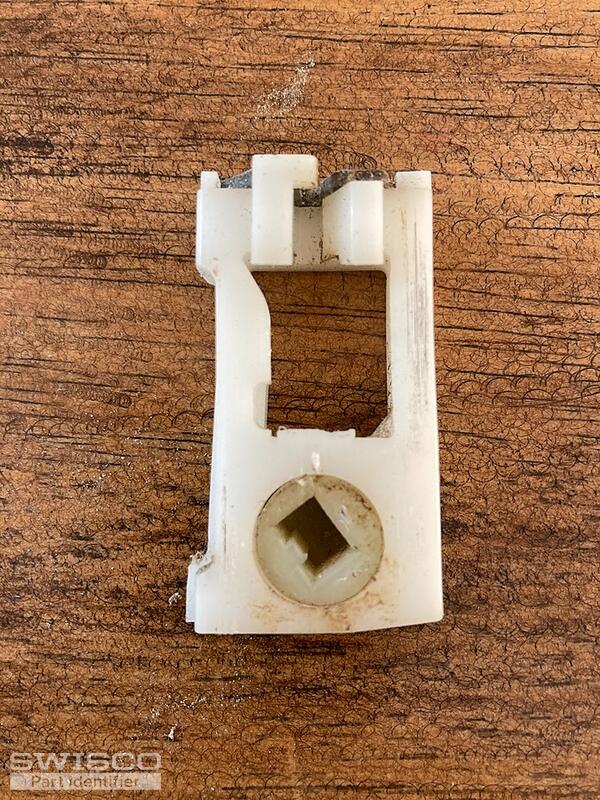

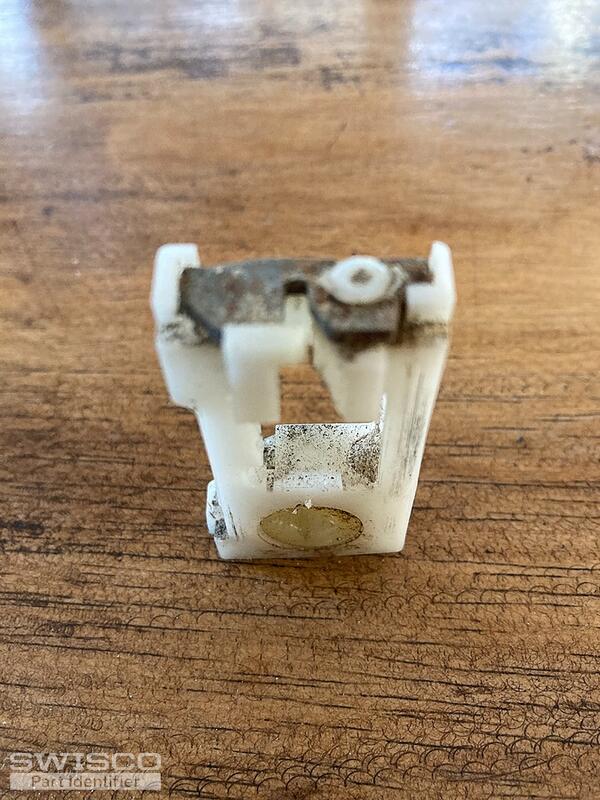

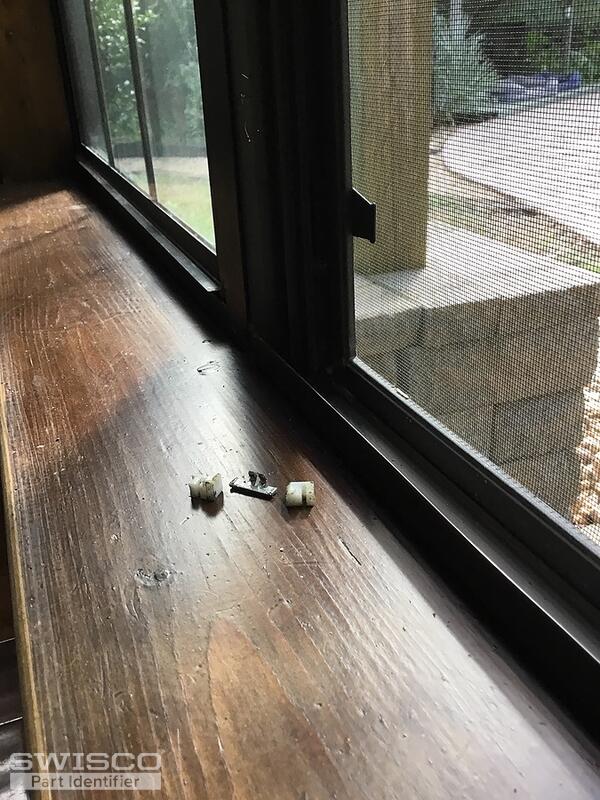

I am looking for slider guide clips (plastic or nylon) for Milco aluminum single hung, tilt windows. The balances are red spiral and the two tabs on the balance connect to the guide clips. Photo attached of clip and pieces of broken clip on sill. I need 20 of these slider guide clips and a tension tool for tilt balance.
Thank you
Milco Slider Clips
Home Owner from Tallahassee, FL
Oct 21, 2021 3:36 pm
2 user uploaded images
4 Replies
Emily from SWISCO
Oct 27, 2021 9:24 am
Hey there!
This looks like a spiral balance for a tilt window. If that's the case, see either our Series 900 (3/8" diameter) or our Series 600 (5/8" diameter). As for the pivot shoe, can you remove that from the window and show us? We will also need you to write out the thickness and width. We carry many different pivot shoes and this will help us narrow down your options.
Home Owner from Tallahassee, FL
Oct 27, 2021 4:41 pm
The pivot shoe is 1 13/16" tall; 1" wide and 3/8" thick.
2 user uploaded images
Emily from SWISCO
Oct 28, 2021 8:27 am
Thank you! Take a look at our 15-045 and see if our dimensions match up to the original pivot shoe.
