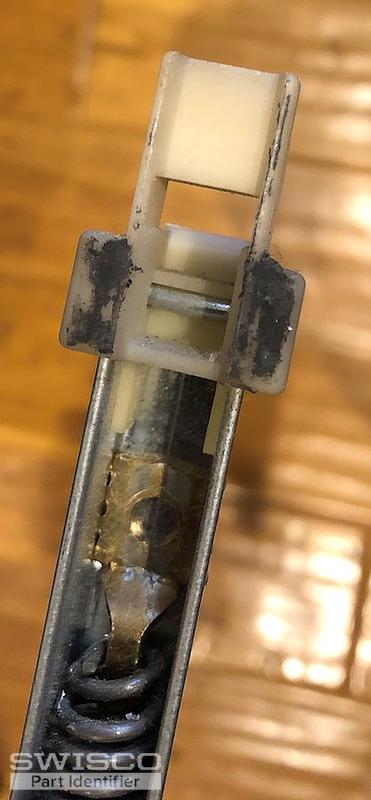

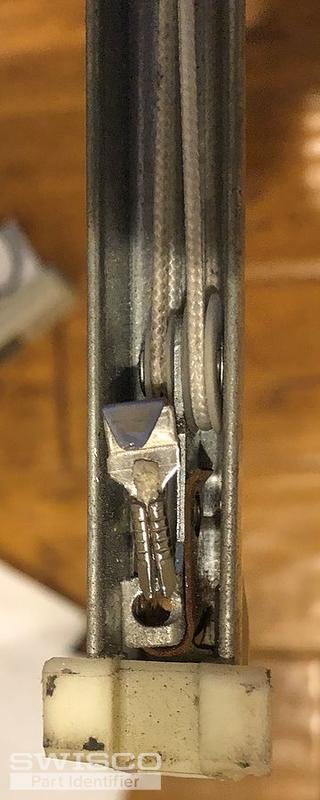

Hello, can you conform I need S385-27 2650 based on the attached photos and stampings?
The width of the bottom show perpendicular to the window sash is 1 and 3/32 as in the picture on the website. The length of the metal along the side of the balance is 27" as in the picture on the website. I attached other photos of my actual balance. Thanks!
Milgard 26 4 JW CMC 11
Quick Learner
Apr 9, 2020 11:53 am
5 user uploaded images
4 Replies
Quick Learner
Apr 9, 2020 11:58 am
I should mention the window weights 27 lbs. The dimensions seem the match the attached photos from the website.
Quick Learner
Apr 9, 2020 3:30 pm
sorry, my scale had an offset, so the window actually weighs 24 lbs. So please confirm I'd order S385-27 2640. Thanks!
Casey from SWISCO
Apr 10, 2020 9:26 am
It sounds like you did everything correctly. You identified a replacement balance, you measured the depth of your bottom shoe, and you even weighed your sash. I feel good about you replacing your balance with our S385-27. This comes assembled with a 19-005 balance top and 15-004 bottom balance shoe. You can go with the 2640 option that supports a sash weight of 19-26 pounds. So, it sounds like you're good to go. Great job!
