Milgard 5220 26x30, markings; 14 4 JQ CALDWELL, Metal Channel length H=15", Channel; 5/8"x5/8"

Home Owner from Guam

May 30, 2018 1:35 am

Milgard series 5220; W=2'- 6" x H=3'- 0"
Markings found; 14 4 JQ CALDWELL
Metal Channel section; 5/8"x5/8"
Metal Channel Length H=15"

3 Replies

Quick Learner from Guam

May 30, 2018 8:11 am

I am looking for Milgard channel balances (2 EA) for W=2'-6" x H=3'-0" window sash.

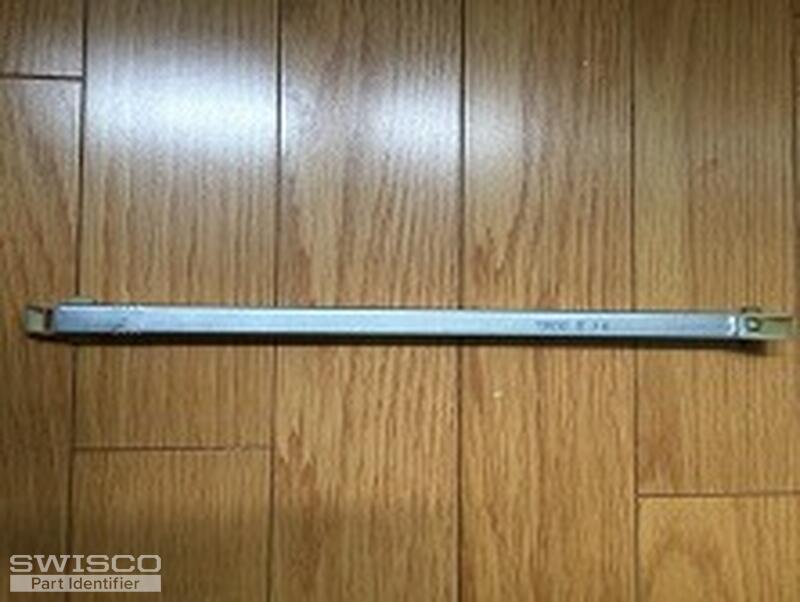

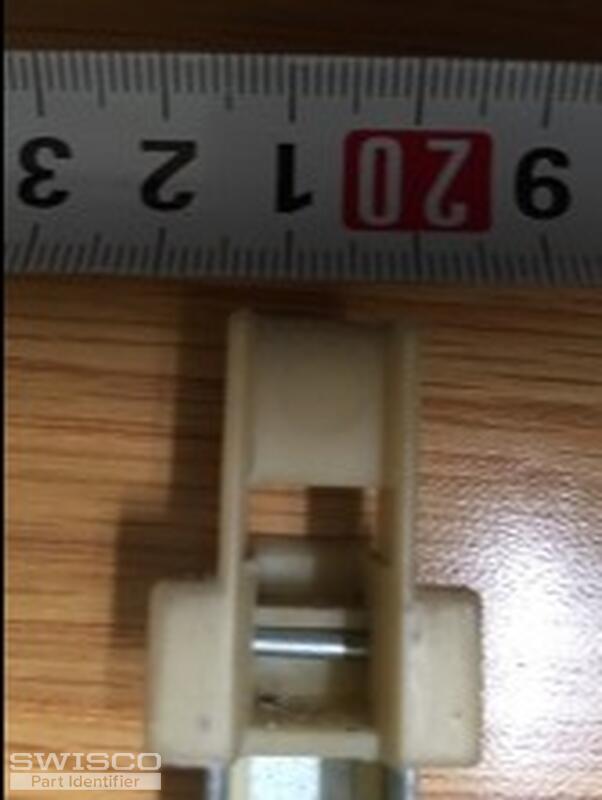

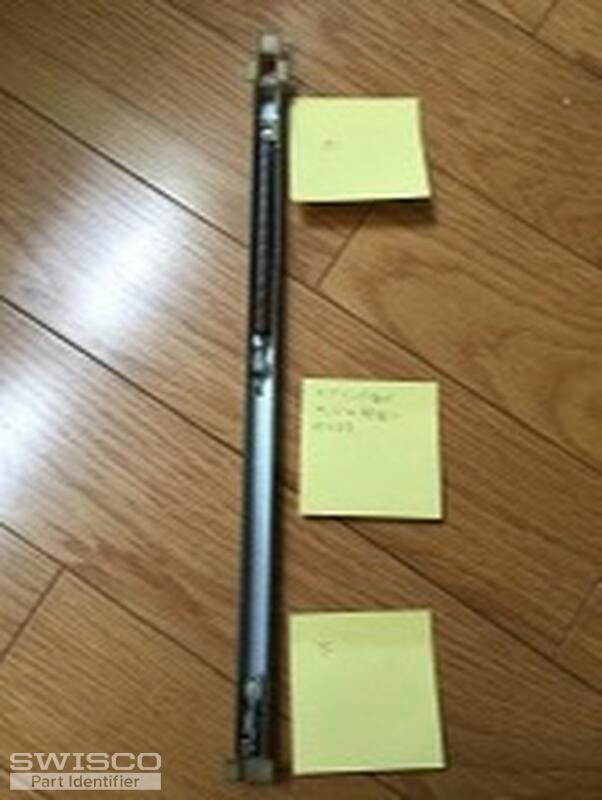

3 user uploaded images

Tom from SWISCO

May 31, 2018 11:25 am

It looks like you may have the shoe shown below. If so, you have a Series 385 balance: S385-15. Select "1440" for an option when you place your order online.

Alternate view of 15-004
