Milgard Channel Balance

Home Owner from Midpines, CA

Aug 1, 2019 3:14 pm

Hi,

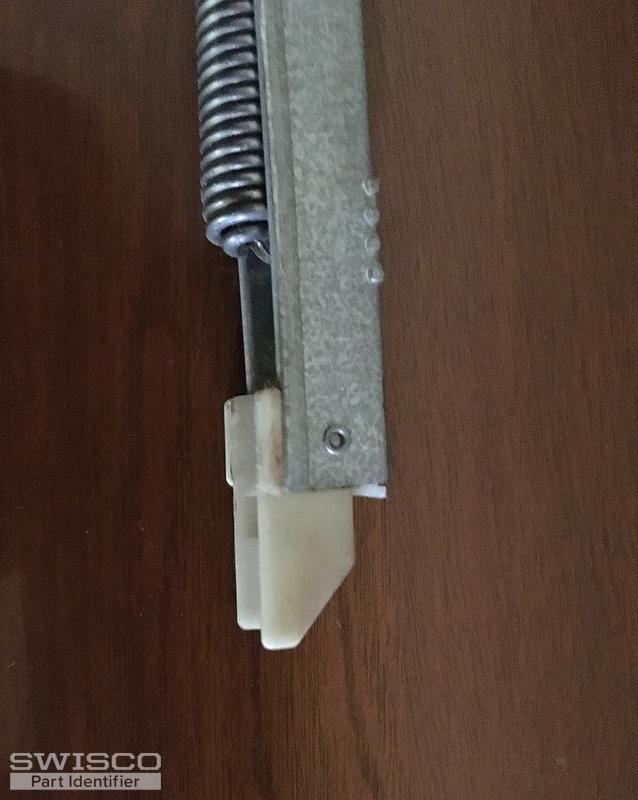

Trying to identify this balance to order a replacement, It measures 27" x 1/2" and you can see the Milgard numbers in last picture. I have replaced them before but in that case Milgard had sent them under warranty.

Please let me know.

Thanks,

Jon

4 user uploaded images

8 Replies

Bob from SWISCO

Aug 6, 2019 2:29 pm

Hi Jon. Confirm that the metal channel, not including the nylon fittings at either end, is 27" long. If so, see our S380-27 or S385-27. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You will need a stamp option of 2650. Let me know if you have any other questions.

Home Owner from Midpines, CA

Aug 6, 2019 4:23 pm

Hi Bob,

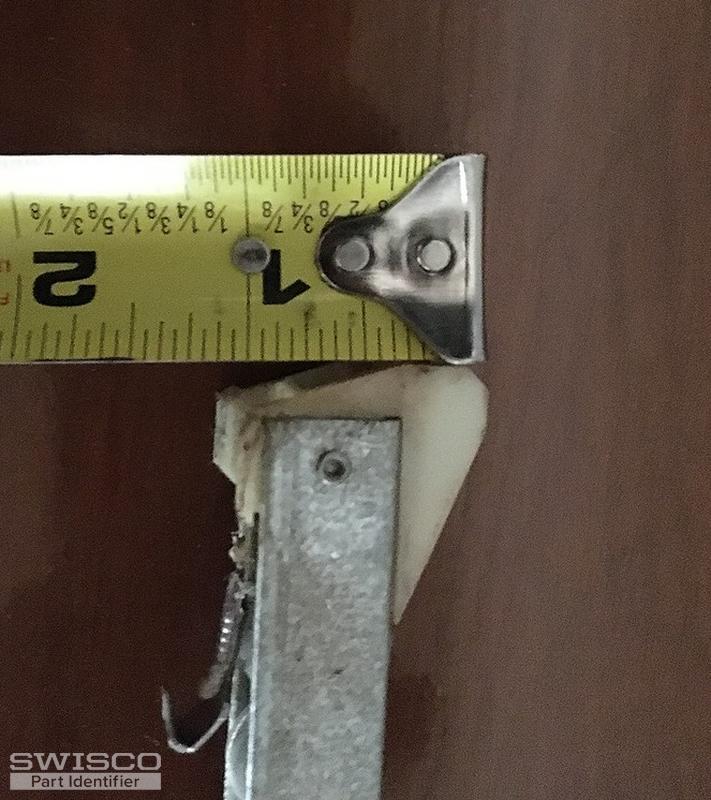

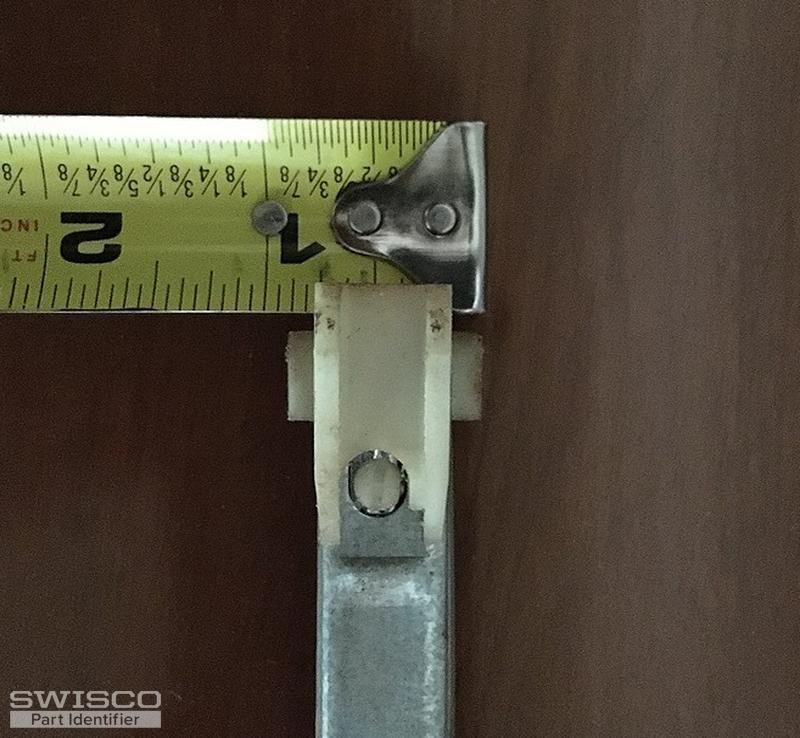

I took a couple pictures of just the shoe, it looks like it is 1" if I am understanding this right. I also double checked the metal channel length and it is 27".

I think that makes it this one?

S380-2727" Series 380 Channel Balance
S380-27 $9.55
option: 2650 (an additional $0.75)

Jon

2 user uploaded images

Bob from SWISCO

Aug 7, 2019 10:11 am

Thanks for the reply, Jon. I think it's best to double-check that depth measurement. So basically, if you stood the balance up like how it sits in the window, the 'depth' is the distance between the toe and heel of the bottom nylon attachment. For the Series 380, the depth is 1"; for the Series 385, the depth is 1-3/32". See the picture below for an illustration. You are correct that you'll need either the S380-27 or S385-27, with a stamp option of 2650.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Midpines, CA

Aug 12, 2019 8:01 pm

Hi Bob,

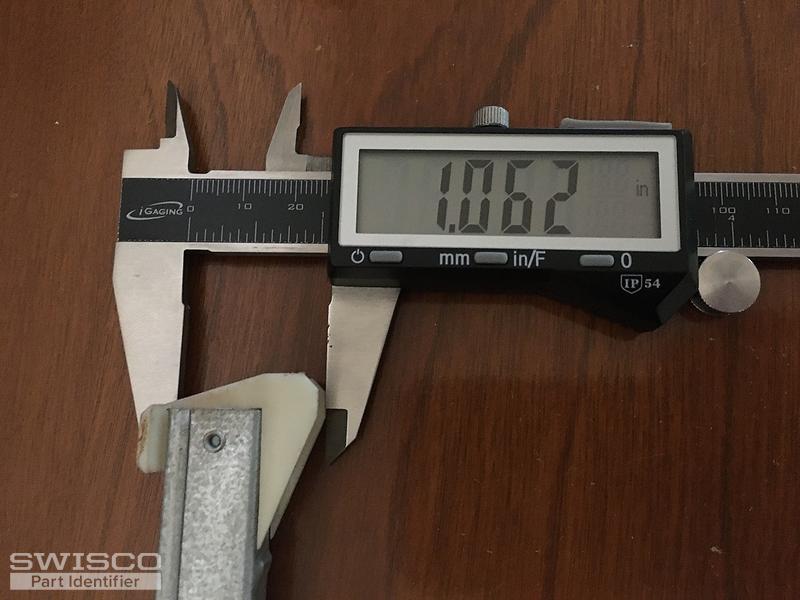

I came up with 1.062, 1 3/32 would be 1.0937.

I am thinking this is an S385 with some wear, or maybe I am just measuring the wrong spot as the little "ears" are angled outward.

Do you know if anything >1" puts me safely in the S385?

How hard is it to return them if I end up needing the S380's?

Thanks,

Jon

1 user uploaded image

Bob from SWISCO

Aug 13, 2019 7:01 am

Thanks for the reply, Jon. You're absolutely right: even if it's a little less than 1-3/32", so long as it's any greater than 1", you're dealing with a Series 385; wear and tear is typically the culprit. Let me know if you have any other questions. If you do happen to need to return anything, you can see our Return Policy here.

Bob from SWISCO

Aug 14, 2019 8:52 am

Awesome. Let me know how you make out, Jon. And many thanks for considering our business, we really do appreciate it.

Home Owner from Midpines, CA

Aug 14, 2019 9:27 am

Hi Bob,

Just wanted to say thanks for all your help.

I ordered 4 27" Series 385 Channel Balance S385-27$9.55
option: 2650.

Jon
