Milgard ChannelBalance and Sash Guide

A home owner from Torrance, CA says:
May 11, 2023
Require assistance in identifying channel balance and sash guide parts for Milgard Window.

I looked on all sides, including inside the channel balance and could not find any markings or numbers that would help identify the part.

Other smaller Milgard windows in the home have channel balances with number markings on them but the window size I'm trying to fix doesn't have any markings.

The window dimensions are approximately 33.5" width and 58" length.

Please let me require any other info.
Thumbnail of the uploaded file named 8234BD53-F128-4161-84C9-7AFEEEAE1840.jpeg
Thumbnail of the uploaded file named C3666E71-D6AB-4ED3-BB2F-489480EA7E46.jpeg
Thumbnail of the uploaded file named C372C877-FA47-46B3-A64A-033FC0BF00D2.jpeg

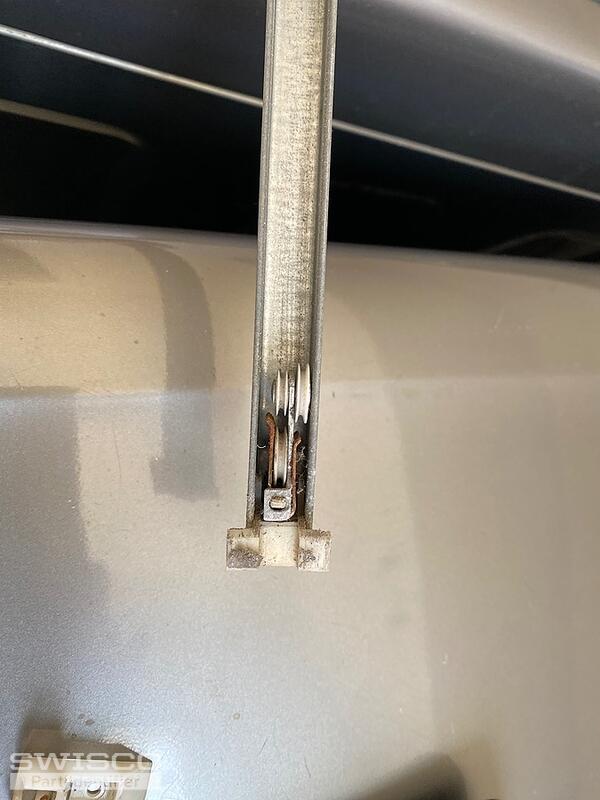

Thumbnail of the uploaded file named F725A00F-9915-4B0D-A12D-F6ED0AF0C38F.jpeg

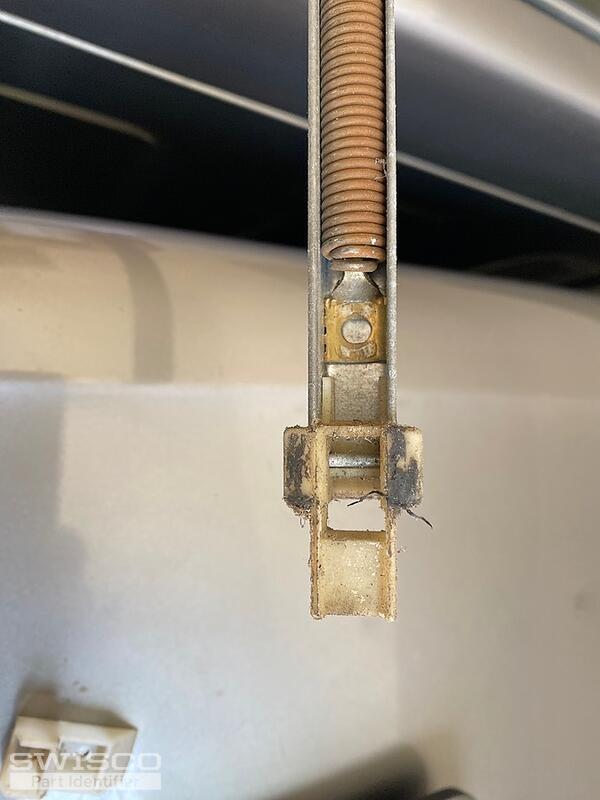

Thumbnail of the uploaded file named 7C1EA702-4905-42B4-B7B0-510A08493094.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 15, 2023

Hello,

We do not carry an exact match for the top sash guide shown in your photos, which isn't made anymore. However, our 18-009 may work as a replacement. Keep in mind that you will need to trim down the edges from the top of the guide to install them. Please note that altered parts are non-returnable. Take a look at the measurements below and see what you think.

Detail of 18-009
Detail of 18-009

Side view of 18-009
Side view of 18-009

As for your balances, this combination of attachments indicates that you could have either the S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
