Milgard Vertical Sliding Window Balancer 29 4 HW CMC 7

Contractor from Pleasanton CA
May 16, 2024 9:19 pm

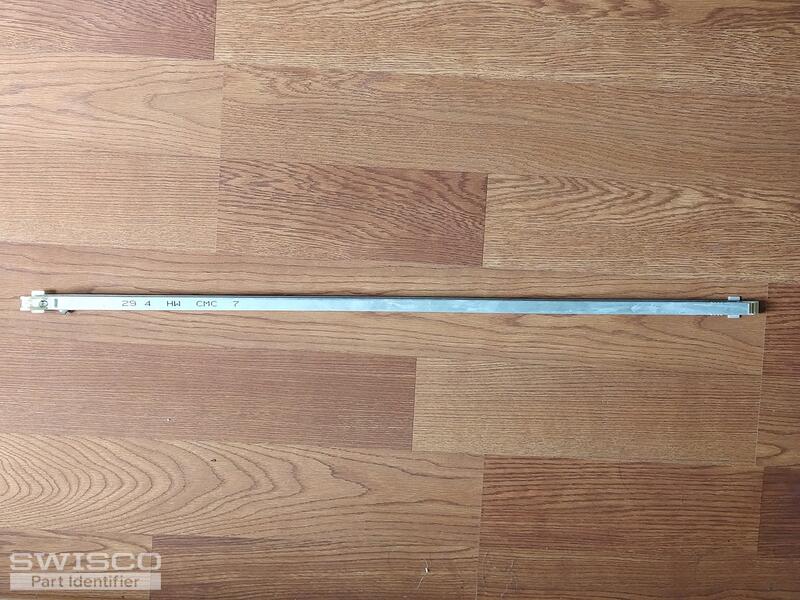

The balancer has following part number.
29 4 HW CMC 7

I need to purchase the replacement.

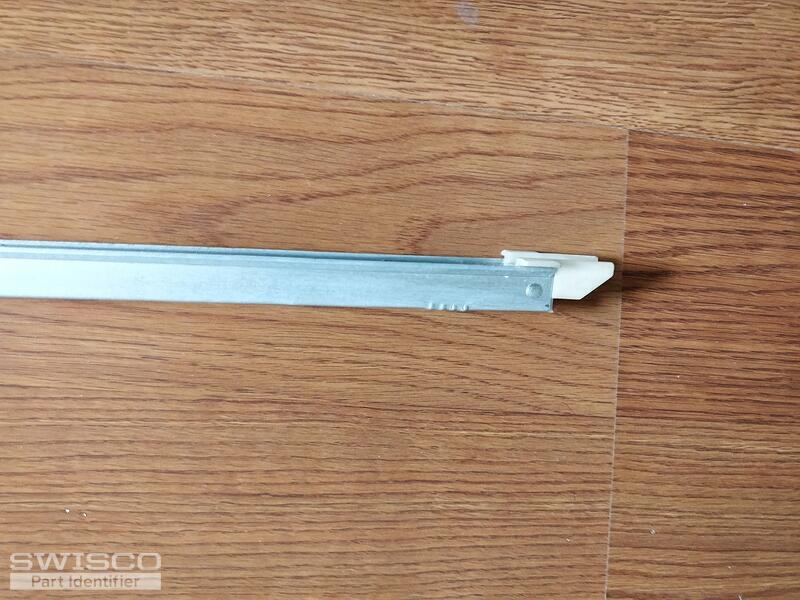

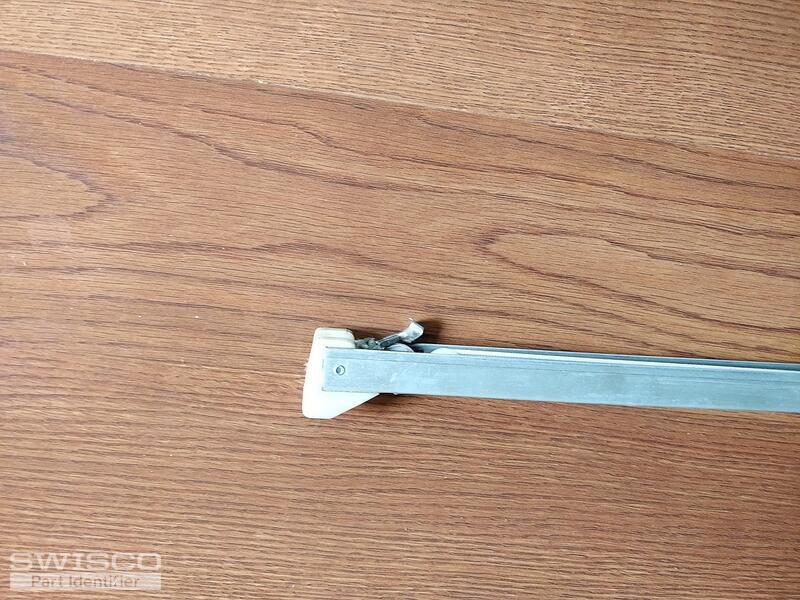

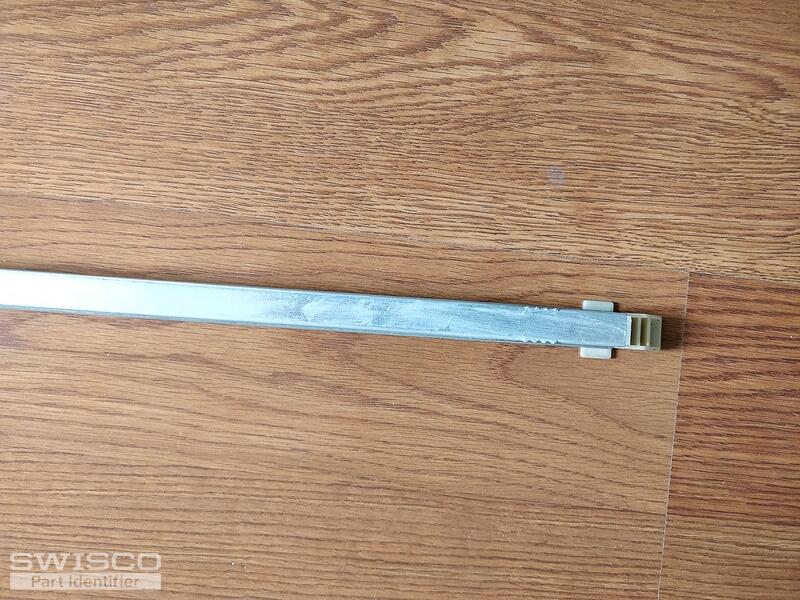

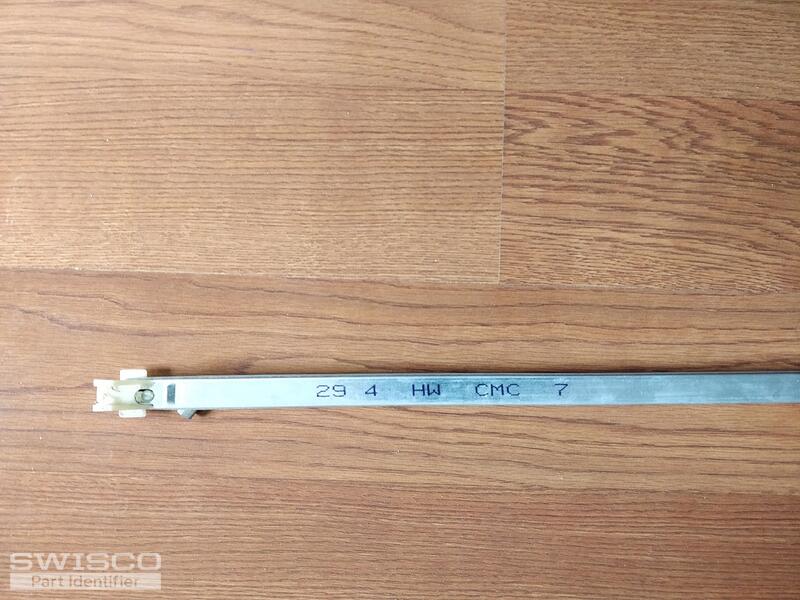

IMG_20211228_123920 IMG_20211228_123908 IMG_20211228_123904 IMG_20211228_123856 IMG_20211228_123842
5 user uploaded images
10 Replies
Home Owner from Pleasanton CA
May 16, 2024 9:23 pm
I am a "Home Owner", not a contractor. Sorry about the wrong selection.
Bob
Bob from SWISCO
May 16, 2024 11:43 pm
SWISCO
EXPERT

Hello there. No worries on the description--it's just for our organizational purposes. I am sure we can help you, but I want to verify a few details before proceeding:

  • Can you show me a few closer pictures of the bottom nylon attachment, or the shoe?

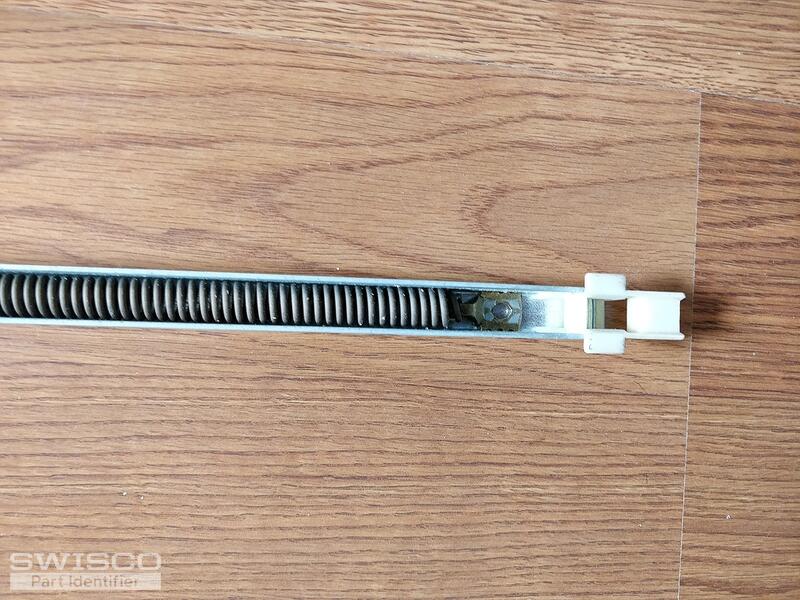

  • Can you show me the point where the metal spring and pulley system meet in the 'guts' or underbelly of the metal channel?

We should be able to narrow this down from there.

Home Owner from Pleasanton CA
May 17, 2024 12:20 am
I have attached 2 more photos. If more are needed, I will have to take the window out on the weekend.

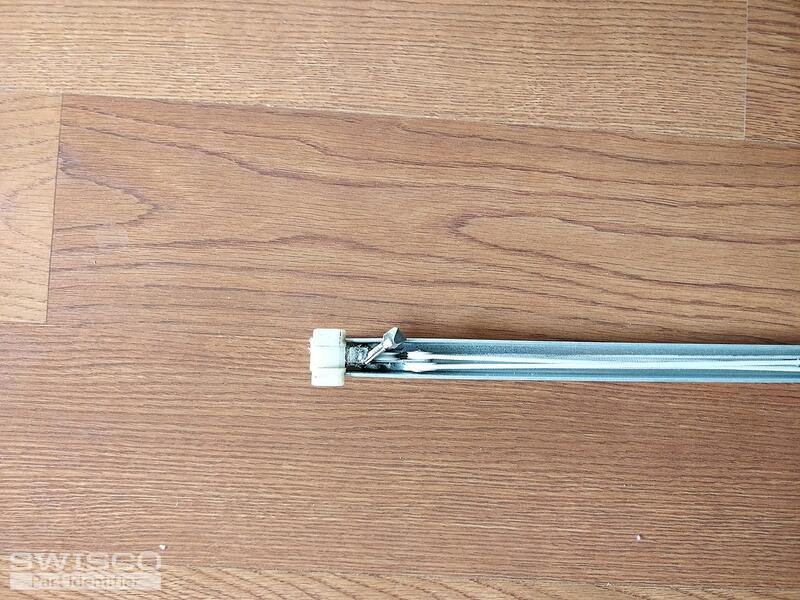

IMG_20211228_123859 IMG_20211228_123914
2 user uploaded images
Bob
Bob from SWISCO
May 17, 2024 2:48 pm
SWISCO
EXPERT

Perfect, thanks! Based on what I see here, you have either our S380-30 or S385-30, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

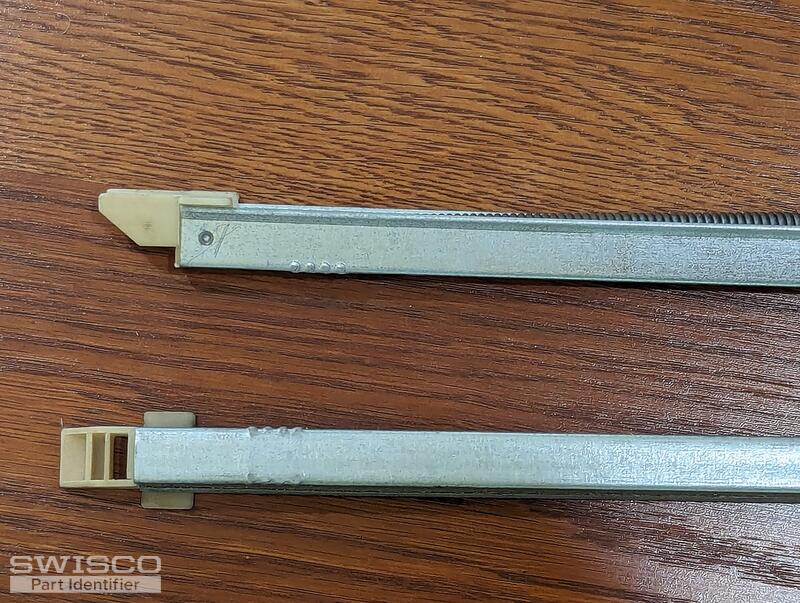

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Home Owner from Pleasanton CA
May 17, 2024 6:46 pm
Thank you
What are the shipping costs?
Will they be different if I purchase more items?

I am thinking of if trying out one pair of balances before I order all that I need to change.
Bob
Bob from SWISCO
May 20, 2024 8:31 am
SWISCO
EXPERT

Hello,

Once the balances are added to your cart, you can enter your zip code to calculate shipping costs. The quantity can be adjusted to determine different shipping pricing based on the amount. Let us know if you have any additional questions!

Home Owner from Pleasanton CA
May 27, 2024 4:19 am
Hello

I am adding 4 more photos. I think I would need the 1 3/32 size.
Can you please confirm?

Thanks

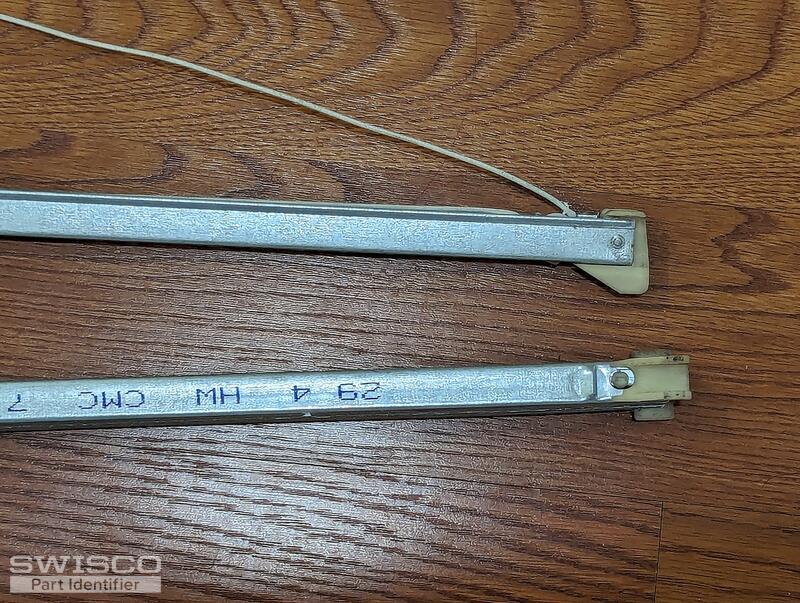

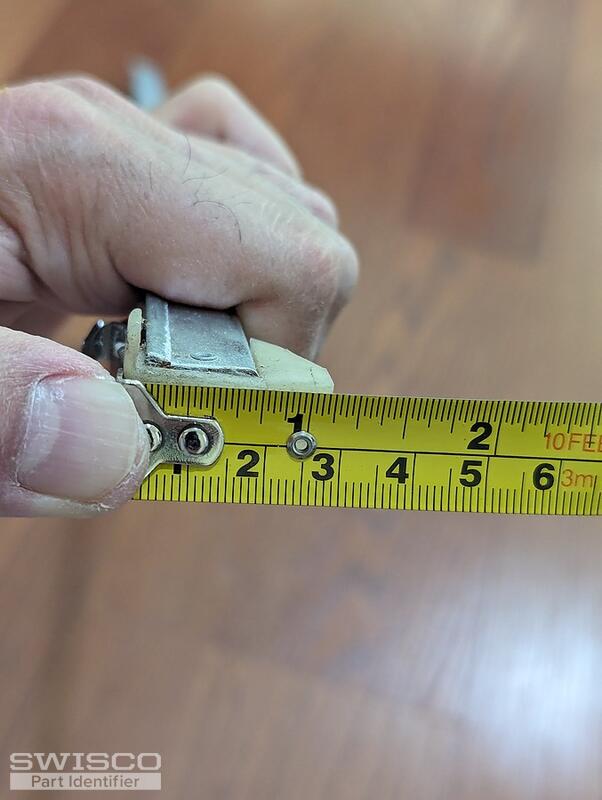

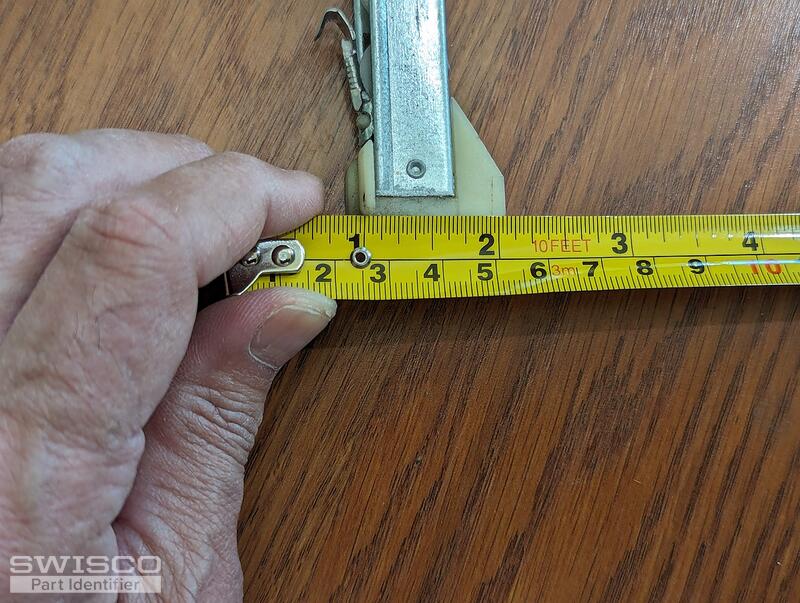

PXL_20240527_000706275 PXL_20240527_000715002 PXL_20240527_001927099 PXL_20240527_003123850
4 user uploaded images
Bob
Bob from SWISCO
May 28, 2024 8:27 am
SWISCO
EXPERT

Dimensions from pictures are not always accurate, but it appears that the shoe is over an inch. The Series 385 would be the best option in this case. Please let us know if you have any additional questions.

Home Owner from Pleasanton CA
May 28, 2024 9:45 am
I am sorry for more questions :-(
Which option should I purchase?
I did not weigh the window sash, as I didn't know that was something I should also check for. From what's written on the balancer "29 4 HW CMC 7", is it possible to determine which option I need in series 385?
Thanks
Bob
Bob from SWISCO
May 28, 2024 10:02 am
SWISCO
EXPERT

No problem!

For the 29 4 marking, you can use the 2940 stamp option that will support a  23 to 28 lb window sash. Let us know if you have any additional questions.
