Milgard Vinyl Window Blancers

A home owner from Novato Ca says:
November 1, 2021

I have 2 single hung milgard vinyl windows that need new completed balancers . They measure 5/8 thick so not sure if that falls into the 1/2 thick product line. One pair is 29 inches ( in picture ) the other pair 26 inches. 29 5 CMC GW 11 and 26 5 CW CMC 11. Need plastic clips on each end , a complete balancer. Once you can confirm part # for me i will place order.

Thanks Paul

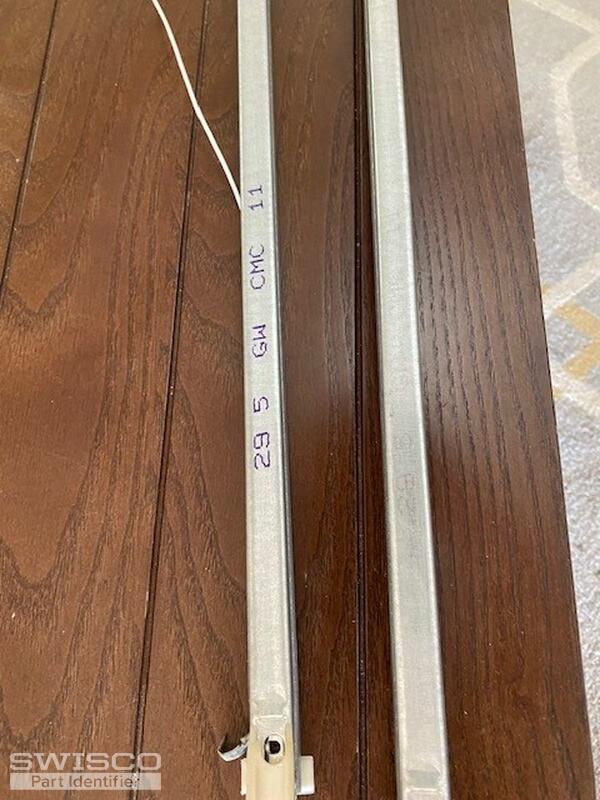

Thumbnail of the uploaded file named balances 3.jpg

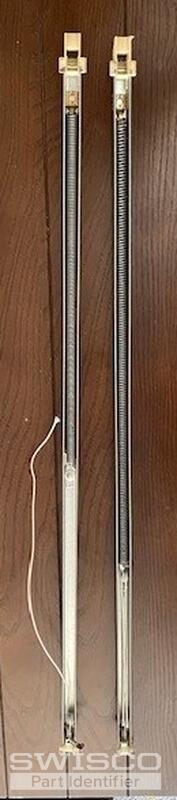

Thumbnail of the uploaded file named balances 2.jpg
Profile picture of Casey
Casey from SWISCO responded:
November 5, 2021

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The balances with a 29 5 (2950 option) strength stamp should have a 30" long metal channel and the 26 5 (2650 option) balances should measure 27".

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
