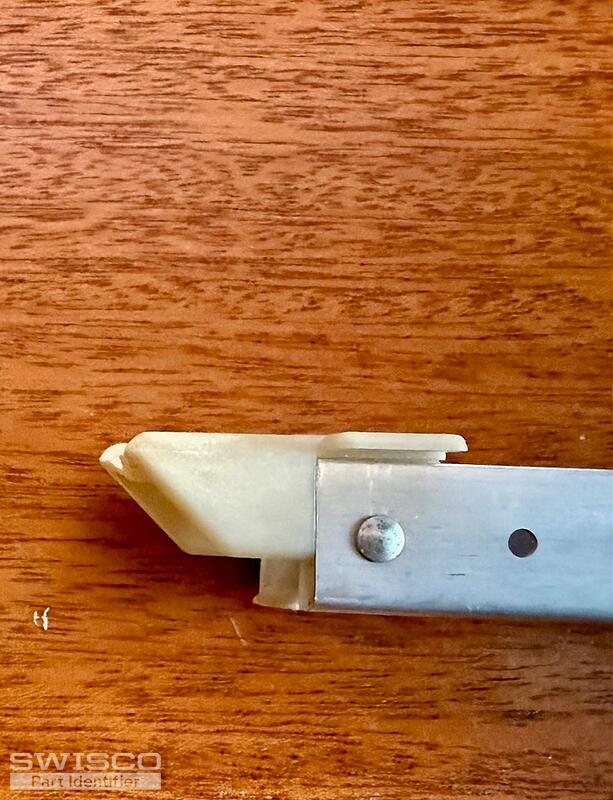

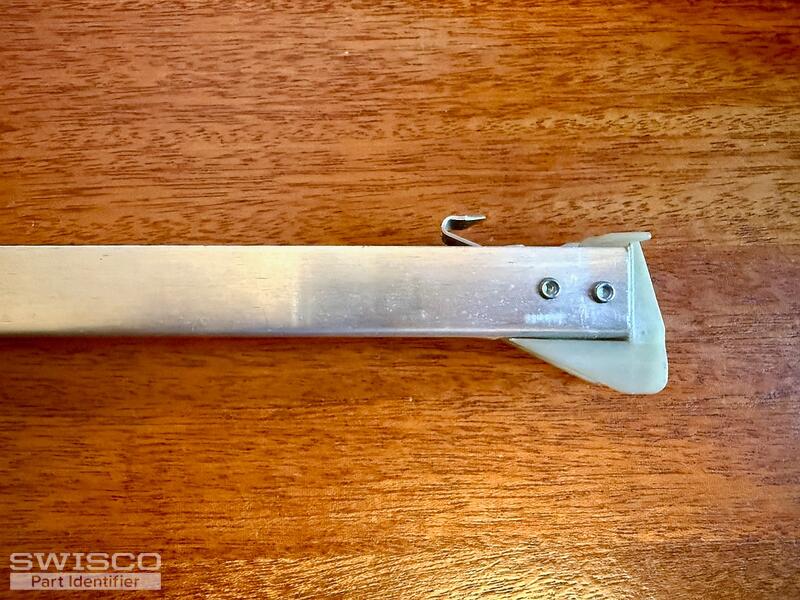

Hi, I am looking for replacement part for the channel balance. The length of the channel balance (metal section only) seems to be 15 inches. Channel width is 1/2 inch.
Also, do these channel blance only attach to the window frame with the hook, just wondering whether that is sufficient for the window or am I missing a part.
Thanks
BK
Milgard Window
Quick Learner from Camas, Wa
Jul 28, 2025 2:24 pm
5 user uploaded images
4 Replies
Tom from SWISCO
Aug 1, 2025 11:50 am
Thanks for your photos. Based on what I see here, you have either our S380-15, S385-15, or S378-15 depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Camas, Wa
Aug 7, 2025 12:02 am
Thank you for clarifying. I went and ordered the S385 after confirming shoe size.
I do have a basic q: Are the channel balances always installed the same way or direction meaning, the shoe side is always down?
thanks
BK
I do have a basic q: Are the channel balances always installed the same way or direction meaning, the shoe side is always down?
thanks
BK
Tom from SWISCO
Aug 7, 2025 10:21 am
Yes, all balances are always installed the same way. It simply wouldn't function if installed upside down. The video below explains how the Series 385 is meant to be installed.
Thanks for the order and please let me know if you had any additional questions.
