Milgard Window Balance

Home Owner from Cupertino CA

Oct 7, 2020 11:25 pm

The marking on the balance is

26 5 FR CALDWELL

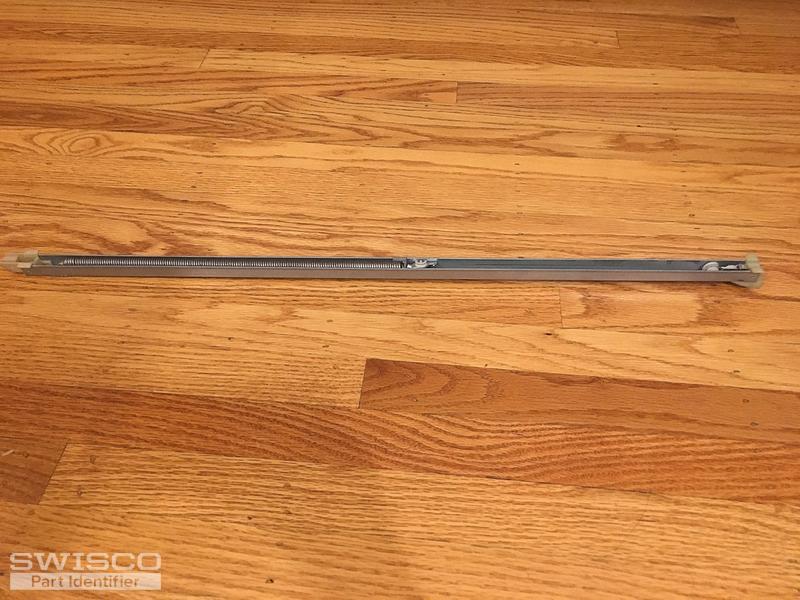

The length of the metal part (not including the shoes) is 27". The bottom shoe is 1" deep measured from the wing to the other end (measured at 90 degrees to the metal channel).

I think I have to get 380-27 27" Series. Could you please confirm that this is the correct part. Thank you.

4 user uploaded images

4 Replies

Bob from SWISCO

Oct 12, 2020 3:57 pm

Thanks for posting. I agree, an S380-27 looks promising. Just make sure the bottom nylon shoe depth, or 'heel-to-toe' measurement, is 1". If it's 1-3/32", see the Series 385 instead. You will need a stamp option of 2650.

Home Owner from Cupertino CA

Oct 12, 2020 8:17 pm

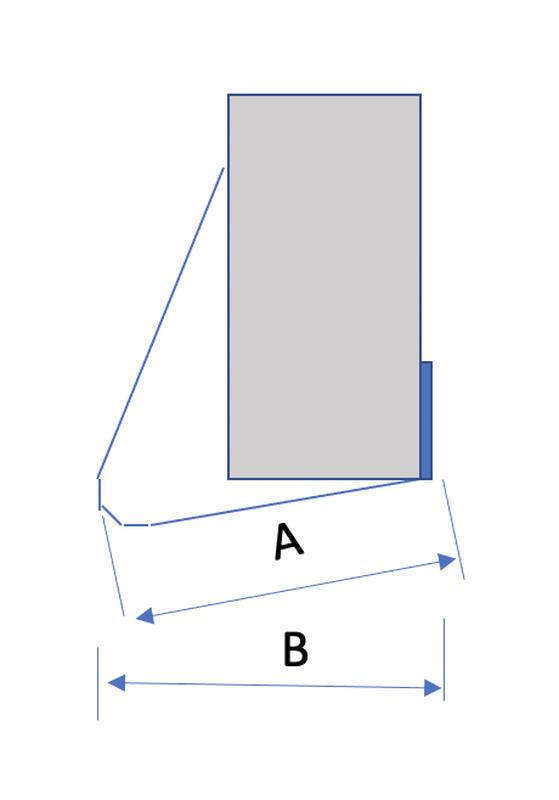

One confusion I have is how the bottom shoe must be measured. I think there are two ways to measure it. (A) Along the edge of the shoe and (B) at 90 degree to the metal part of the balance. See the attached picture. For me, (B) is 1" and (A) is a little longer, possibly closer to 1-3/32".

1 user uploaded image

Bob from SWISCO

Oct 13, 2020 10:43 am

(B) is the correct measurement. The depth is perpendicular to the bottom of the metal channel. So if the shoe is 1" deep, then the S380-27 should be what you need.

Comparison of the S378, S380 and S385 balance shoes.
