Milgard Window Balancer

Home Owner from Westminster, CO

Hello,

I need to get some replacement window balancers. They are marked: 26 5 AX CMC 1.

THanks

Chris

4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. We can help you replace these balances, but we're going to need to see pictures of the nylon attachments at either end of the balance. Confirming the length of the metal channel, not including those end attachments, would also be useful. Many thanks.

Home Owner from Westminster, CO
Sorry this has taken so long. The metal channel is 27" long.

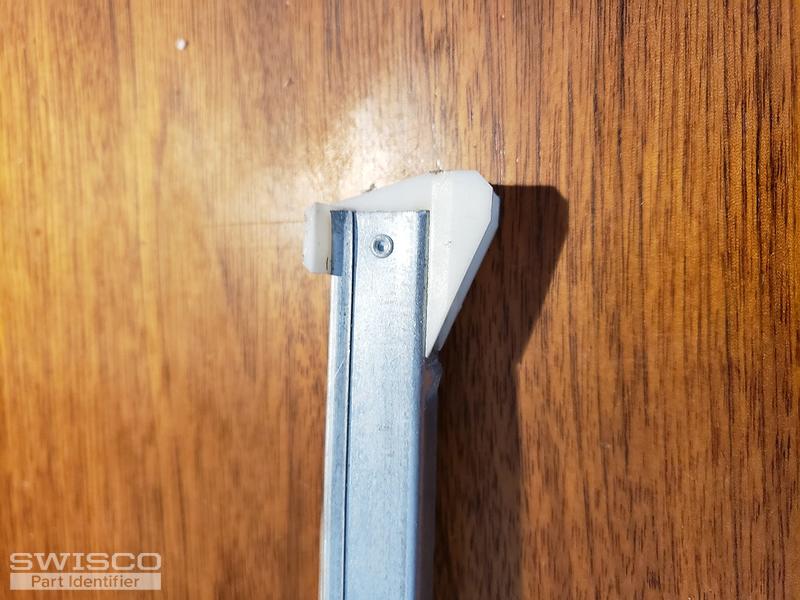

4 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

No worries, thanks for getting back to us! This looks like either a S380-27 or S385-27. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old balance to see what matches best. You will need a stamp option of 2650. Let us know if you need anything else.
