Milgard Window Balancer Strings Broken

A quick learner from Seattle, WA says:

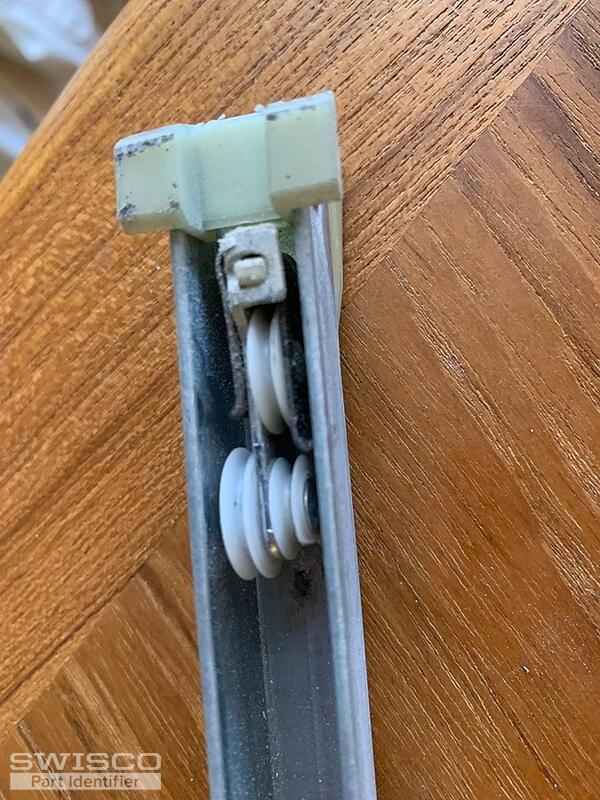

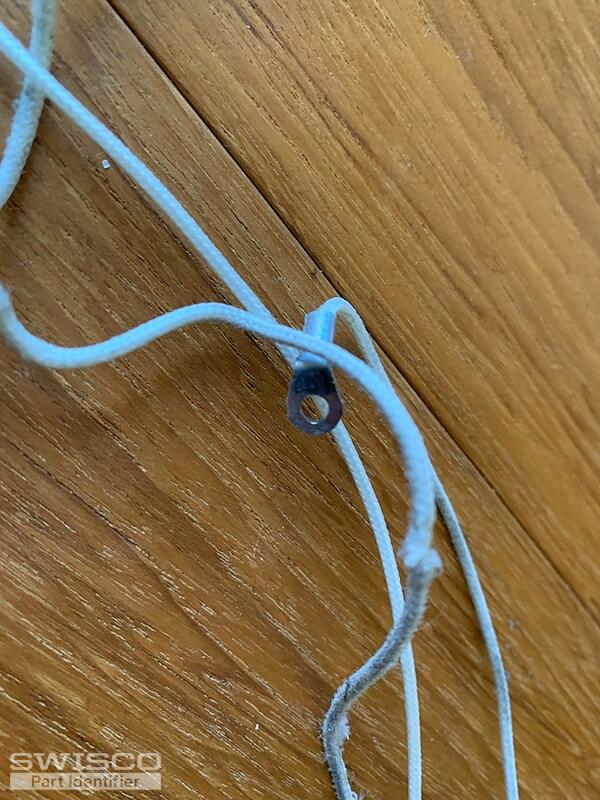

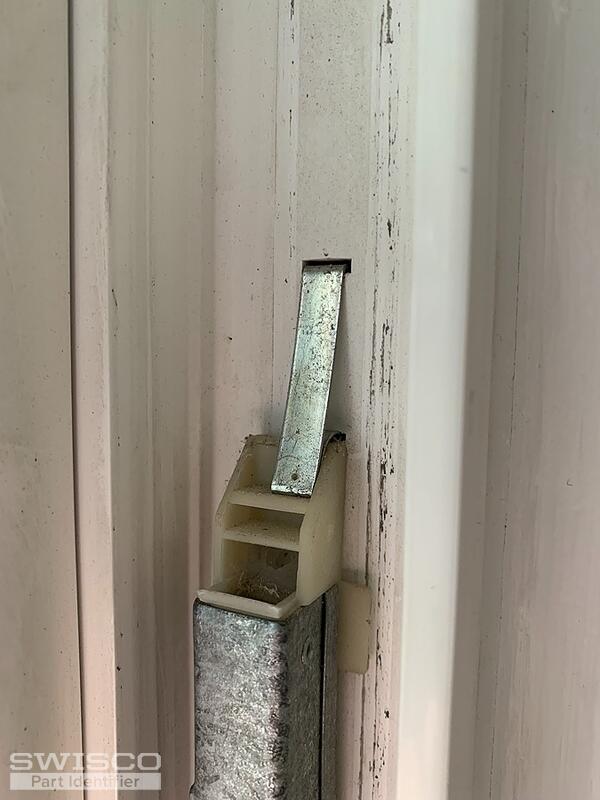

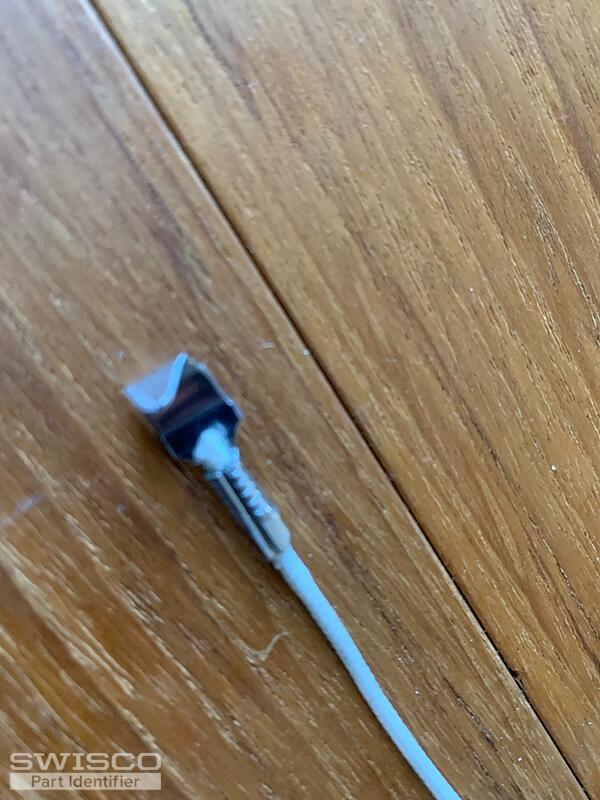

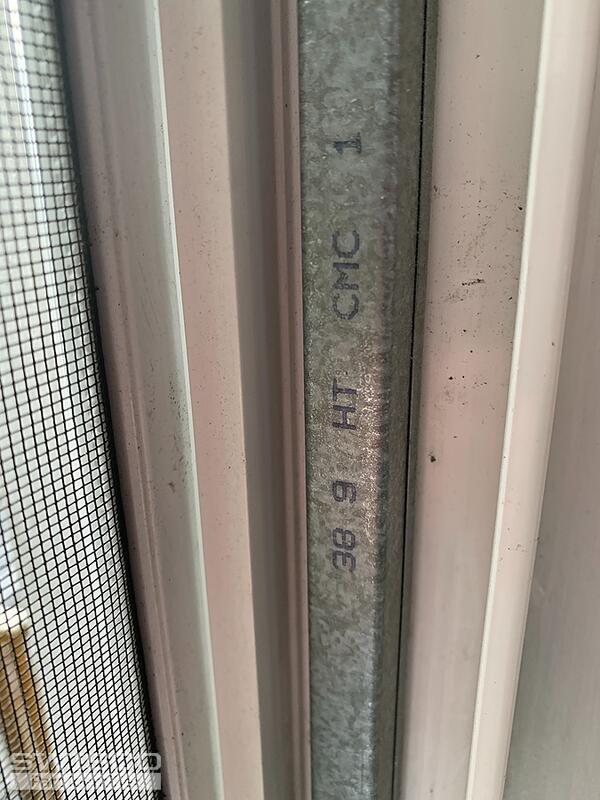

Hi, I'm looking to replace a broken Milgard window balancer in my home. The steal part of the balancer is 39 inches long. The window itself is 39inches wide and 41 inches long. The cord has snapped on the one side of the window and I am looking to replace the entire balancer. I had attached pictures

Thank
Thumbnail of the uploaded file named IMG-2403a.jpg
Thumbnail of the uploaded file named IMG-2402a.jpg
Thumbnail of the uploaded file named IMG-2401a.jpg
Thumbnail of the uploaded file named IMG-2496a.jpg
Thumbnail of the uploaded file named IMG-2500a.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-39 or S385-39 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
