Milgard Window Balence stamp 24 3 GT CMC 2 : SWISCO.com

Landlord from Seattle

Mar 9, 2023 7:07 pm

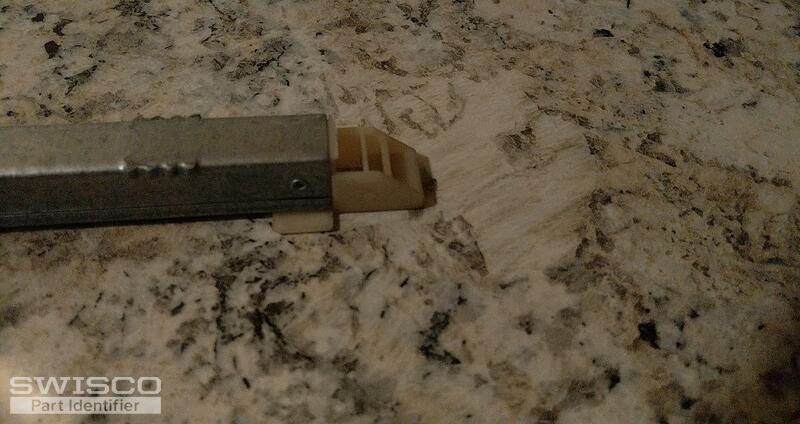

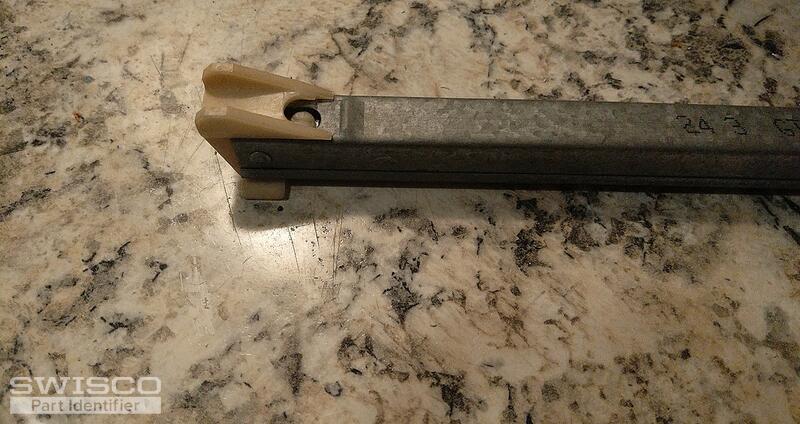

Hello, I need help replacing these parts, can you identify them and help me please? the Metal measures 25".

5 user uploaded images

4 Replies

Jasmine from SWISCO

Mar 10, 2023 11:21 am

Thanks for reaching out. Based on your winged top and bottom attachments, I recommend either our S380-25 or our S385-25 with a 2340 stamp. To determine which, you'll need to confirm the measurement for the depth of your bottom shoe. If it does not match either of the measurements below, let me know.

Comparison of the S378, S380 and S385 balance shoes.

Landlord from Seattle

Mar 10, 2023 1:20 pm

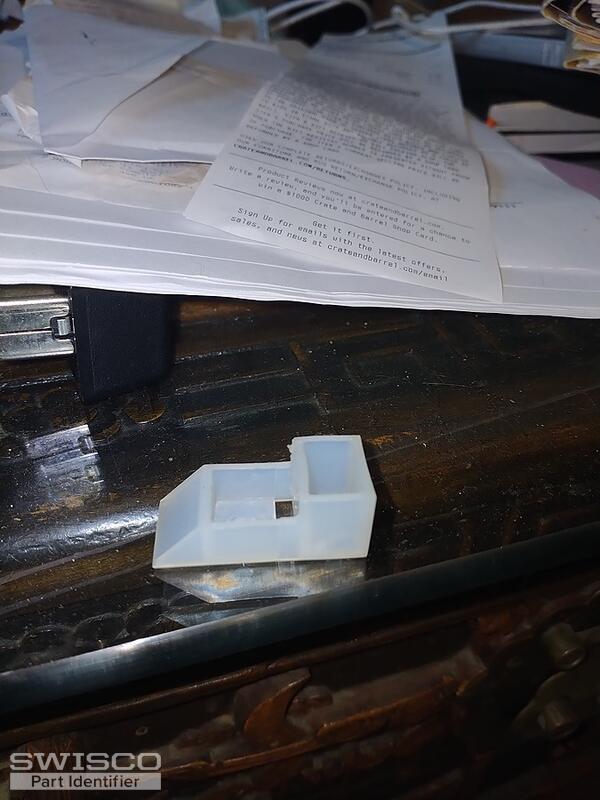

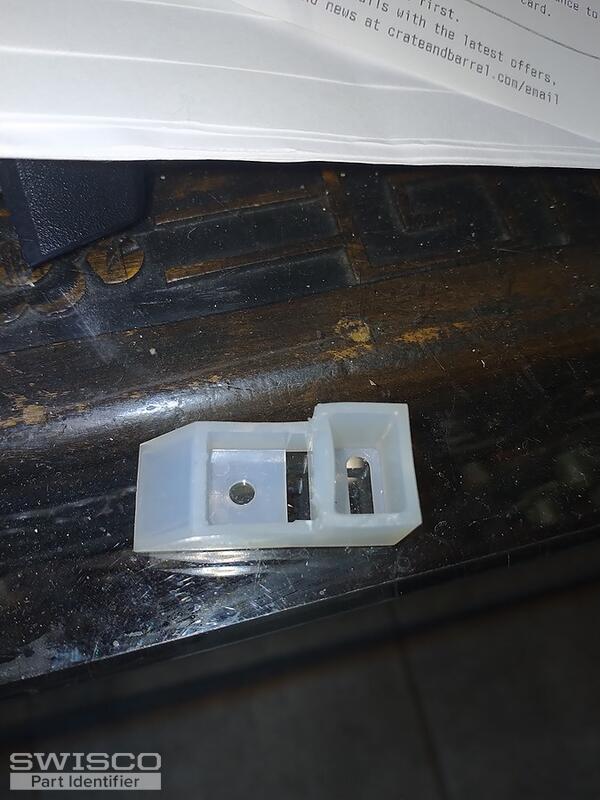

Thank you so much for this info--I need to check on the window weights. I also need the attached part--can you identify this and do you have one to sell me?

2 user uploaded images

Jasmine from SWISCO

Mar 10, 2023 4:17 pm

Thanks for reaching out. This is an older top sash guide that has been discontinued and is no longer made anymore. Our 18-009 cab be used to replace it as long as you trim the top edge down so that the top sash guide remains flush with the sash. Take a look at the diagram below and see what you think.

Detail of 18-009

Side view of 18-009
