Milgard Window Parts - Channel Balance

Question

Hello,

I need to replace Channel Balances for 5 windows in my home.

I have attached photos and measurements, as instructed by your website.

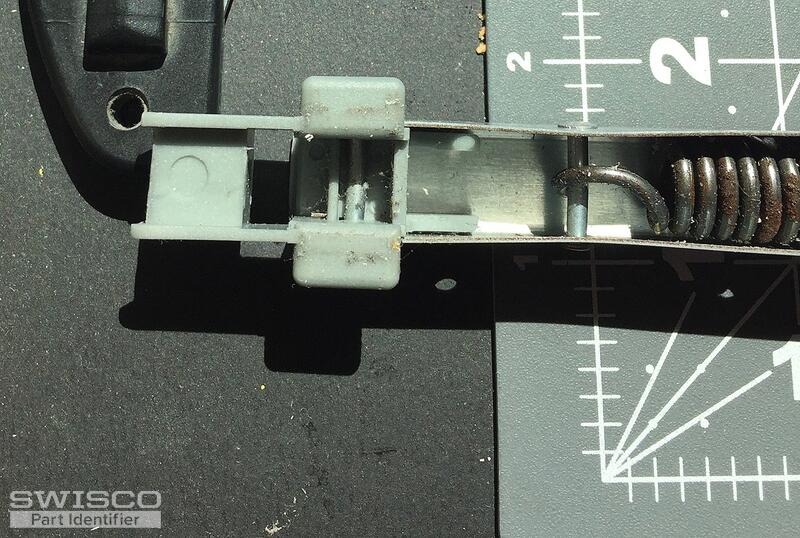

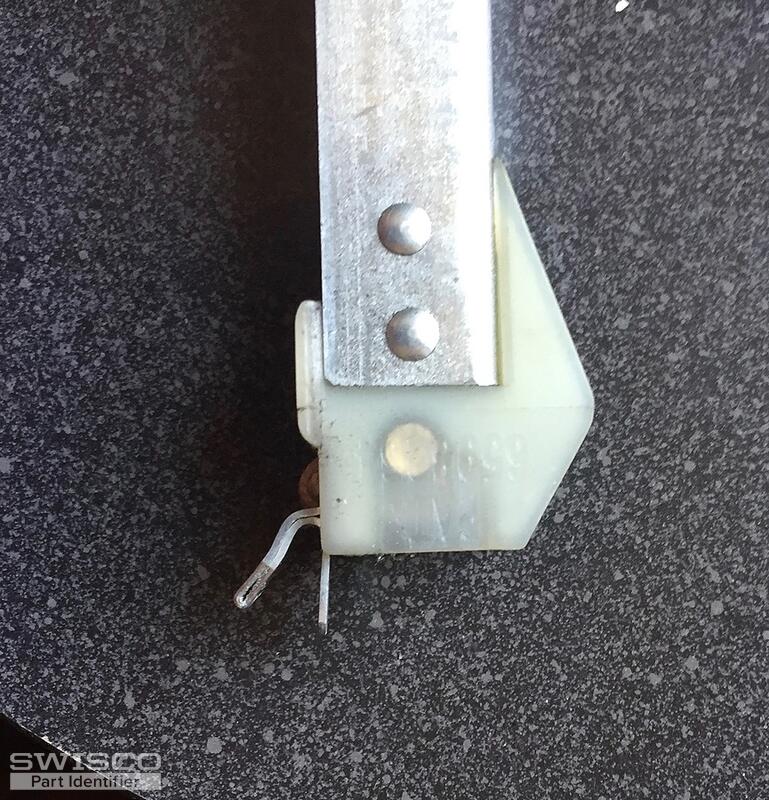

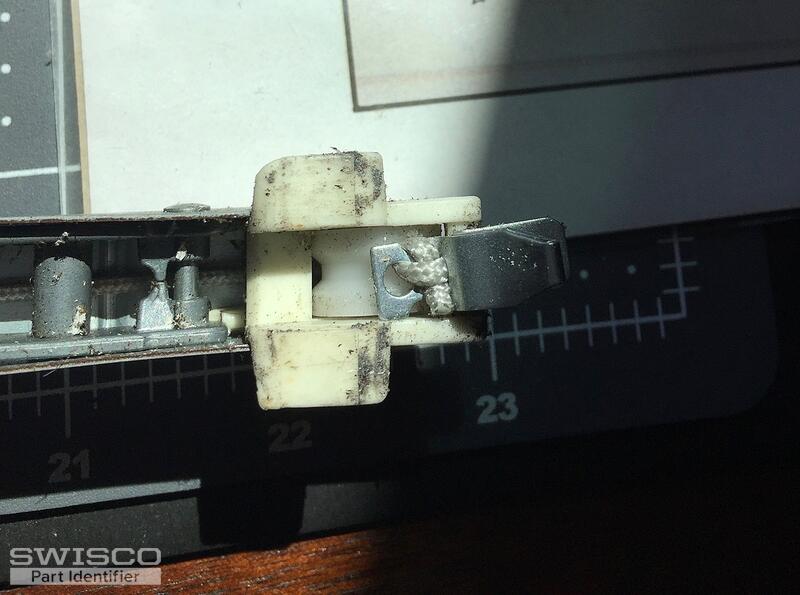

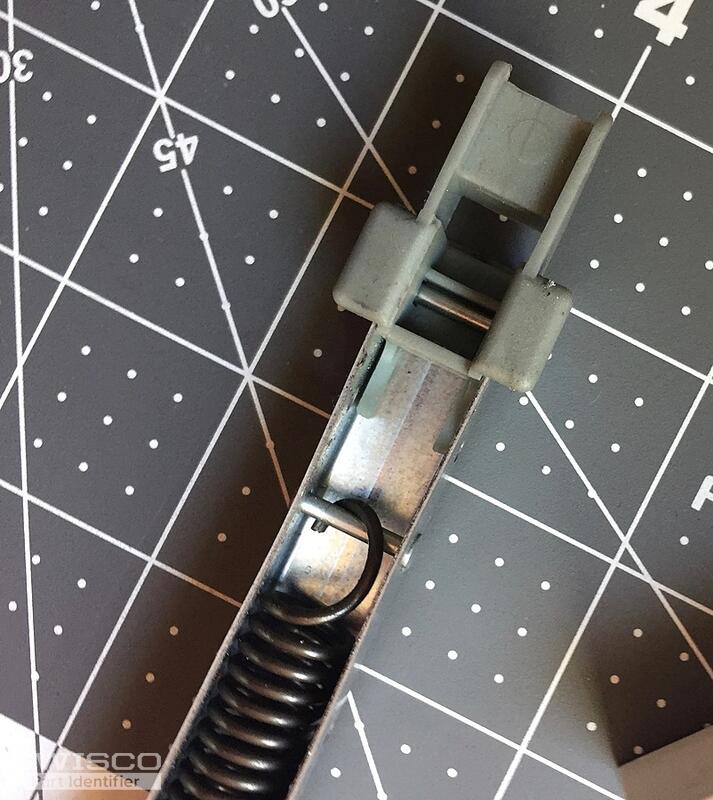

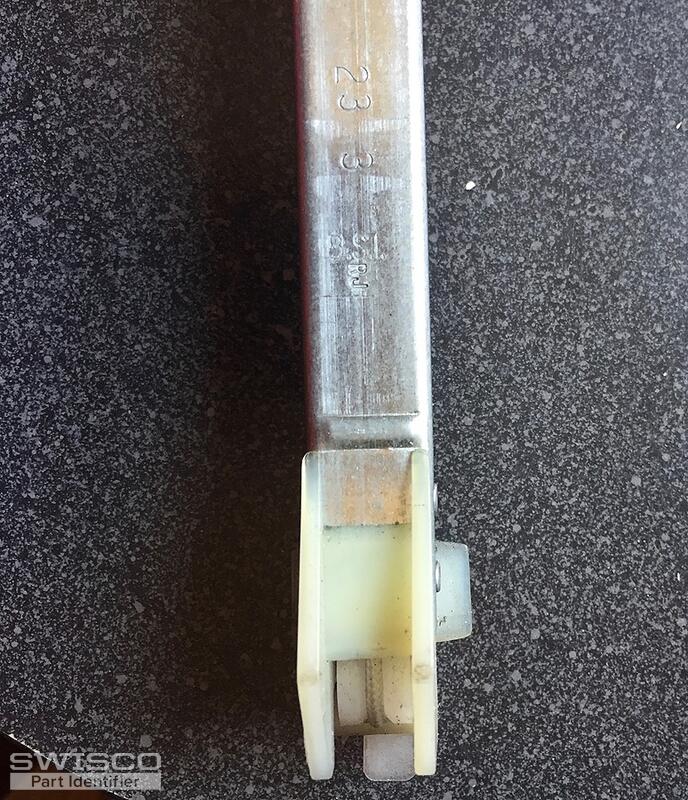

Window #1: Photos 1-5 attached.
The measurements are as follows:
Ends of Balance: Length 1-6/18"; Width: 15/16"; Height: 1";
Stamps or Markings: 23 5 RL;
Length of Aluminum: 23-1/2.
I have one window, need two replacements.

Window #2: Photos 6-8 attached.
The measurements are as follows:
Ends of Balance: Length 1-7/16"; Width: 15/16"; Height: 1-1/16";
Stamps or Markings: 31 3 BSI RJ;
Length of Aluminum: 31-12/16".
I have two windows, need four replacements.

Window #3: Photos 9-13 attached.
The measurements are as follows:
Ends of Balance: Length 1-7/16"; Width: 14/16"; Height: 1-1/16";
Stamps or Markings: 23 3 BSI RJ;
Length of Aluminum: 23-11/16".
I have two windows, need four replacements.

Please let me know cost for these items, shipping and handling, payment, etc.

Tom · Accepted Answer

Thanks for posting. I'm afraid we only received five images. Between the three windows you have, can you confirm that the nylon attachments and the metal hook at the end of the cord are identical? We don't necessarily need to see all of them as long as you can confirm that other than size and stamp, they're exactly the same as the balance in your current photos.

If so, please let me know how many of each balance (23-5, 31-3, and 23-3) you need. Once I know that, I'll email you an order link and price quote for each in the quantities requested.
