Milgard Window weather stripping

Question

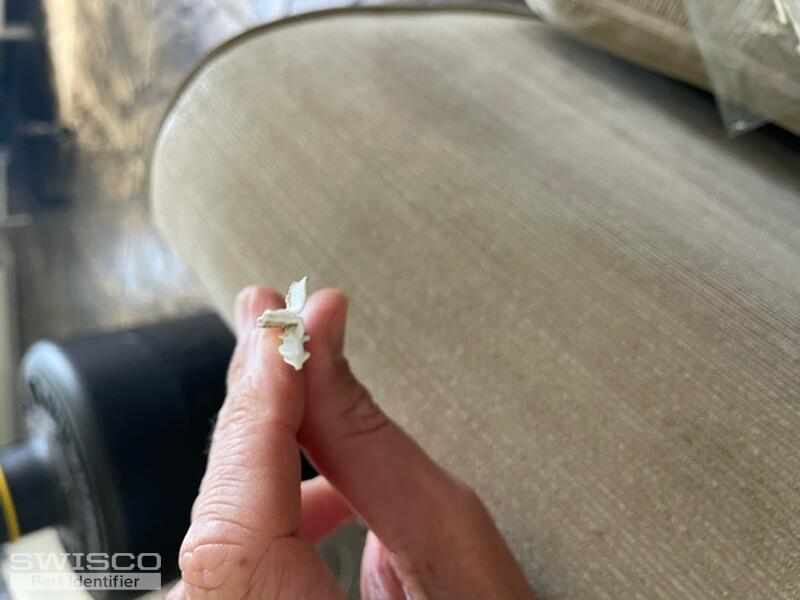

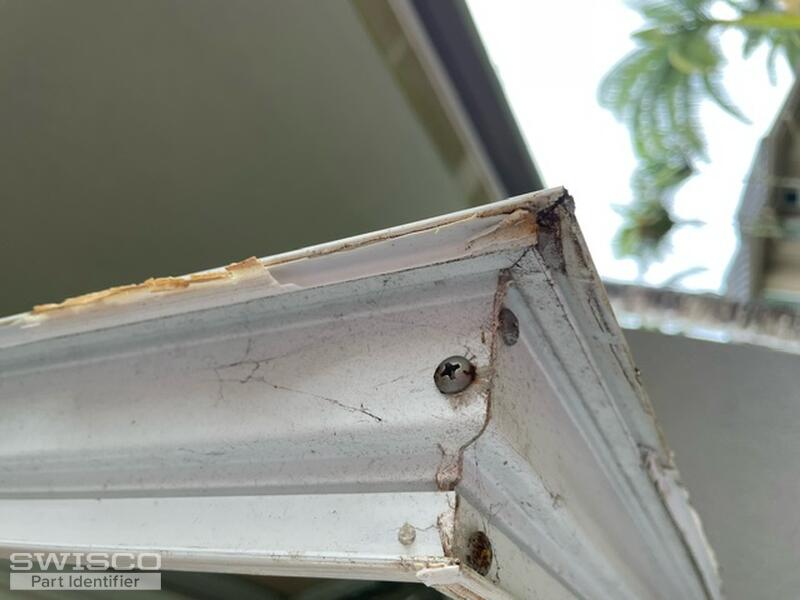

Hello, I'm trying to get some replacement weather stripping for a whole house of windows. I dug some out of one of them and attached the pictures. The kerf is about 1/4" and the flange coming out is about 1/4" and the return is about 1/8"

Tom · Accepted Answer

Thanks for reaching out to us. We may have a match for this weatherstripping, but I'm sorry to say that it's a little too damaged for me to accurately ID.

Two possible options that come to mind are our 58-053, or perhaps the 58-055 with an angled base. These are commonly used on casement windows, so if that's what you're repairing then these may be an option. Otherwise you can review our dimensions below to see how well they compare to the original sample.

Profile drawing of the 58-053 bubble seal.

Profile view of 58-055
